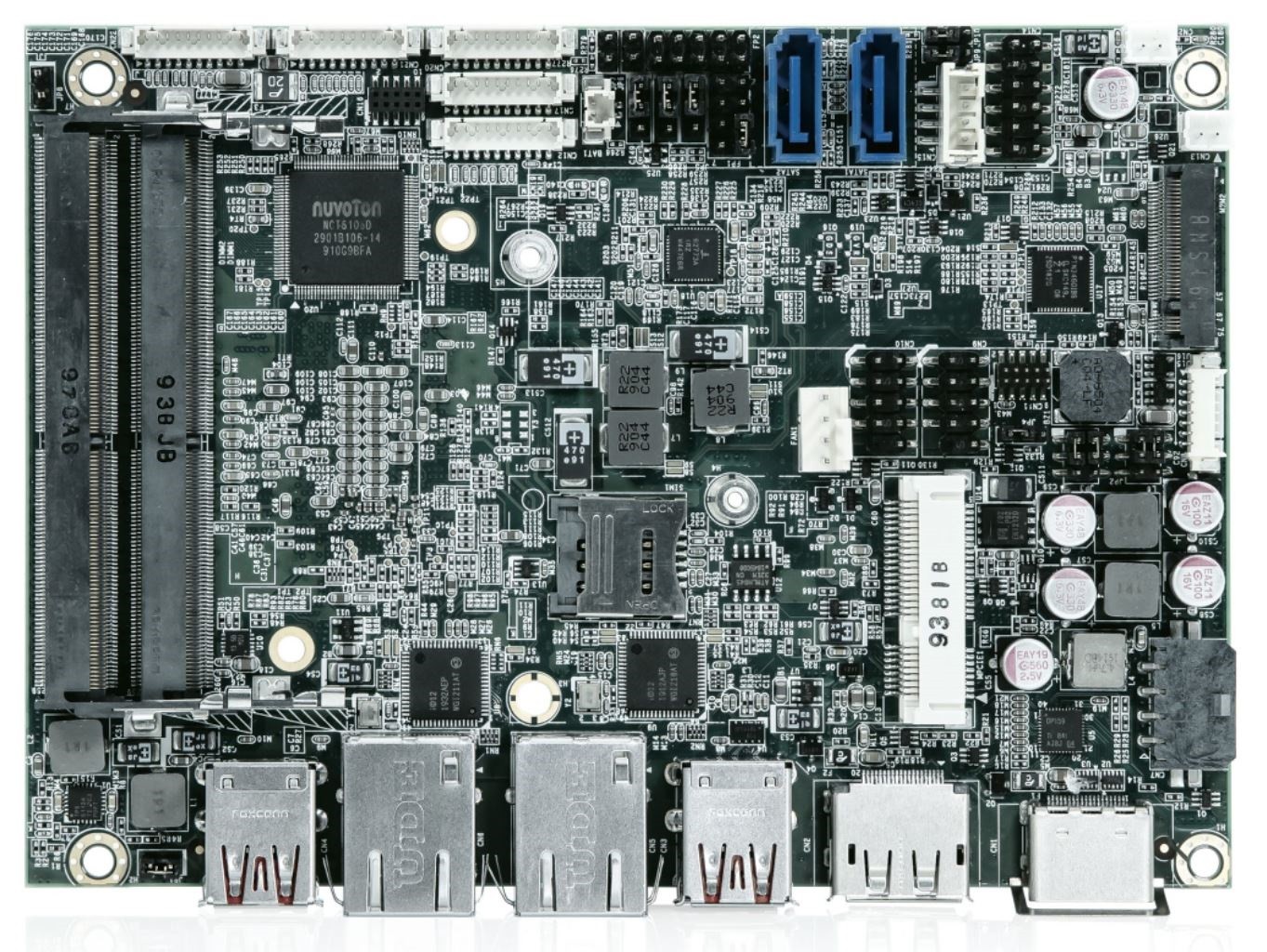

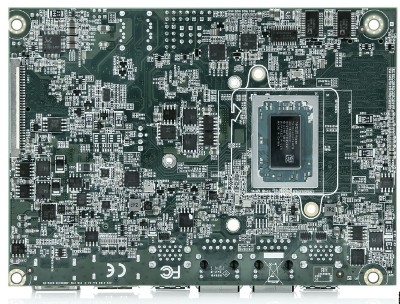

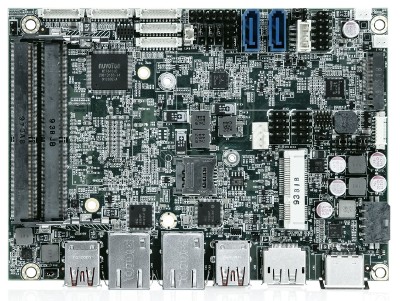

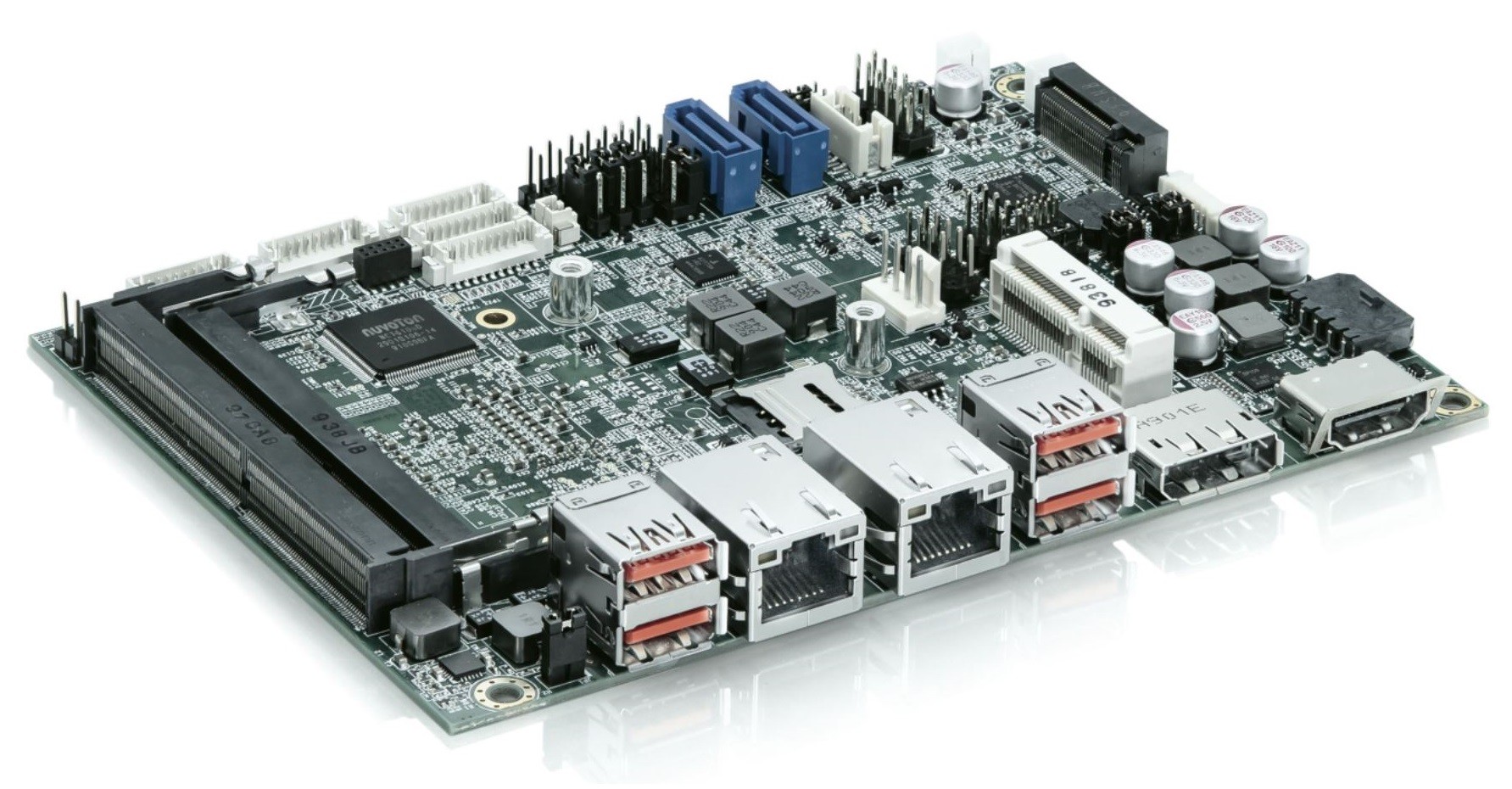

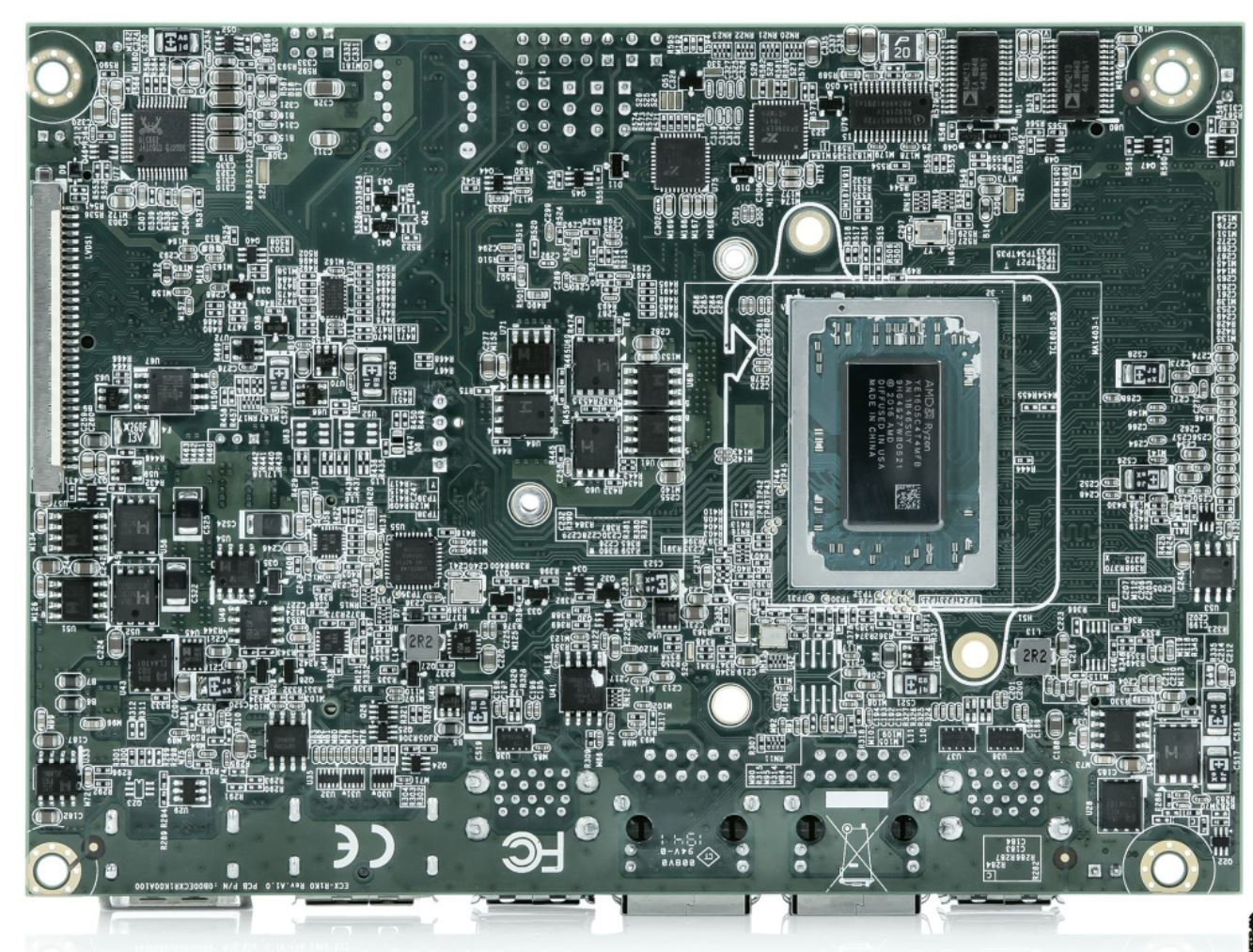

Kontron SBC-VR1000

SBC-VR1000-R1505G, SBC-VR1000-R1606G, SBC-VR1000-V1202B, SBC-VR1000-V1605B

3.5" Mainboards

PRODUCT FEATURES

// 3.5" Industrial Mainboards
// [AMD Ryzen R1305G | AMD Ryzen R1505G | AMD Ryzen R1606G | AMD Ryzen V1202B | AMD Ryzen V1605B]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Kontron SBC-VR1000

General information
SKU / Item NumberSBC-VR1000SBC-VR1000-R1505G, 43016-0000-24-2, SBC-VR1000-R1606G, 43016-0000-26-2, SBC-VR1000-V1202B, 43016-0000-23-2, SBC-VR1000-V1605B, 43016-0000-20-4, SBC-VR1000-R1305G, 3.5"-SBC-VR1000-8-R1305G
Product Basic Data
ManufacturerKontron
System
ProcessorVertical SegmentEmbedded
SeriesAMD R-Series (Bulldozer)
NumberAMD Ryzen R1305G, AMD Ryzen R1505G, AMD Ryzen R1606G, AMD Ryzen V1202B, AMD Ryzen V1605B
CPU cores2 Pce, 4 Pce
Threads2 Pce, 4 Pce, 8 Pce
SocketBGA 1140 (FP5)
Base frequency1,5 GHz, 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz
Max Turbo Frequency2,8 GHz, 3,2 GHz, 3,3 GHz, 3,5 GHz, 3,6 GHz
Cache1 MB, 2 MB, 4 MB
Thermal Design Power (TDP)15 W
ChipsetSoC (System on a Chip)
MemoryStructure260-pin DDR4 SO-DIMM
Slots2 Pce
Maximum expansion32 GB
ECC (Error-Correcting Code)is supported
BIOSAMI UEFI 64 Mbit SPI
I/O controllerController 1I/O controllerNuvoton NCT6106D
Graphics
ProcessorAMD Radeon Vega 3, AMD Radeon Vega 8
Screens (Multi-display)3 displays
HDMIMaximum resolution3840 x 2160 at 60 Hz
Version2.0
DisplayPortMaximum resolution4096 x 2160 at 60 Hz
LVDS (Low Voltage Differential Signaling)Maximum resolution1920 x 1200 at 60 Hz
Bits24-bit
BridgeNXP PTN3460
Extension
Mini-PCIeHalf building depthQuantity1 Pce
USB supportYes
PCIe Interfaces1x Mini-PCIe
M.2Slot 1Key IDM
InterfaceNVMe, PCIe ×4
Supported dimensions2280
M.2 Key IDsM
SIMQuantity1 Pce
Form Factor (Slot)Micro SIM
Audio
ChipsetRealtek ALC888S-VD2-GR
Network
G-LANControllerChipsetIntel I210AT PCIe (10/100/1000 Mbps)
Quantity1 Pce
ControllerChipsetIntel I211AT PCIe (10/100/1000 Mbps)
Quantity1 Pce
Network2x G-LAN

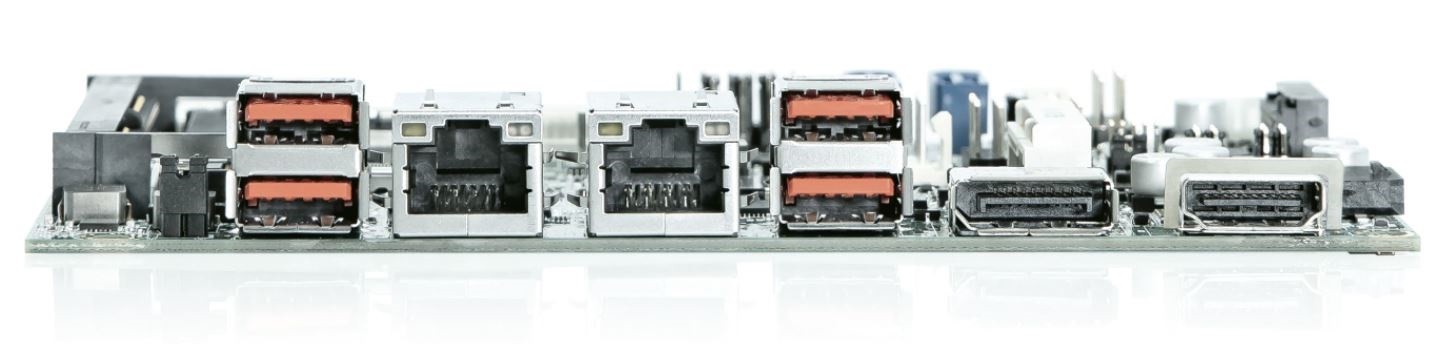

Externe I/O (Rear Panel)
DisplayHDMI1 Pce
DisplayPort1 Pce
EthernetRJ-452 Pce
USBUSB 2.02 Pce, -
USB 3.2 (Gen 2)2 Pce, 4 Pce
Internal I/O
USBUSB 2.0Ports (2.00 mm pitch)4 Pce
SerialRS-232Ports (2.00 mm pitch)2 Pce
RS-232 / 422 / 485Ports (2.00 mm pitch)2 Pce
DisplayLVDS (Low Voltage Differential Signaling)Dual channel
LVDS connectors1 Pce
Digital I/OBits8-bit1 Pce
AudioConnector2.00 mm pitch
Line-in1 Pce
Line Out1 Pce
Mic-In1 Pce
Verstärker2 Pce
Serial ATASATA R3.0 (6 Gbit/s, 600 MB/s)2 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)Infineon SLB 9665
Power Supply
Typ (Input)DCRange12V
Connector4-pin connector (vertical)
Power supply - InputDC: 12V
OS / Software
WindowsWindows 10 (64-bit)is supported
Supported OSWindows
Mechanical / Environment
TemperatureOperation0° to 60°C
Storage-20° to 80°C
Relative humidityOperation0 to 90%, non-condensing
DimensionsForm factor3.5"
Width146 mm
Deep105 mm
Certificates / Conformities
CEYes
FCCClass BYes
RoHS compliantYes
