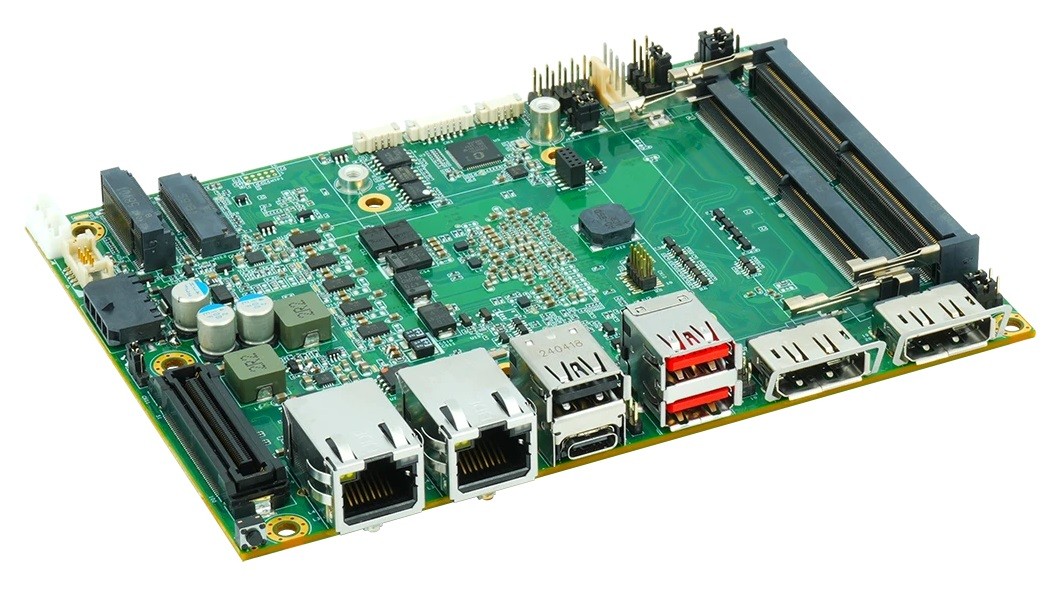

Kontron SBC-PTL

SBC-PTL-322, SBC-PTL-325, SBC-PTL-332, SBC-PTL-335, SBC-PTL-336H, SBC-PTL-338H, SBC-PTL-355, SBC-PTL-356H, SBC-PTL-365, SBC-PTL-366H, SBC-PTL-386H

3.5" Mainboards

PRODUCT FEATURES

// 3.5" Industrial Mainboards
// [Intel Core Ultra 5 322 | Intel Core Ultra 5 325 | Intel Core Ultra 5 332 | Intel Core Ultra 5 335 | Intel Core Ultra 5 336H | Intel Core Ultra 5 338H | Intel Core Ultra 7 355 | Intel Core Ultra 7 356H | Intel Core Ultra 7 365 | Intel Core Ultra 7 366H | Intel Core Ultra 9 386H]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Kontron SBC-PTL

General information
SKU / Item NumberSBC-PTLSBC-PTL-386H, SBC-PTL-322, SBC-PTL-325, SBC-PTL-332, SBC-PTL-335, SBC-PTL-336H, SBC-PTL-338H, SBC-PTL-355, SBC-PTL-356H, SBC-PTL-365, SBC-PTL-366H
Product Basic Data
ManufacturerKontron
System
ProcessorSeriesIntel Panther Lake
NumberIntel Core Ultra 5 322, Intel Core Ultra 5 325, Intel Core Ultra 5 332, Intel Core Ultra 5 335, Intel Core Ultra 5 336H, Intel Core Ultra 5 338H, Intel Core Ultra 7 355, Intel Core Ultra 7 356H, Intel Core Ultra 7 365, Intel Core Ultra 7 366H, Intel Core Ultra 9 386H
CPU cores6 Pce, 8 Pce, 12 Pce, 16 Pce
Threads6 Pce, 8 Pce, 12 Pce, 16 Pce
SocketBGA 2540
Performance core base clock frequency1,9 GHz, 2 GHz, 2,1 GHz, 2,2 GHz, 2,3 GHz, 2,4 GHz, 2,5 GHz
Performance Core Max Turbo Frequency4,4 GHz, 4,5 GHz, 4,6 GHz, 4,7 GHz, 4,8 GHz, 4,9 GHz
Efficient-core base clock frequency1,5 GHz, 1,6 GHz, 1,7 GHz, 1,8 GHz, -
Efficient-core Max Turbo Frequency3,5 GHz, 3,6 GHz, 3,7 GHz, 3,8 GHz, 3,9 GHz, -
Cache12 MB, 18 MB
Basic power consumption of the processor25 W
Maximum Turbo Power Consumption55 W, 65 W
ChipsetSoC (System on a Chip)
MemoryStructure262-pin SO-DIMM DDR5
Memory TypeDDR5
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rate7200 MT/s
Slots2 Pce
Maximum expansion128 GB
BIOSAMI UEFI BIOS
Graphics
ProcessorIntel Arc B370, Intel Graphics
Screens (Multi-display)4 displays
LVDS (Low Voltage Differential Signaling)Bits24-bit
BridgeChrontel CH7513A-BF
Extension
M.2Slot 1Key IDB
Interface4G/LTE, PCIe ×2, UIM, USB 2.0
Supported dimensions2280, 3042, 3052
Slot 2Key IDE
InterfacePCIe ×1 (Gen 3), USB 2.0
Supported dimensions2230
Slot 3Key IDM
InterfacePCIe ×4
Supported dimensions2280
M.2 Key IDsB, E, M
StorageM.2
B2BDDI, GSPI, I2C, MIPI-CSI, PCIe, UART
Audio
ChipsetTSI 92HD91B
Network
G-LANControllerQuantity2 Pce
Network2x G-LAN

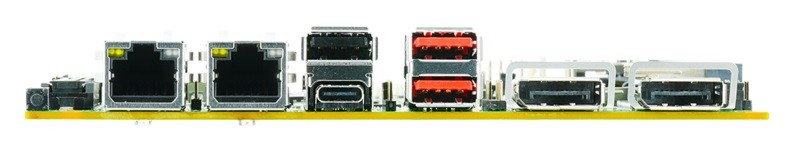

Externe I/O (Rear Panel)
DisplayDisplayPort2 Pce
DP USB-C1 Pce
EthernetRJ-452 Pce
USBUSB 2.01 Pce
USB 3.2 (Gen 2)2 Pce
USB v3.2 (Gen 2, Type C)1 Pce
Internal I/O
USBUSB 2.0Ports (2.00 mm pitch)1 Pce
SerialRS-232 / 422 / 485Ports (2.00 mm pitch)2 Pce
Digital I/OBits8-bit1 Pce
CAN busVersion 2.0B (with isolation)2 Pce
AudioConnector2.00 mm pitch
Line-in1 Pce
Line Out1 Pce
Mic-In1 Pce
S/PDIFavailable
Verstärker1 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)v2.0
Power Supply
Typ (Input)DCWide RangeYes
Range9 to 36V
Connector3-pin terminal connector
Power supply - InputDC: 9~36V
Mechanical / Environment
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factor3.5"
Width146 mm
Deep105 mm
ControlsPower1 Pce
Status indicatorsPower1 Pce
Certificates / Conformities
CEYes
FCCClass BYes
Additional certificates / compliance approvalsUKCA
RoHS compliantYes
