3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Atom x6211E | Intel Atom x6212RE | Intel Atom x6425RE | Intel Celeron J6413]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x2
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

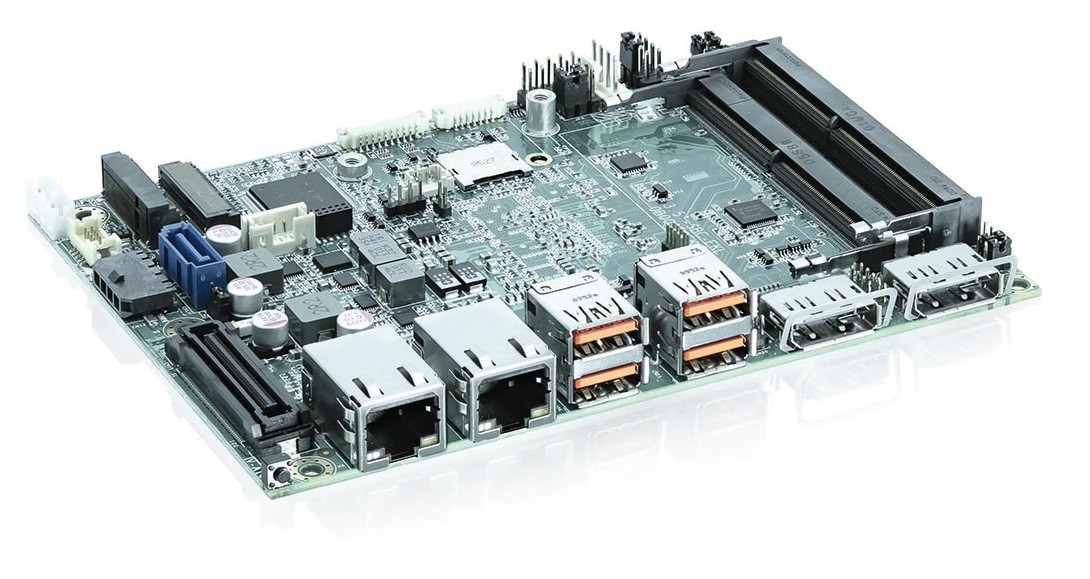

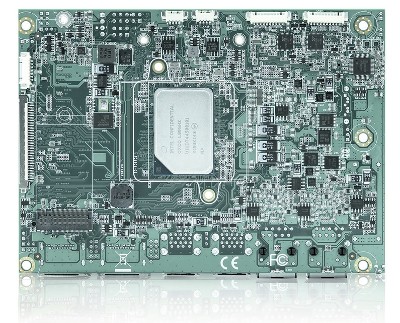

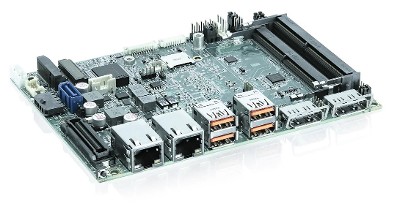

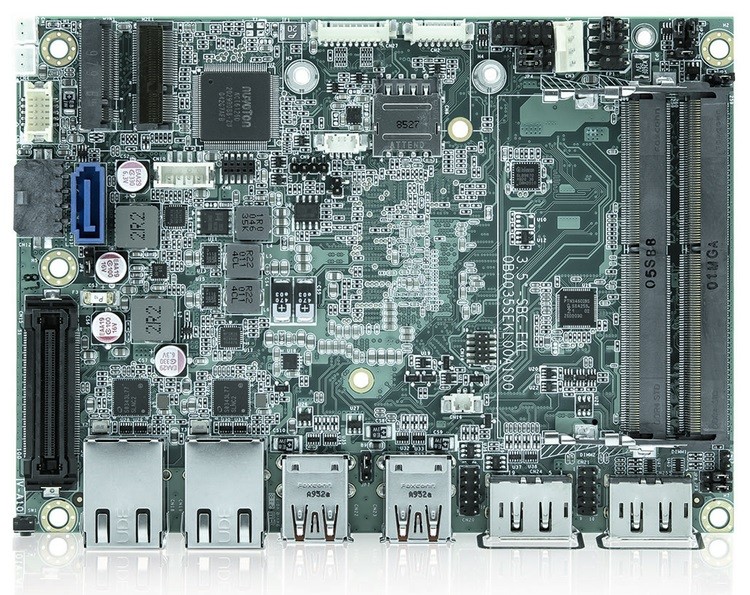

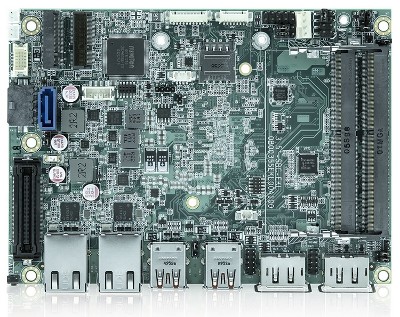

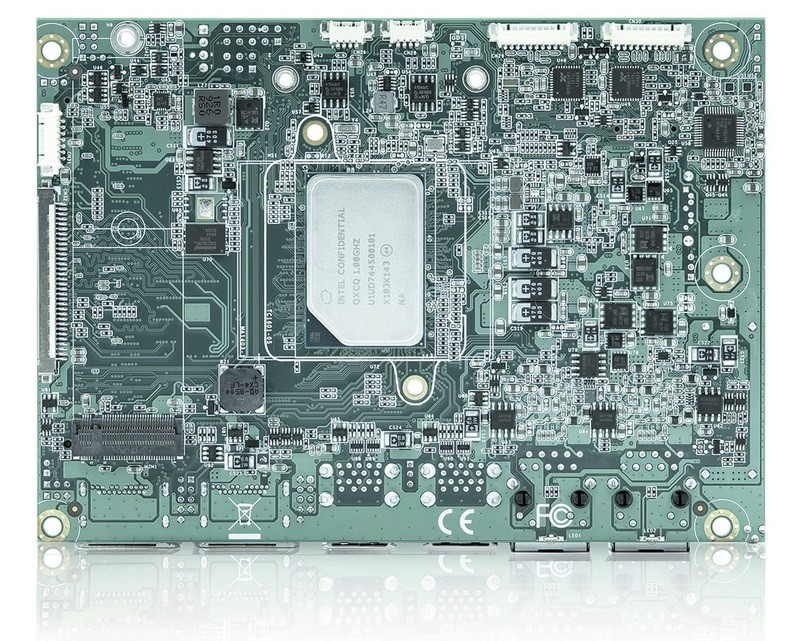

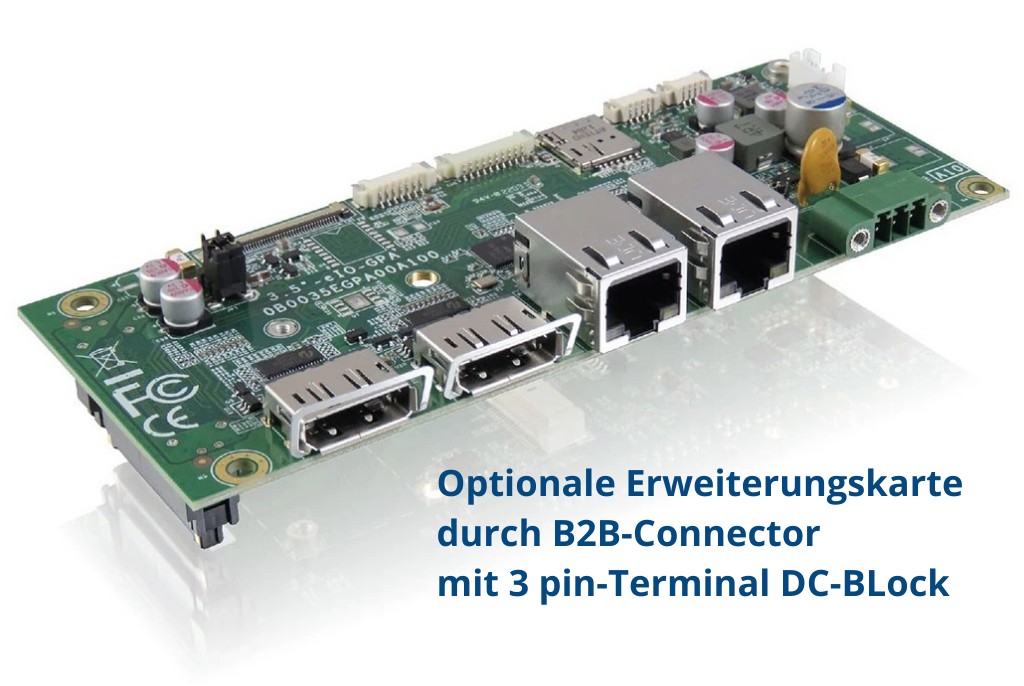

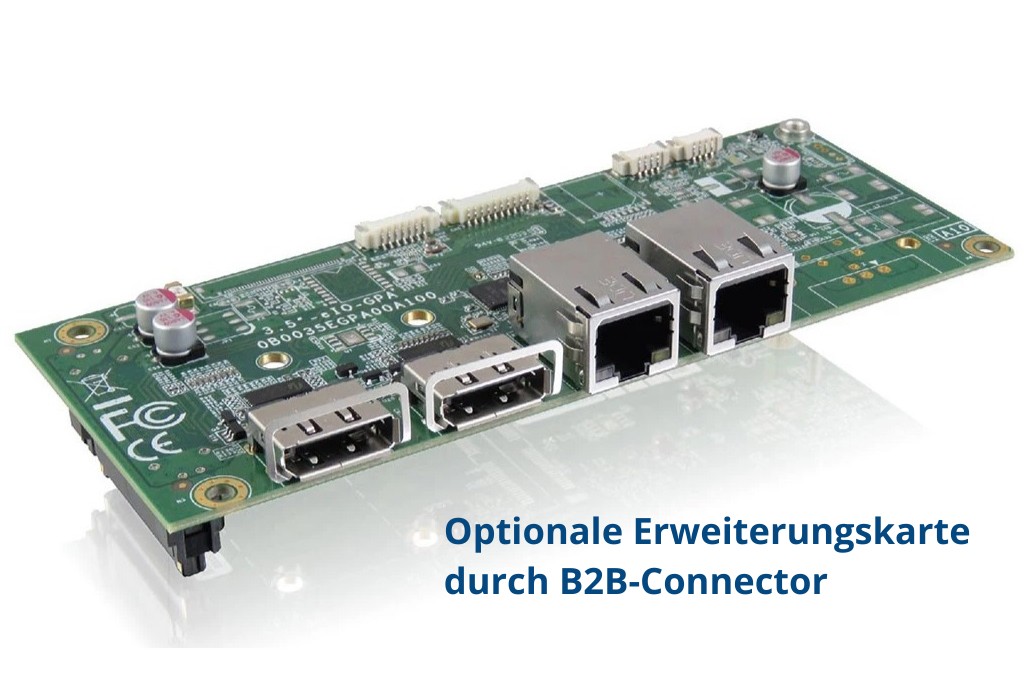

Basic Module: Kontron SBC-EKL
| General information | ||||
| SKU / Item Number | SBC-EKL | |||
| Product Basic Data | ||||
| Manufacturer | Kontron | |||
| Product ID | 43018-0000-12-2, 43018-0000-13-2, 43018-0000-18-4, 43018-0000-19-4 | |||
| System | ||||
| Processor | Vertical Segment | Industrial | ||
| Series | Intel Elkhart Lake | |||
| Number | Intel Atom x6211E, Intel Atom x6212RE, Intel Atom x6425RE, Intel Celeron J6413 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1493 | |||
| Base frequency | 1,2 GHz, 1,3 GHz, 1,8 GHz, 1,9 GHz | |||
| Max Turbo Frequency | 3 GHz, - | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 6 W, 10 W, 12 W | |||
| Lithography | 10 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| Frequency | 3200 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| PCIe x2 | x2 Signal | 2 Pce | ||
| PCIe Interfaces | 2x PCIe x2 | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2242, 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | I²C, PCIe ×1 (Gen 3), SDIO, UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipset | TSI 92HD73C | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 1 Pce | ||
| CAN bus | Version 2.0B (Interface) | 2 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9670 VQ 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Storage | -20° to 80°C, -55°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 105 mm | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | CSA C22.2 No. 60601-1, UKCA | |||
| RoHS compliant | Yes | |||
