3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Celeron 3765U | Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

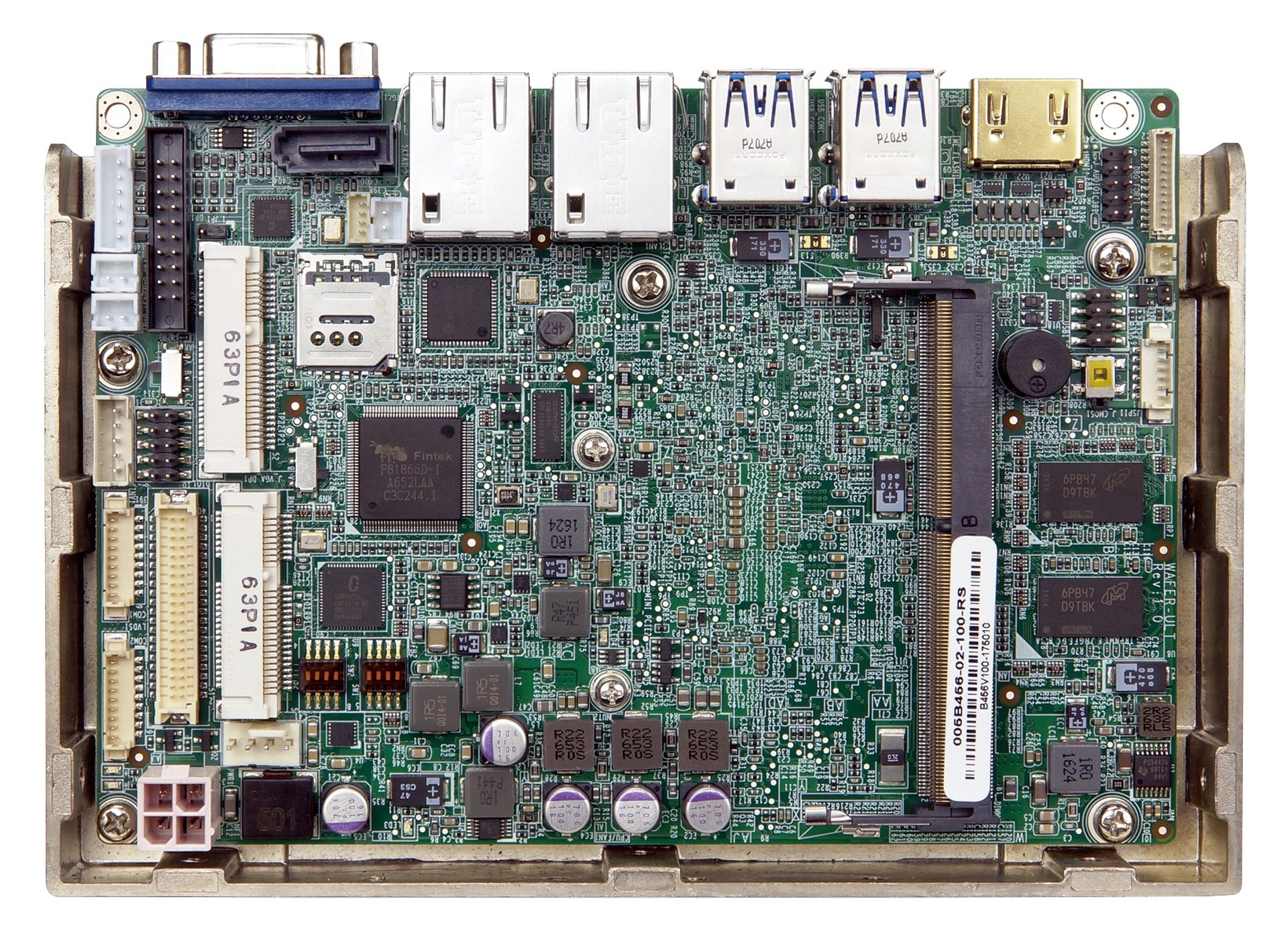

Basic Module: IEI WAFER-ULT3
| General information | ||||
| SKU / Item Number | WAFER-ULT3 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Skylake | ||
| Number | Intel Celeron 3765U, Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 1,6 GHz, 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
| Max Turbo Frequency | 3 GHz, 3,4 GHz, - | |||
| Cache | 2 MB, 3 MB, 4 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM data transfer rate | 2133 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI BIOS | |||
| Graphics | ||||
| Processor | Intel HD Graphics 510, Intel HD Graphics 520 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Supports High Definition Audio interface | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

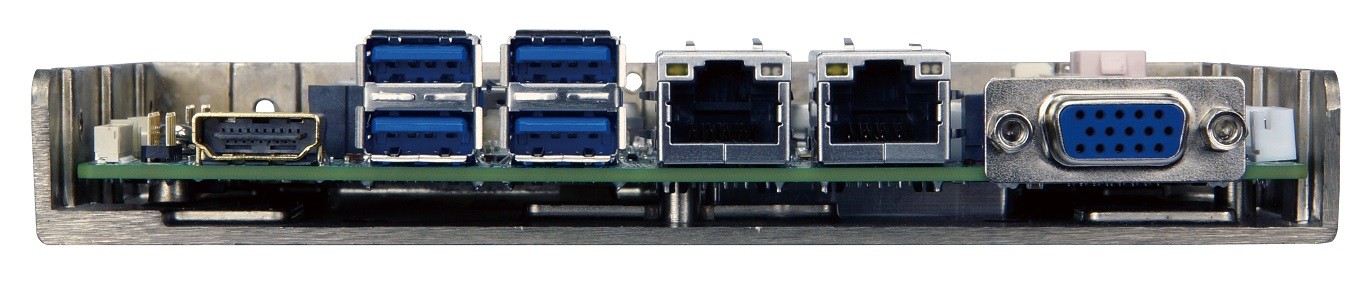

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 250 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
