3.5" Mainboards
// 3.5" Industrial Mainboards
// Rockchip RK3568
// [2 GB | 4 GB]
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 3 x USB (internal)
// [16 GB | 32 GB] eMMC
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

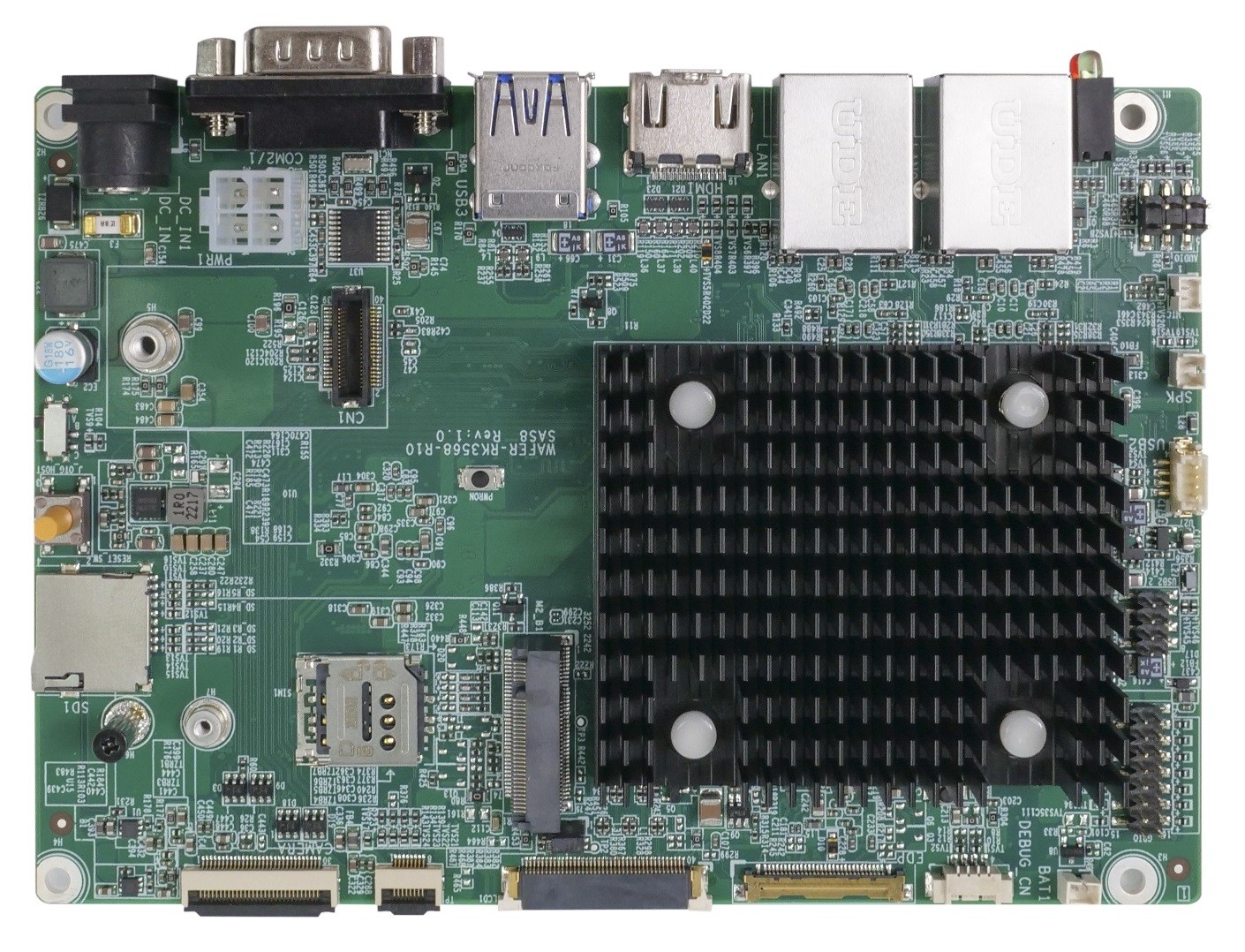

Basic Module: IEI WAFER-RK3568
| General information | ||||
| SKU / Item Number | WAFER-RK3568 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | ARM Cortex-A55 | ||
| Number | Rockchip RK3568 | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 8 GB | |||
| Internal memory | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB, 32 GB | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3042, 3052 | |||
| M.2 Key IDs | B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (1.27 mm Pitch) | 1 Pce | |
| Ports (2.00 mm pitch) | 2 Pce | |||
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| Digital I/O | Bits | 14-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Lanes | 4 Pce | |||
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Debug port | is supported | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Linux | Distribution | Debian 10 | ||
| Android | Release | 12, - | ||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
