3.5" Mainboards
// 3.5" Industrial Mainboards
// NXP i.MX 8M Quad Plus
// 4 GB
// 2 x G-LAN (Back side)
// 1 x USB (Front page)
// 2 x USB (Back side)
// 1 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

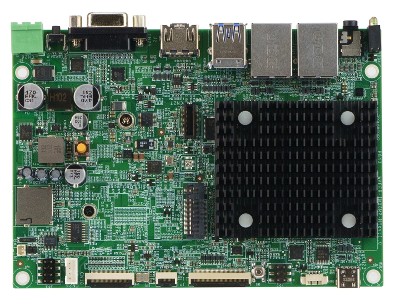

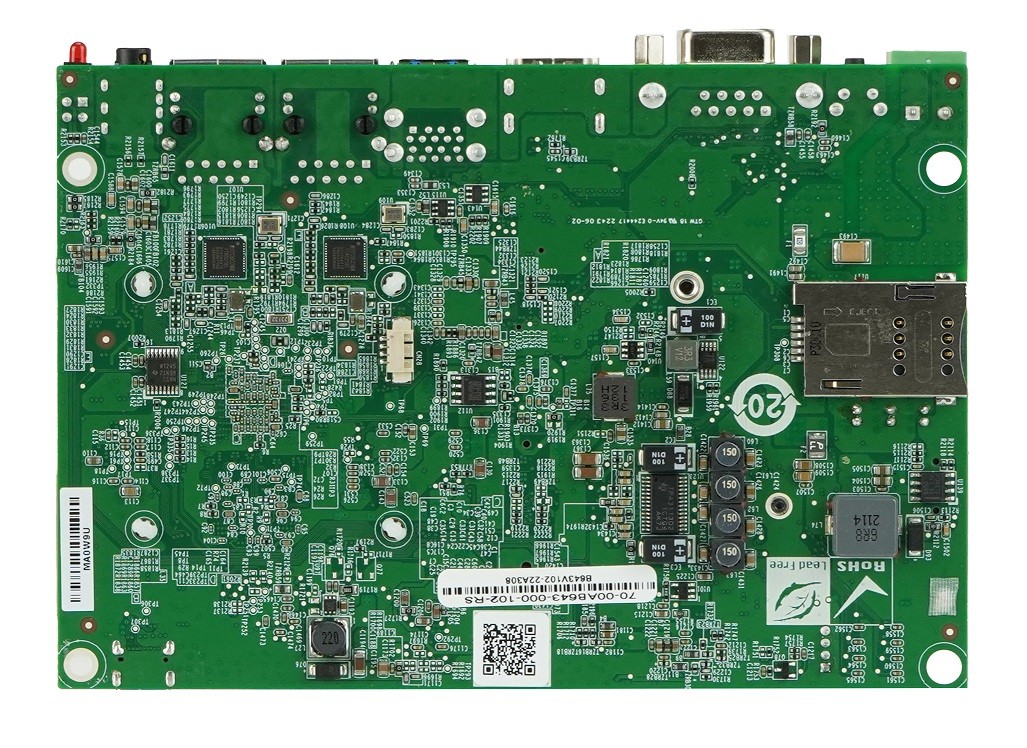

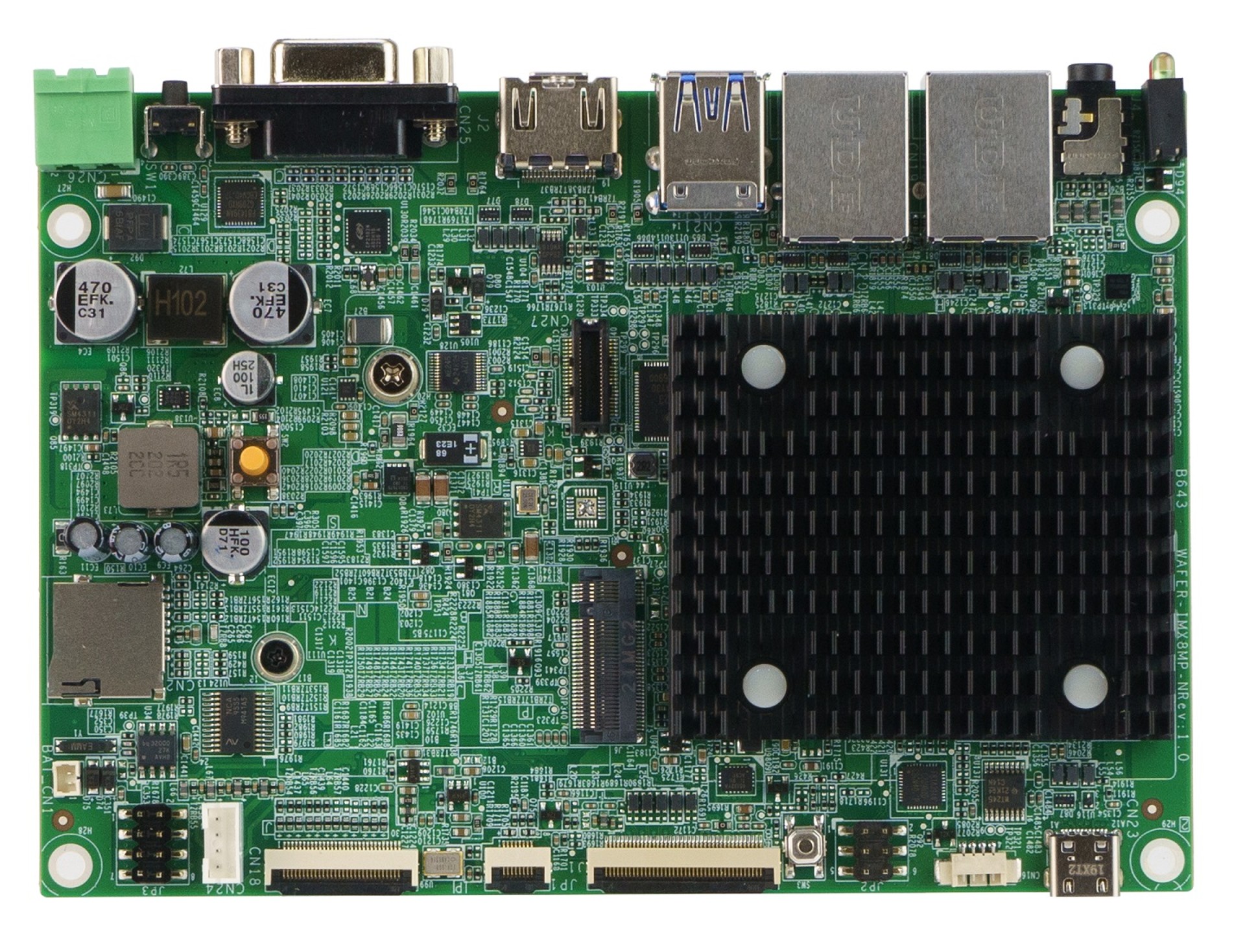

Basic Module: IEI WAFER-IMX8MP
| General information | ||||
| SKU / Item Number | WAFER-IMX8MP | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Quad Plus | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,8 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Frequency | 3200 MHz | |||
| Maximum expansion | 8 GB | |||
| Internal memory | 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 16 GB | |||
| AI / AI | ||||
| Performance | TOPS (INT8) | 2,3 | ||
| Graphics | ||||
| Processor | Vivante GC7000UL | |||
| Screens (Multi-display) | 2 displays | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | Micro SD (external) | |||
| Externe I/O (Front Panel) | ||||
| USB | USB On-The-Go (USB OTG) | 1 Pce | ||

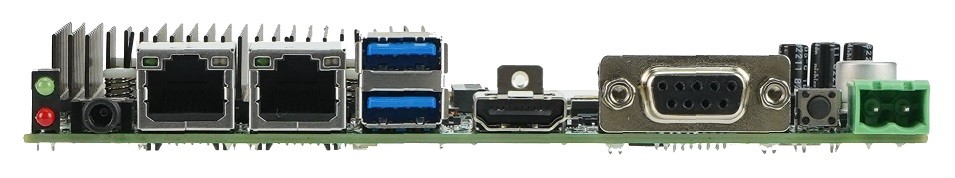

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 1) | 2 Pce | ||
| Internal I/O | ||||
| Serial | RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Lanes | 4 Pce | |||
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| Audio | Verstärker | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Linux | Distribution | Debian 12, Ubuntu 22.04, Yocto 4.0 | ||
| Android | Release | 12, - | ||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0°C to 70°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| System Status | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
