3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Celeron J6412
// SoC (System on a Chip)
// 8 GB
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// Digital I/O (12-Bit)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

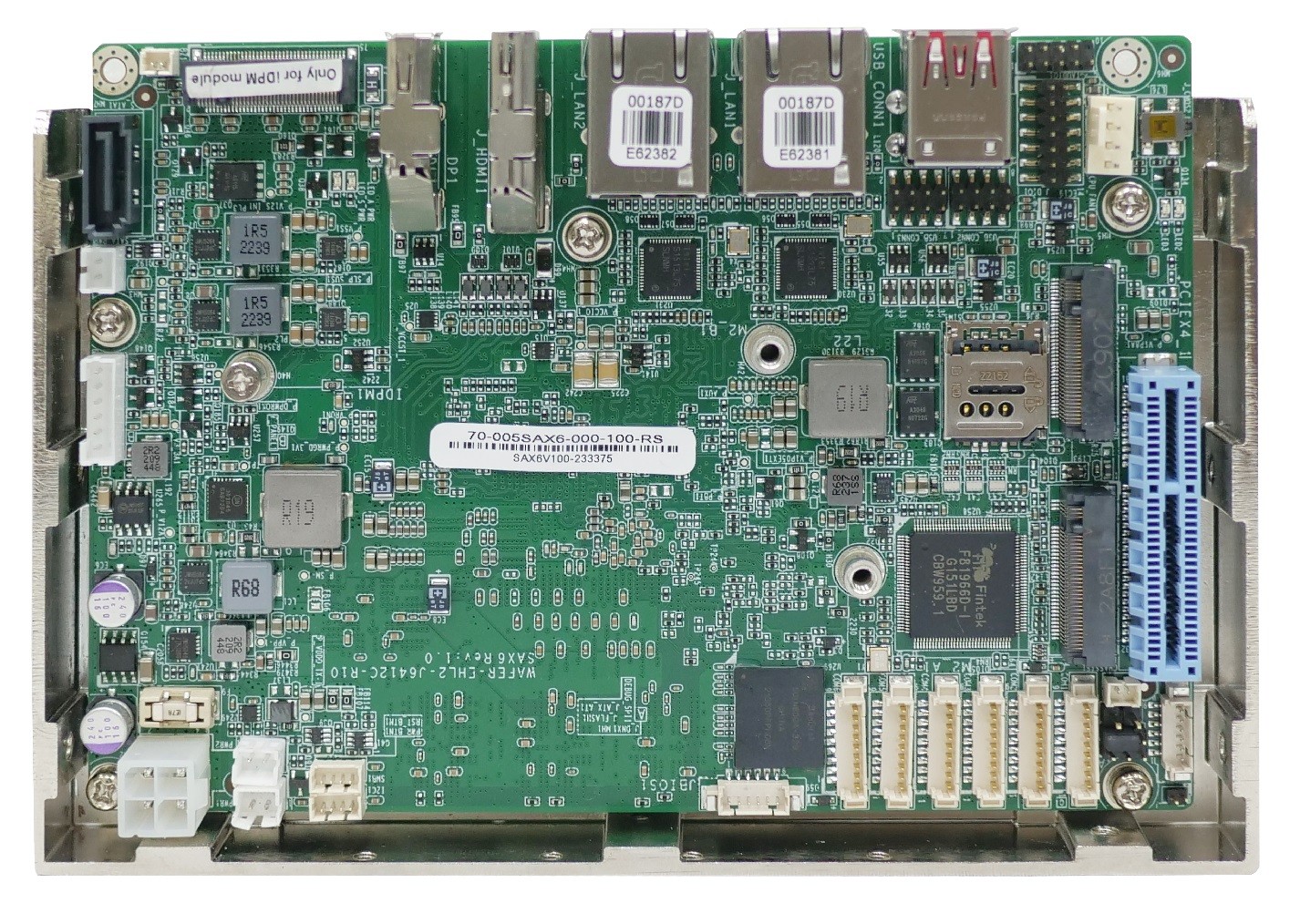

Basic Module: IEI WAFER-EHL2
| General information | ||||
| SKU / Item Number | WAFER-EHL2 | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| Product ID | WAFER-EHL2-J6412C-R11 | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Elkhart Lake | |||
| Number | Intel Celeron J6412 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1493 | |||
| Base frequency | 2 GHz | |||
| Max Turbo Frequency | 2,6 GHz | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Frequency | 3200 MHz | ||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| BIOS | AMI UEFI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81966D-I | |
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 30 Hz | ||
| Version | 1.4A | |||
| DisplayPort | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 1.4A | |||
| Extension | ||||
| PCIe x4 | Generation | 3 | ||
| x2 Signal | 1 Pce | |||
| PCIe Interfaces | 1x PCIe x4 | |||
| M.2 | Slot 1 | Key ID | A | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, PCIe ×2 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2242, 3042 | |||
| M.2 Key IDs | A, B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipset | Supports High Definition Audio interface | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

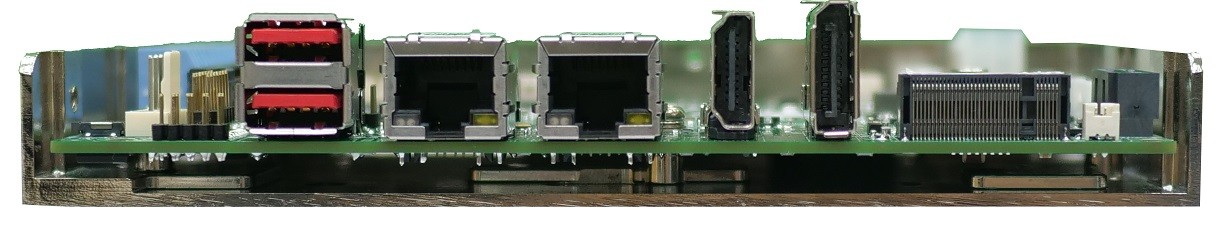

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (1.27 mm Pitch) | 4 Pce | |
| RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 2 Pce | ||
| Digital I/O | Bits | 12-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10° to 65°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 350 g | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
