3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Celeron J1900 | Intel Celeron N2807 | Intel Celeron N2930]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 4 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// [1 | 2] x Mini-PCIe
// Power Supply ATX
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

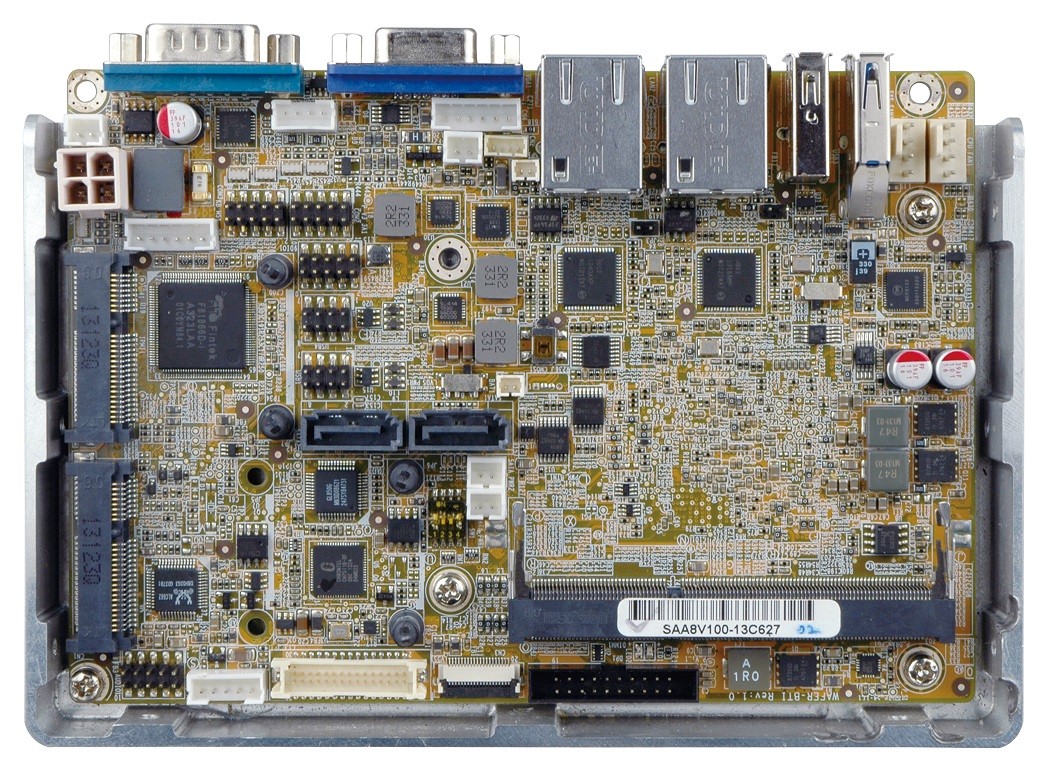

Basic Module: IEI WAFER-BT
| General information | ||||
| SKU / Item Number | WAFER-BT | |||
| Product Basic Data | ||||
| Manufacturer | IEI | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Celeron J1900, Intel Celeron N2807, Intel Celeron N2930 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,58 GHz, 1,83 GHz, 2 GHz | |||
| Max Turbo Frequency | 2,16 GHz, 2,42 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 4,3 W, 7,5 W, 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| Frequency | 1066 / 1333 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 4 GB, 8 GB | |||
| BIOS | AMI BIOS | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| VGA | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce, - | |
| Full installation depth | Quantity | 1 Pce | ||
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

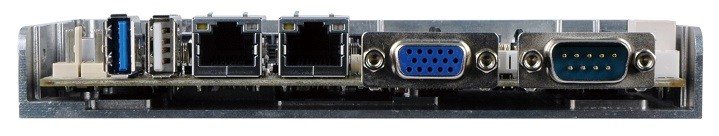

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 1) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| PS/2 | pin header | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | ATX | Connector | 4-pin ATX (12V DC) | |
| Power supply - Input | ATX: 4-Pin ATX (12V DC) | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 60°C | ||
| Storage | -30°C to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 250 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
