3.5" Mainboards
// 3.5" Industrial Mainboards
// [Mediatek MT8370 | Mediatek MT8390]
// [Mediatek MT8370 | Mediatek MT8390]
// SoC (System on a Chip)
// [4 GB | 8 GB]
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 64 GB eMMC
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

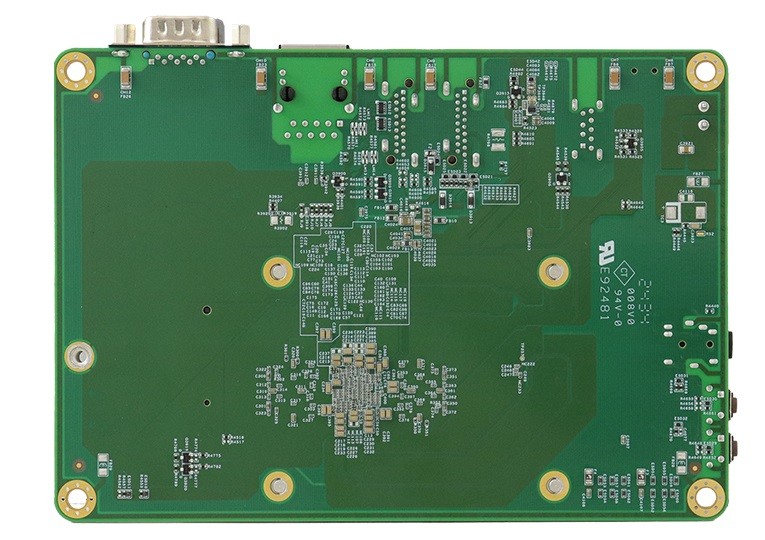

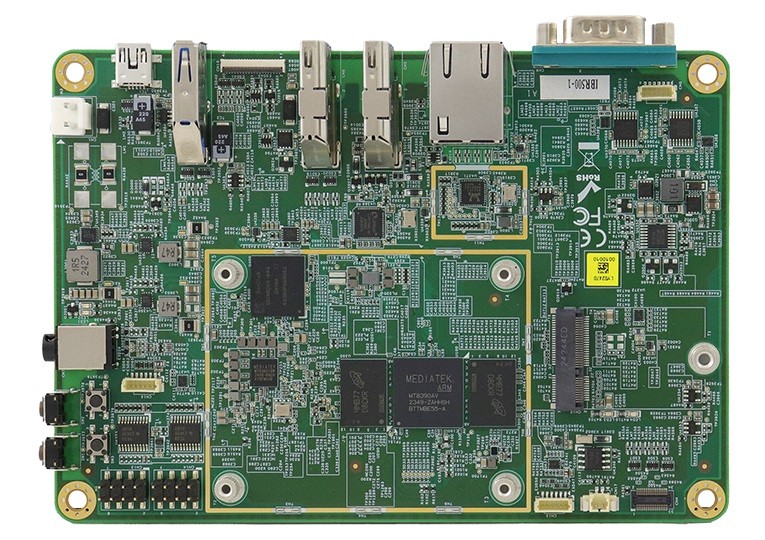

Basic Module: IBASE IBR500
| General information | ||||
| SKU / Item Number | IBR500 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | ARM Cortex-A78 | ||
| Number | Mediatek MT8370, Mediatek MT8390 | |||
| CPU cores | 2 Pce | |||
| Max Turbo Frequency | 2 GHz, 2,2 GHz | |||
| Processor 2 | Series | ARM Cortex-A55 | ||
| Number | Mediatek MT8370, Mediatek MT8390 | |||
| CPU cores | 4 Pce, 6 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 64 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 64 GB | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | SDIO, UART, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | Micro SD | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| Display | eDP (Embedded DisplayPort) lanes | 1 Pce | ||
| Digital I/O | Bits | 6-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 2 Pce | ||
| Image Capture Interfaces | Camera Input 1 | Quantity | 2 Pce | |
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Debug port | is supported | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin connector (horizontal) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 5.10.104 | ||
| Android | Release | 14 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -10°C to 50°C | ||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Controls | Power | 2 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
