3.5" Mainboards
// 3.5" Industrial Mainboards
// NXP i.MX 8M Quad-I
// SoC (System on a Chip)
// 3 GB
// 1 x HDMI
// LVDS
// 1 x G-LAN
// 3 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

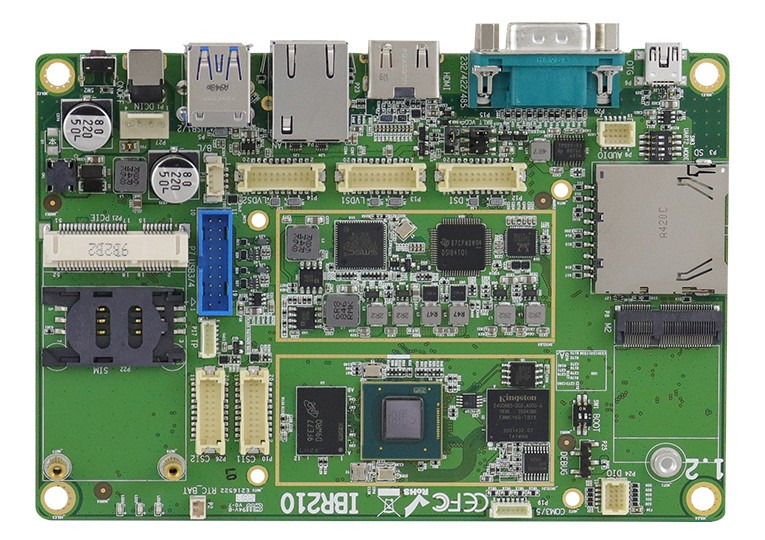

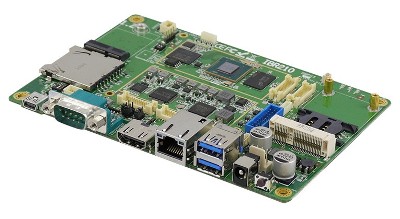

Basic Module: IBASE IBR210
| General information | ||||
| SKU / Item Number | IBR210 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Quad-I | |||
| CPU cores | 4 Pce | |||
| Socket | BGA (Ball Grid Array) | |||
| Base frequency | 1,3 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 3 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Graphics | ||||
| Processor | Vivante GC7000 Lite | |||
| Performance feature | Support | OpenCL 1.2, OpenGL 3.1 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, MPEG2, MPEG4, VC1 / WMV9, VP 8 | |||
| HW encoding | AVC / H.264 | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Version | 2.0a | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | 4G/LTE, PCIe ×1 (Gen. 2), SDIO, UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce | ||
| Storage | SD / MMC card | |||
| Network | ||||
| G-LAN | Controller | Chipset | Integrated into i.MX8 | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| Display | HDMI | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 3.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx/CTS/RTS | 2 Pce | ||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 2 Pce | |
| Connector | 20-pin FPC, 0.5 mm | |||
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| CAN bus | Version 2.0B (Interface) | 2 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 18.04 LTS, Yocto 2.5 | ||
| Android | Release | 9 | ||
| Supported OS | Android, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 80°C | ||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 147 mm | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Gigabit Ethernet | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
