3.5" Mainboards
// 3.5" Industrial Mainboards
// [AMD Ryzen Embedded R2312 | AMD Ryzen Embedded R2314 | AMD Ryzen Embedded R2514 | AMD Ryzen R1305G | AMD Ryzen R1505G | AMD Ryzen R1606G | AMD Ryzen V1202B | AMD Ryzen V1605B]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// 2 x HDMI
// LVDS
// 2 x G-LAN
// 4 x USB
// 5 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

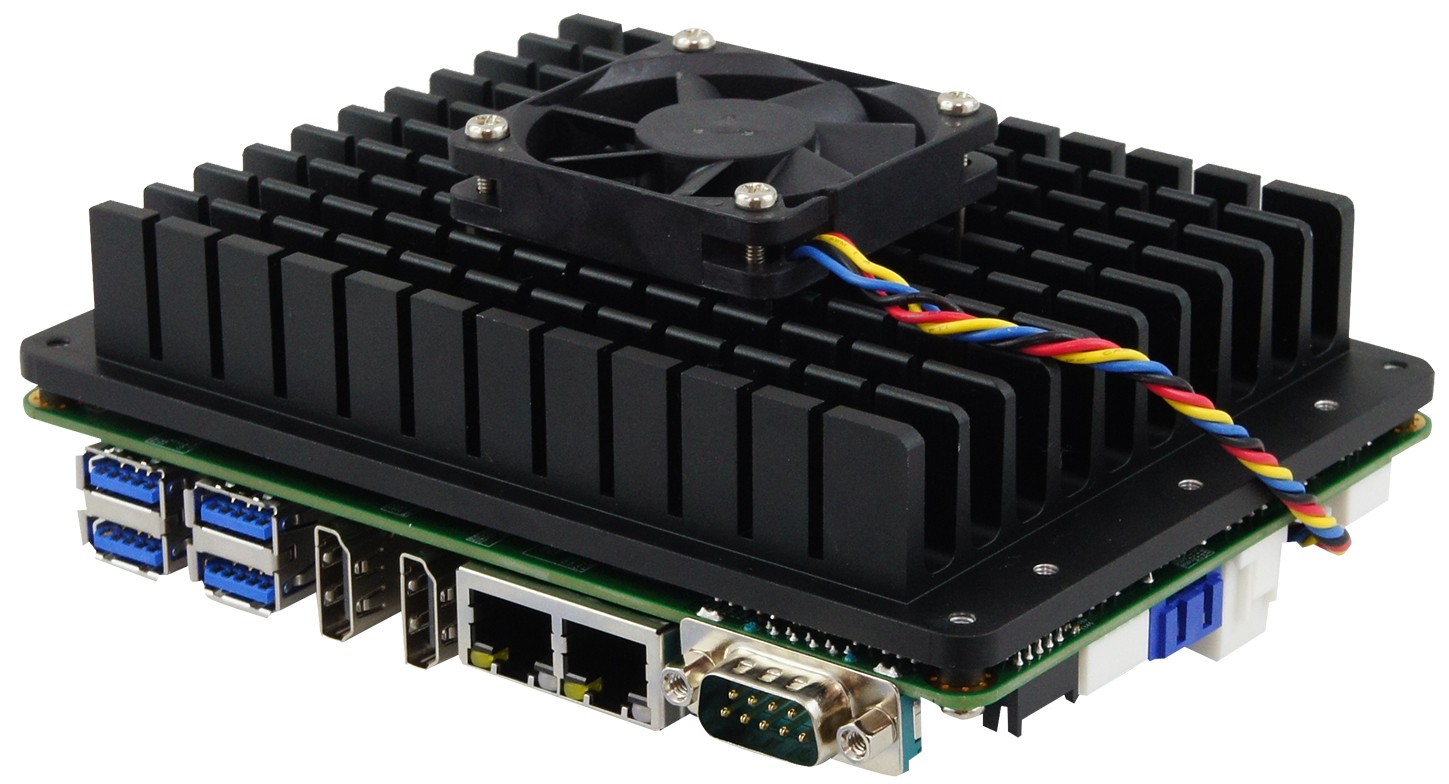

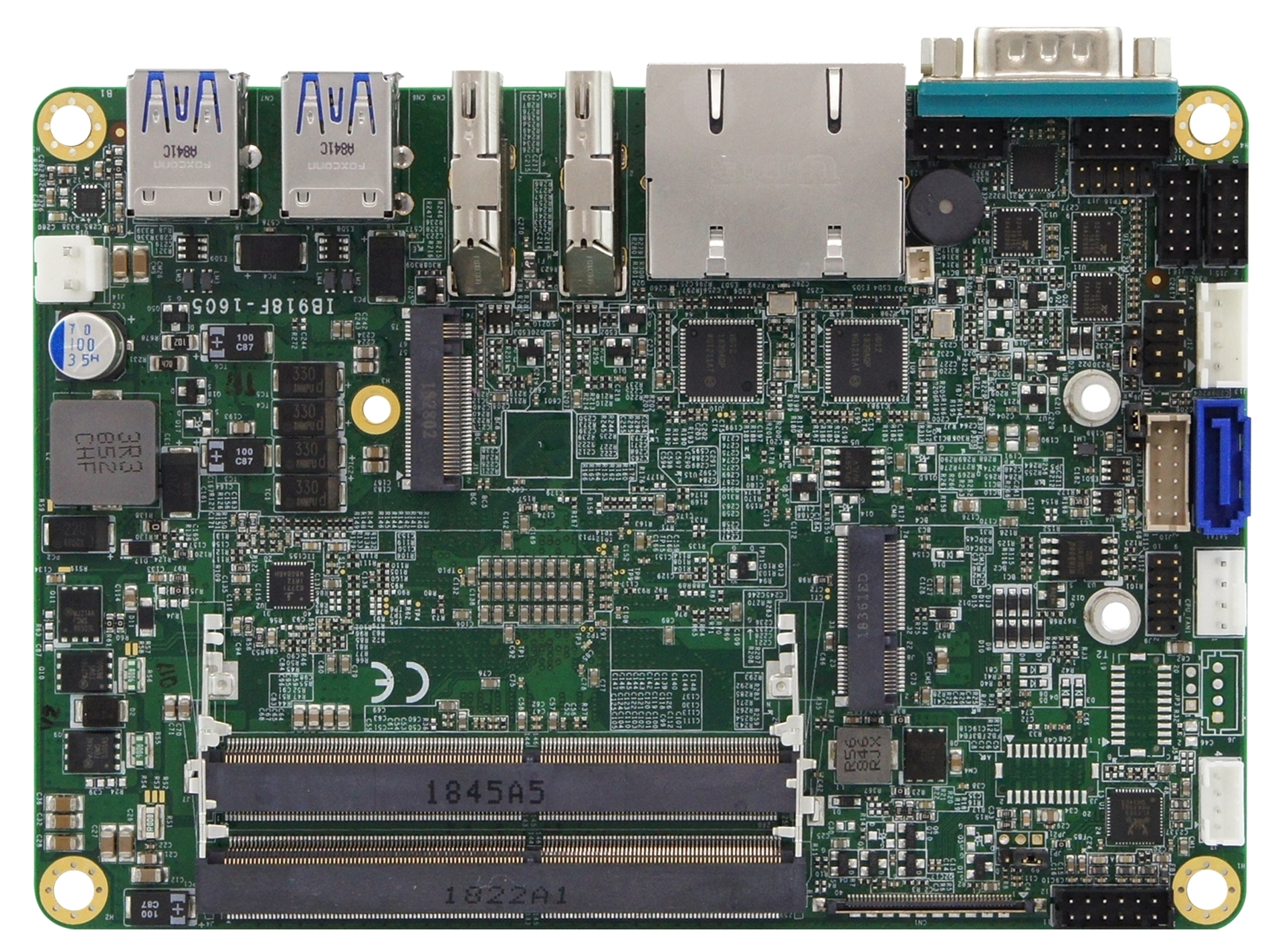

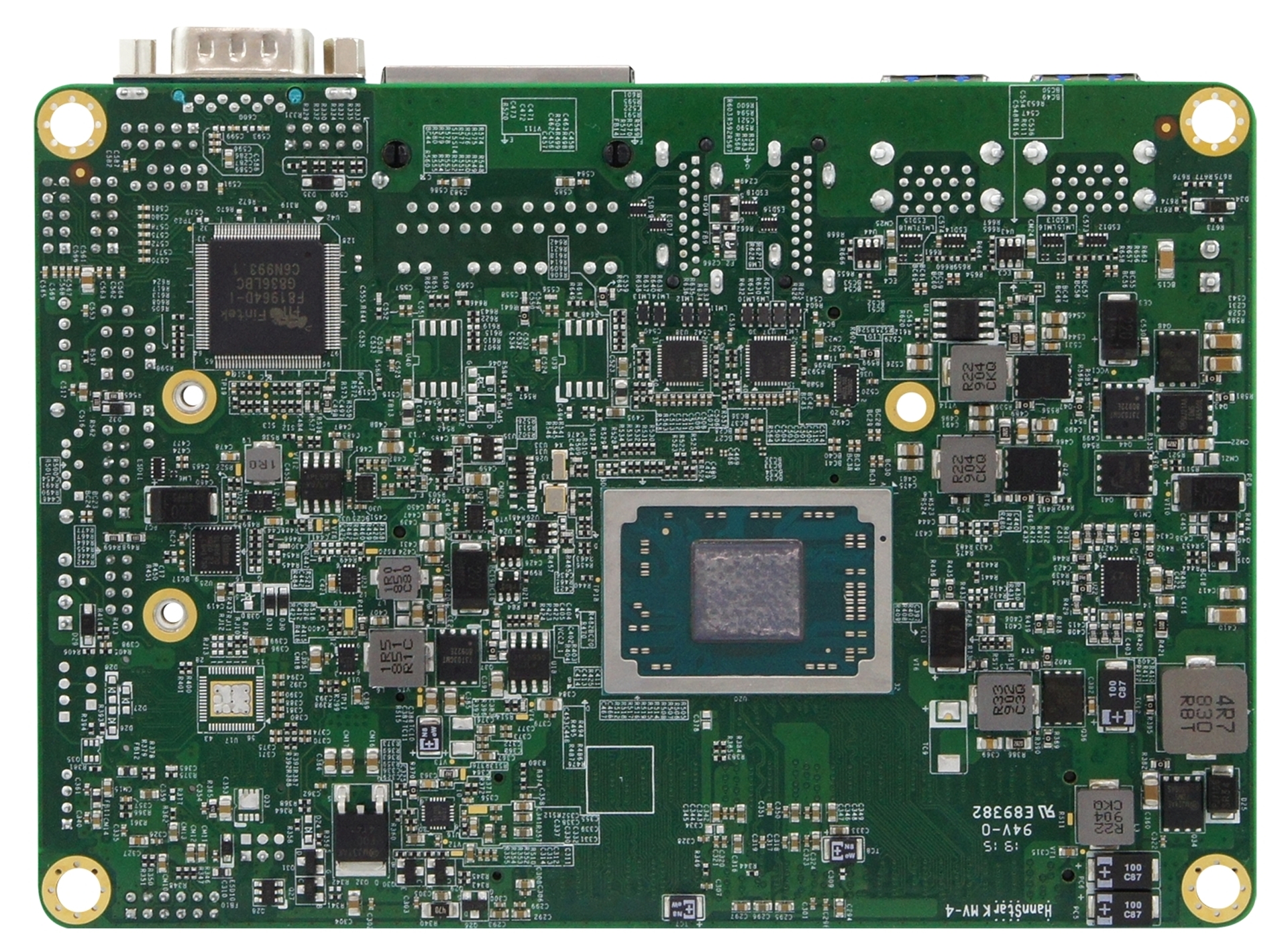

Basic Module: IBASE IB918
| General information | ||||
| SKU / Item Number | IB918 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | AMD Ryzen Embedded R2000 | ||
| Number | AMD Ryzen Embedded R2312, AMD Ryzen Embedded R2314, AMD Ryzen Embedded R2514, AMD Ryzen R1305G, AMD Ryzen R1505G, AMD Ryzen R1606G, AMD Ryzen V1202B, AMD Ryzen V1605B | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 4 Pce, 8 Pce | |||
| Socket | BGA 1140 (FP5) | |||
| Base frequency | 1,5 GHz, 2 GHz, 2,1 GHz, 2,3 GHz, 2,6 GHz, 2,7 GHz, 3,3 GHz | |||
| Max Turbo Frequency | 3,5 GHz, 3,7 GHz, - | |||
| Cache | 1 MB, 2 MB, 4 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 2400 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | is supported | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81964D-I | |
| Graphics | ||||
| Processor | AMD Radeon Vega | |||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.0a | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface) | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC269Q-VC3-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

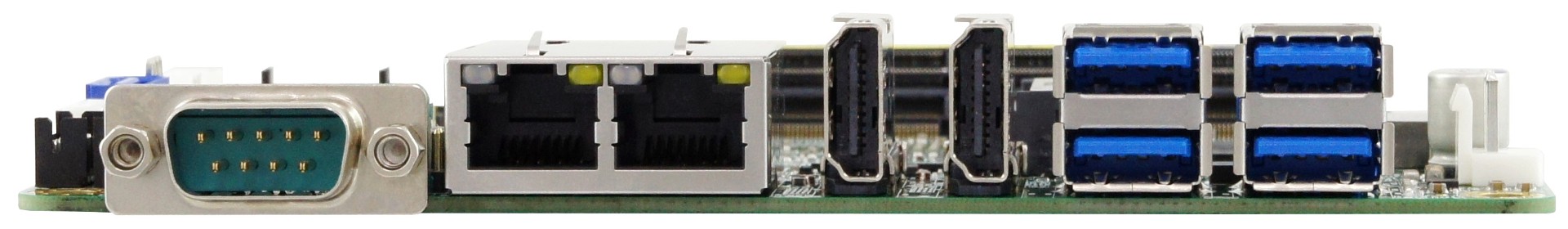

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| Display | HDMI | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 1 Pce | |
| USB 3.1 | Ports (2.00 mm pitch) | 4 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Power supply - Input | DC: 12 to 24V | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
We are happy to advise you personally.
