3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// 204-pin SO-DIMM DDR3L
// 1 x Displayport
// 2 x G-LAN
// 5 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 24 V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

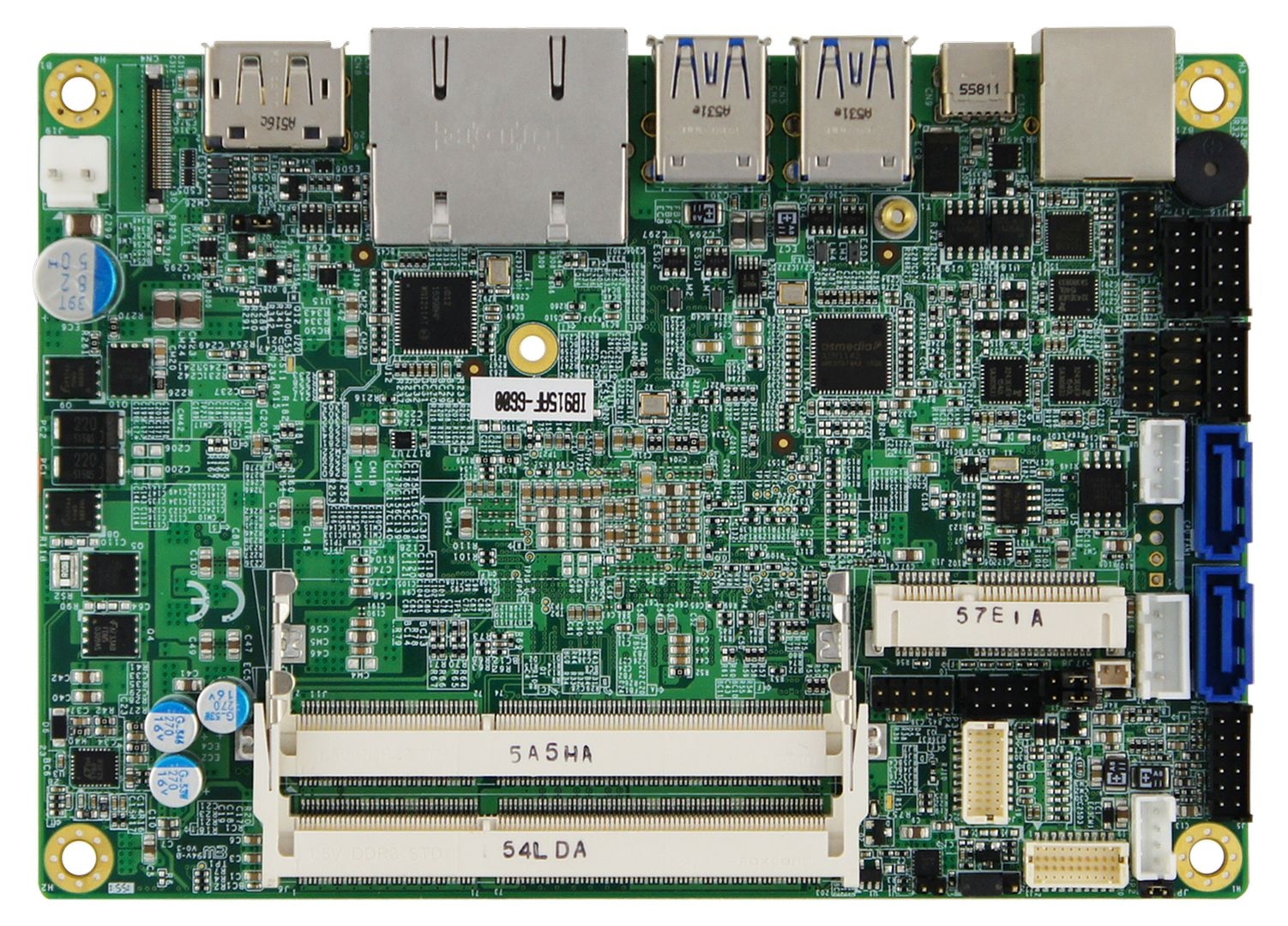

Basic Module: IBASE IB915
| General information | ||||
| SKU / Item Number | IB915 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Skylake | ||
| Number | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 2 GHz, 2,3 GHz, 2,4 GHz, 2,6 GHz | |||
| Cache | 2 MB, 3 MB, 4 MB | |||
| Thermal Design Power (TDP) | 10 W, 15 W | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81846AD-I | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC662 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps), Intel I219V PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Active Management Technology (AMT) version | 11.0, - | |||
| Network | 2x G-LAN | |||

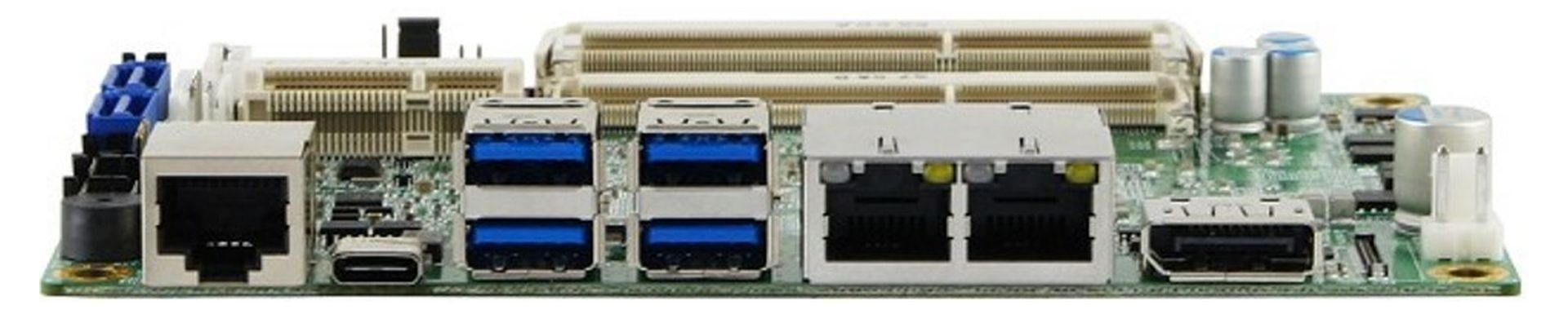

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| USB 3.1 Gen 1 | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | RJ-11 | 1 Pce | |
| Display | DisplayPort | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| LPC | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 24 V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 9 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q3, 2030 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
