3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// rPGA 988b (G2)
// Intel QM67
// 204-pin SO-DIMM DDR3
// 1 x DVI-I
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

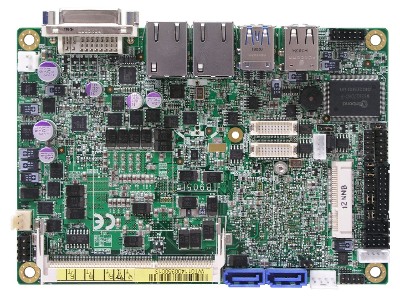

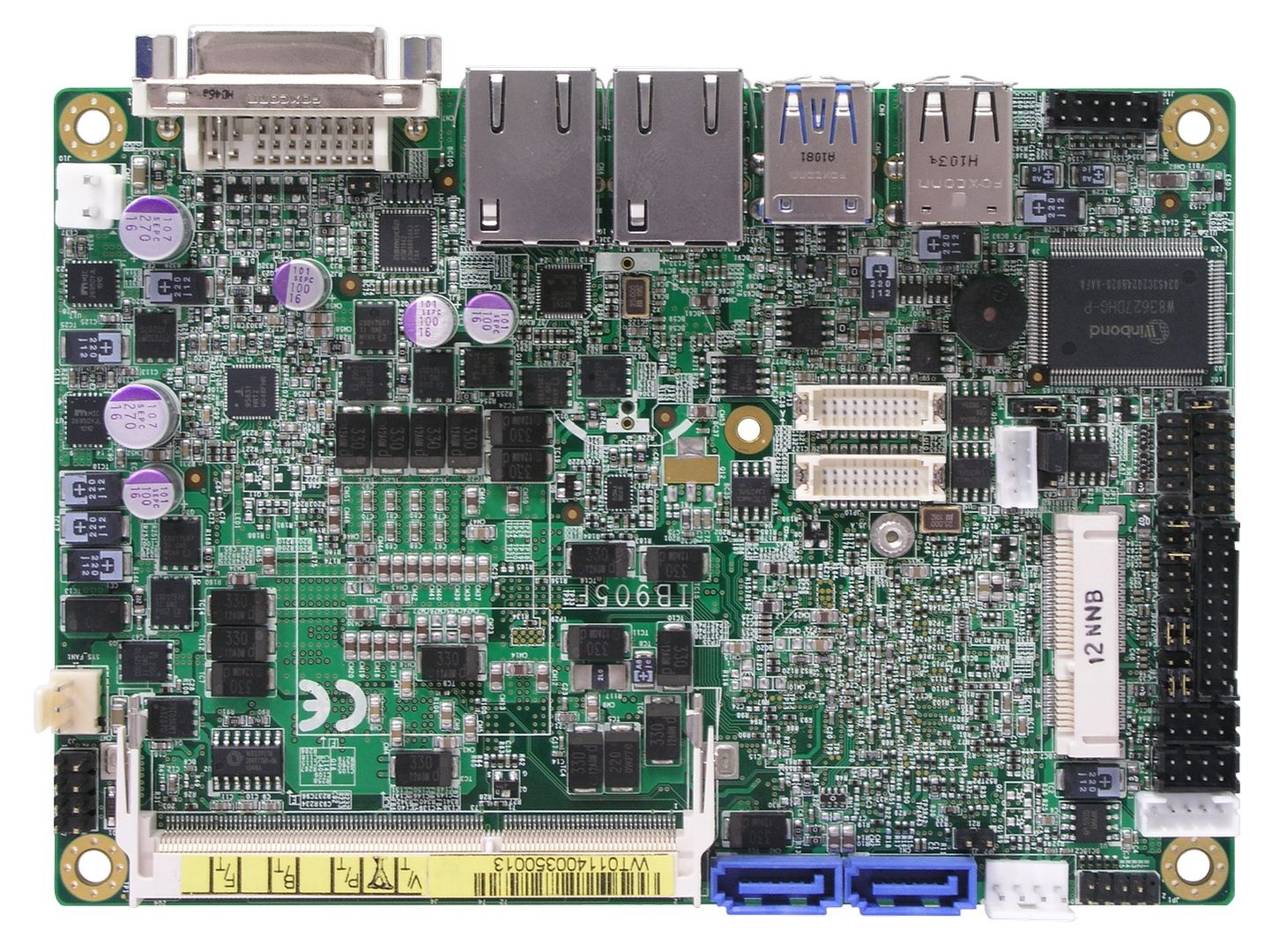

Basic Module: IBASE IB905F
| General information | ||||
| SKU / Item Number | IB905F | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Sandy Bridge | ||
| Socket | rPGA 988b (G2) | |||
| Chipset | Intel QM67 | |||
| Memory | Structure | 204-pin SO-DIMM DDR3 | ||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81866AD-I | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 2 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 48 bits | ||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Audio | ||||
| Chipset | Realtek ALC662 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel 82579V (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel 82583V (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 2 Pce | |||
| Display | DVI | DVI-I Signal | 1 Pce | |
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows XP (32/64-bit) | is supported | ||
| Windows 7 (32/64-bit) | is supported | |||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q4, 2019 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
