3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Atom E3815 | Intel Atom E3827 | Intel Atom E3845]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 2 x USB
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 9 to 30 volts
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

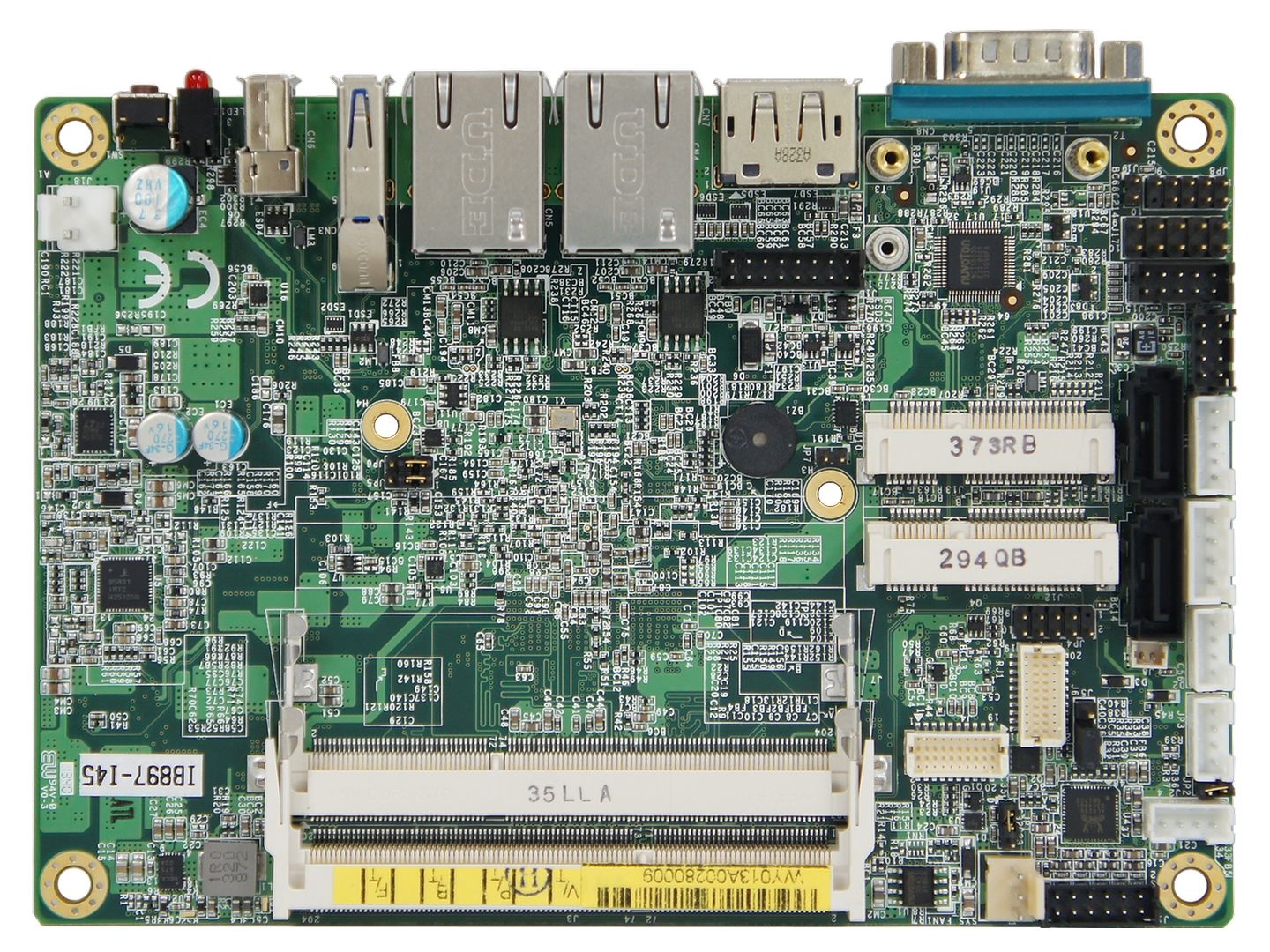

Basic Module: IBASE IB897
| General information | ||||
| SKU / Item Number | IB897 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| Product ID | ||||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3815, Intel Atom E3827, Intel Atom E3845 | |||
| CPU cores | 1 Pce, 2 Pce, 4 Pce | |||
| Threads | 1 Pce, 2 Pce, 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,46 GHz, 1,75 GHz, 1,91 GHz | |||
| Cache | 0,5 MB, 1 MB, 2 MB | |||
| Thermal Design Power (TDP) | 5 W, 8 W, 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1333 MHz | |||
| Slots | 1 Pce, 2 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT5523D | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| VGA | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| DisplayPort | Maximum resolution | 2560 x 1200 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 48 bits | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| Full installation depth | Quantity | 1 Pce | ||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC269 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.0 | 1 Pce | |||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| Display | DisplayPort | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| VGA (2.00 mm pitch) | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 30 volts | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 9–30V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (32-bit) | is supported | |||
| Windows 8 (64-bit) | is supported | |||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 90°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Controls | Power | 1 Pce, - | ||
| Status indicators | Storage | 1 Pce, - | ||
| Power | 1 Pce, - | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q4, 2028 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
