3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core i3-N305 | Intel N50 | Intel N97]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

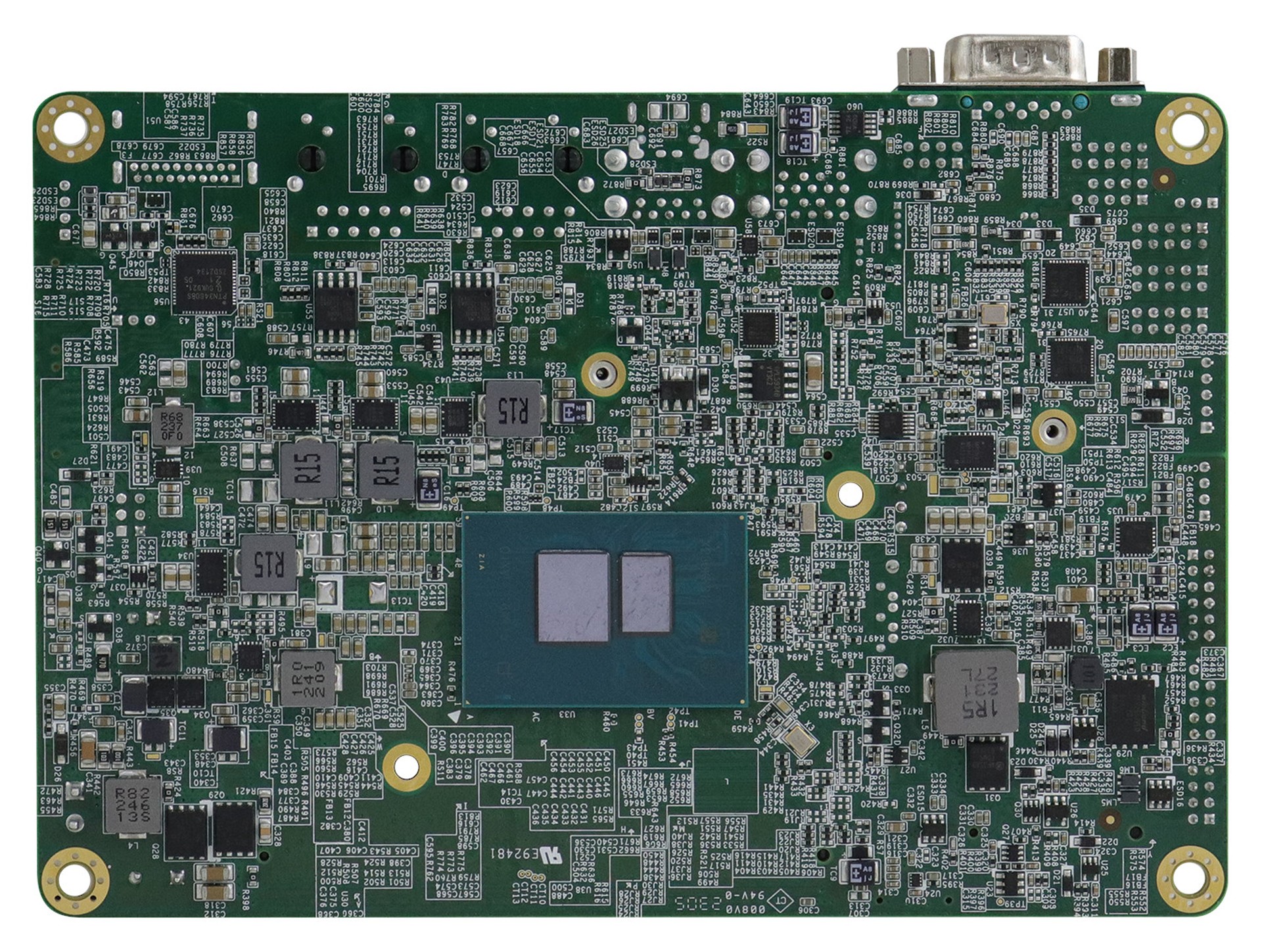

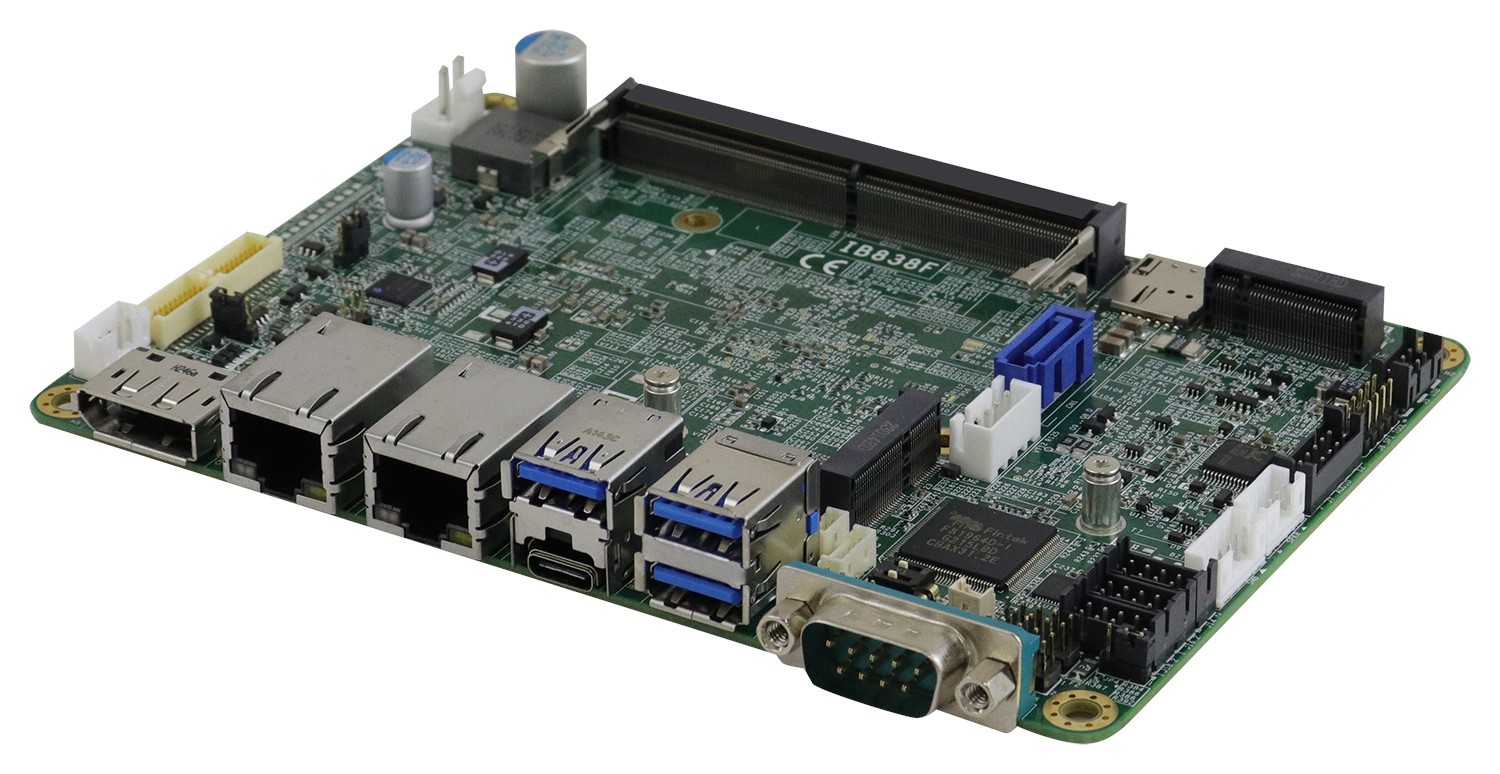

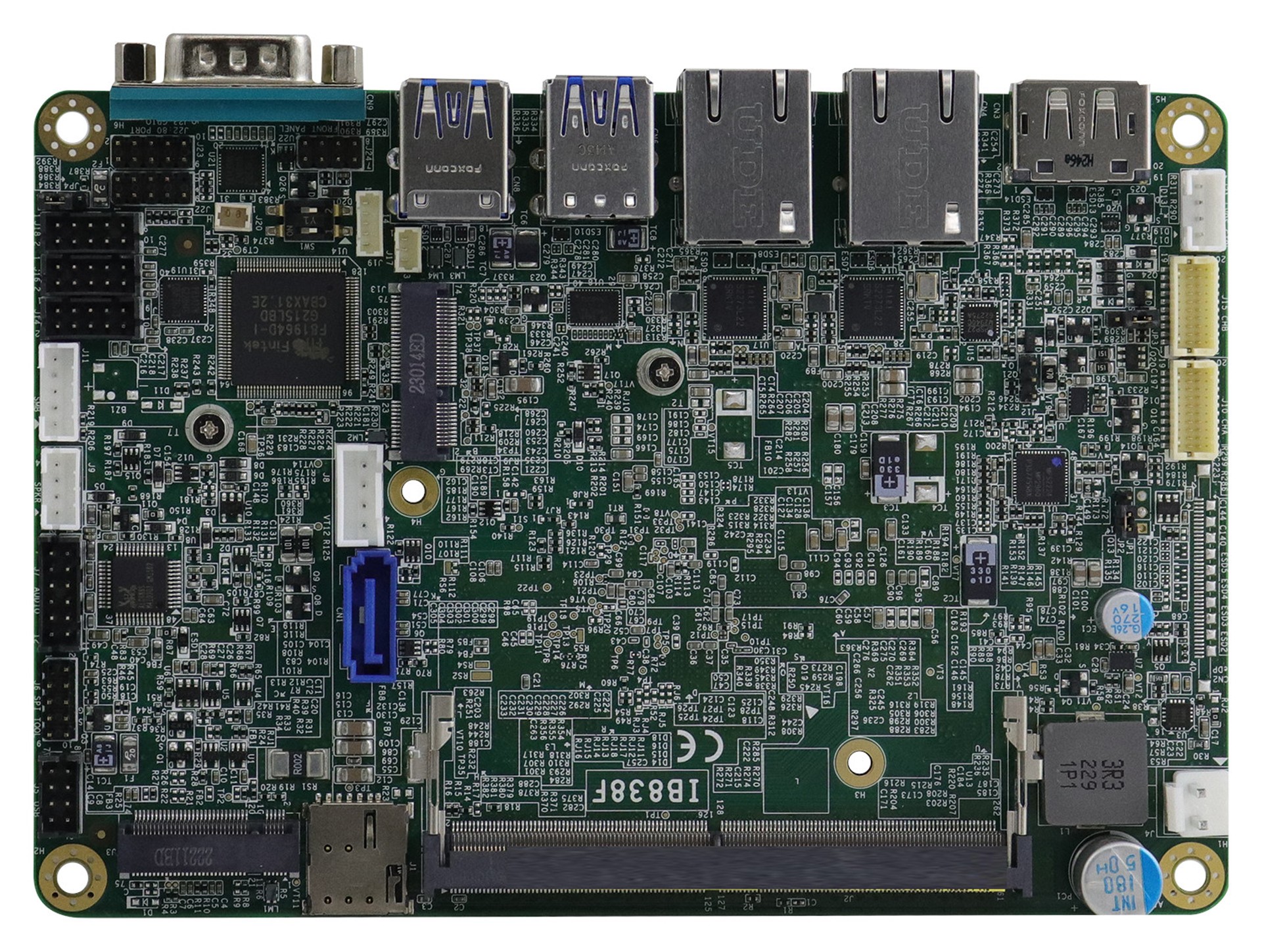

Basic Module: IBASE IB838
| General information | ||||
| SKU / Item Number | IB838 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i3-N305, Intel N50, Intel N97 | |||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Threads | 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
| Lithography | 10 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81964D-I | |
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | SATA III | |||
| Supported dimensions | 3042 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface) | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | DisplayPort | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.1 (Gen 2, Type-C) | 1 Pce | ||
| USB 3.2 (Gen 1) | 3 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | -, Dual channel | ||
| LVDS connectors | 2 Pce, - | |||
| eDP (Embedded DisplayPort) lanes | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 9~36V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 147 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
