3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 1 x HDMI
// 1 x Displayport
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 5 x Seriell I/O
// 1 x Mini-PCIe
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

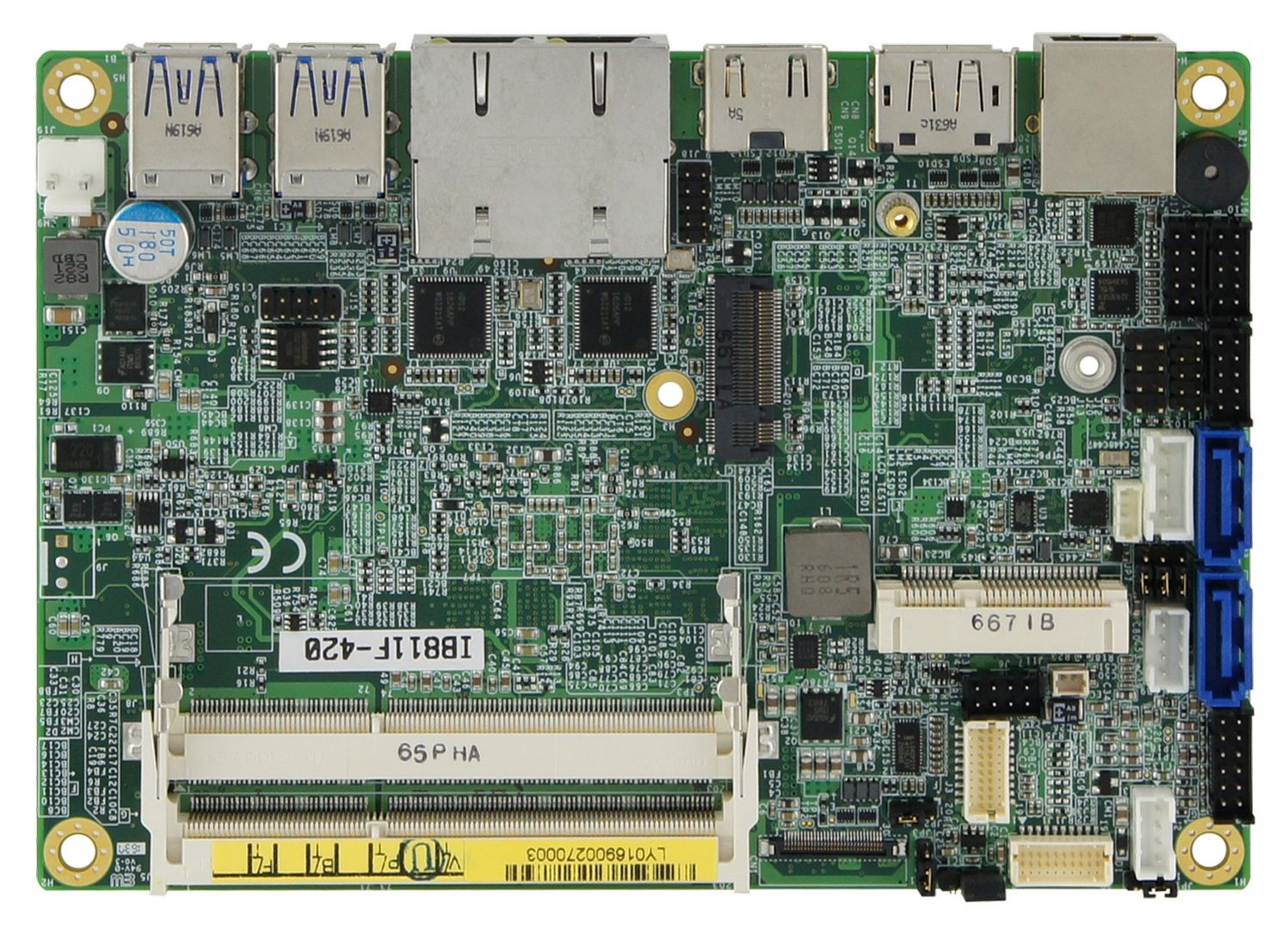

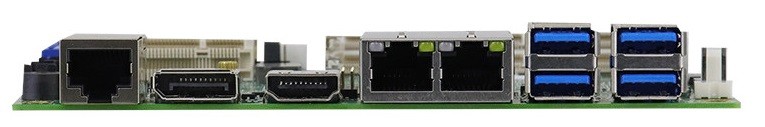

Basic Module: IBASE IB811
| General information | ||||
| SKU / Item Number | IB811 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,6 GHz, 1,8 GHz, 2 GHz, 2,4 GHz, 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| DIMM data transfer rate | 1600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81846AD-I | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Version | 1.4b | ||
| DisplayPort | Version | 1.2 | ||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | B | |
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B | |||
| Storage | M.2, mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps), Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Serial | RS-232 / 422 / 485 | RJ-45 | 1 Pce | |
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 3 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 9~36V | |||
| Typical power consumption | 15 W | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Storage | -40°C to 90°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 147 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Expected until | Q3, 2031 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
