3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// AMD Geode LX800
// AMD Geode CS5536
// 1 x VGA
// 1 x G-LAN
// 2 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x PCI
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

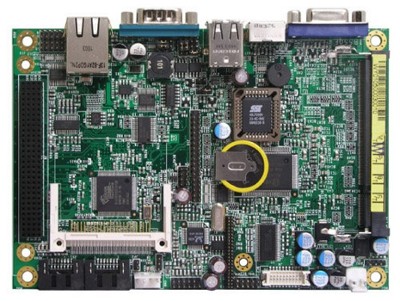

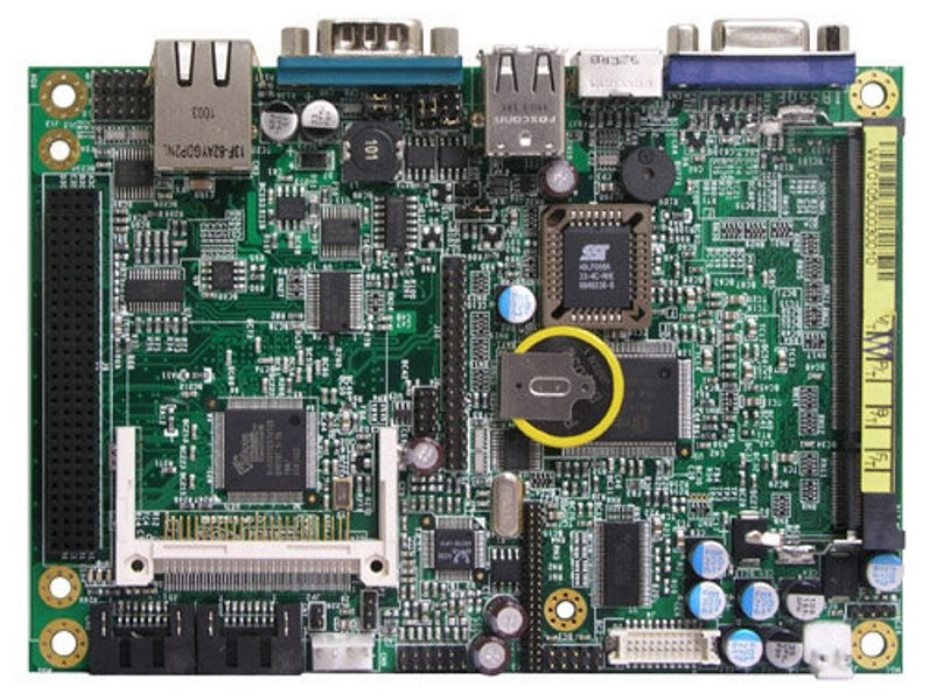

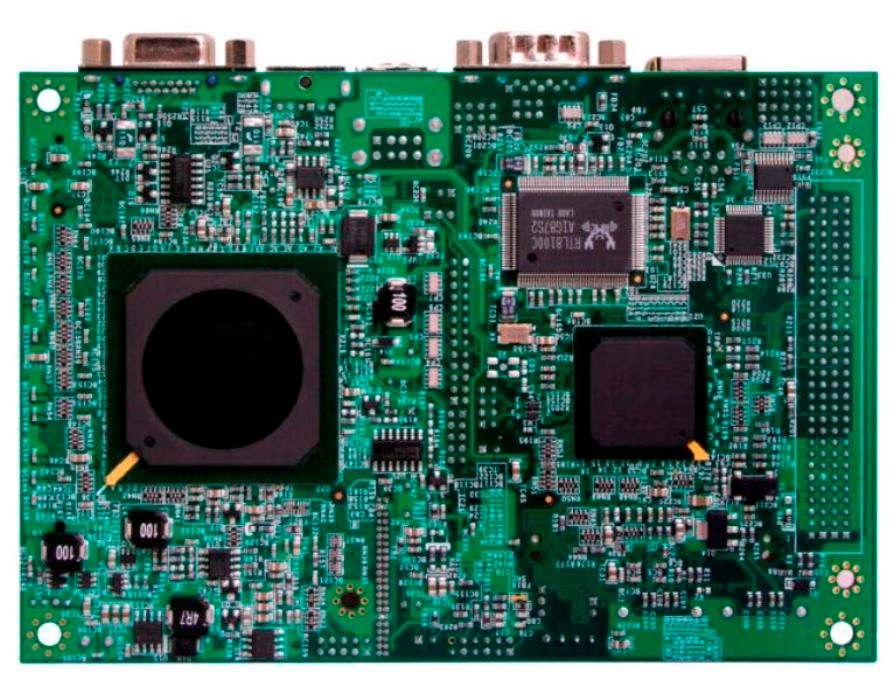

Basic Module: IBASE IB550
| General information | ||||
| SKU / Item Number | IB550 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | AMD Geode LX | ||
| Number | AMD Geode LX800 | |||
| Socket | BGA 481 | |||
| Base frequency | 0,5 GHz | |||
| Cache | 0,25 MB | |||
| Thermal Design Power (TDP) | 3,5 W | |||
| Chipset | AMD Geode CS5536 | |||
| Memory | Slots | 1 Pce | ||
| Maximum expansion | 1 GB | |||
| I/O controller | Controller 1 | I/O controller | Winbond W83627HF | |
| Graphics | ||||
| LVDS (Low Voltage Differential Signaling) | Bits | 18 bits, 24-bit | ||
| Extension | ||||
| PCI | Quantity | 1 Pce | ||
| PCI Interfaces | 1x PCI slot | |||
| Storage | CF | |||
| Network | ||||
| LAN | Quantity | 1 Pce | ||
| Network | 1x LAN port | |||
| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| PS/2 | mini-DIN-6 | 1 Pce | ||
| Display | VGA | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 1 Pce | ||
| Parallel | Ports (2.54 mm pitch) | 1 Pce | ||
| Display | LVDS connectors | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 2 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12V | |
| Connector | 2-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 145 mm | |||
| Deep | 102 mm | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
