3.5" Mainboards
// 3.5" Industrial Mainboards
// [AMD Ryzen Embedded 8640U | AMD Ryzen Embedded 8645HS | AMD Ryzen Embedded 8840U | AMD Ryzen Embedded 8845HS]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

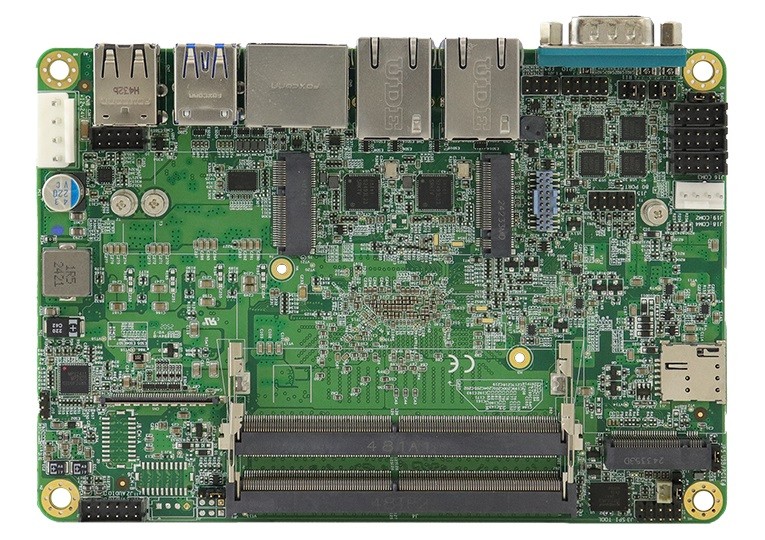

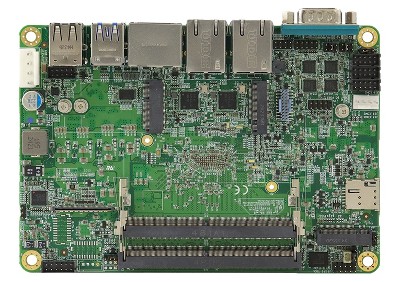

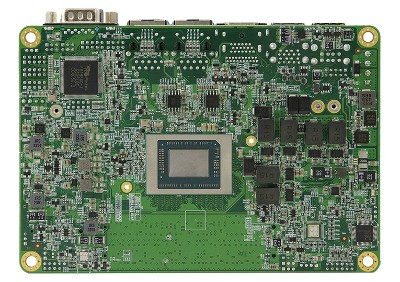

Basic Module: IBASE IB301
| General information | ||||
| SKU / Item Number | IB301 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded 8000 Series | |||
| Number | AMD Ryzen Embedded 8640U, AMD Ryzen Embedded 8645HS, AMD Ryzen Embedded 8840U, AMD Ryzen Embedded 8845HS | |||
| CPU cores | 6 Pce, 8 Pce | |||
| Threads | 12 Pce, 16 Pce | |||
| Base frequency | 3,3 GHz, 3,5 GHz, 3,8 GHz, 4,3 GHz | |||
| Max Turbo Frequency | 4,9 GHz, 5 GHz, 5,1 GHz | |||
| Cache | 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 28 W, 45 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 5600 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 256 GB | |||
| BIOS | AMI BIOS | |||
| I/O controller | Controller 1 | I/O controller | Fintek F81956D-I | |
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.1 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.1 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface) | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS connectors | 1 Pce | ||
| eDP (Embedded DisplayPort) lanes | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | Power connection (onboard) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 147 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
