3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Atom X7433RE
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5

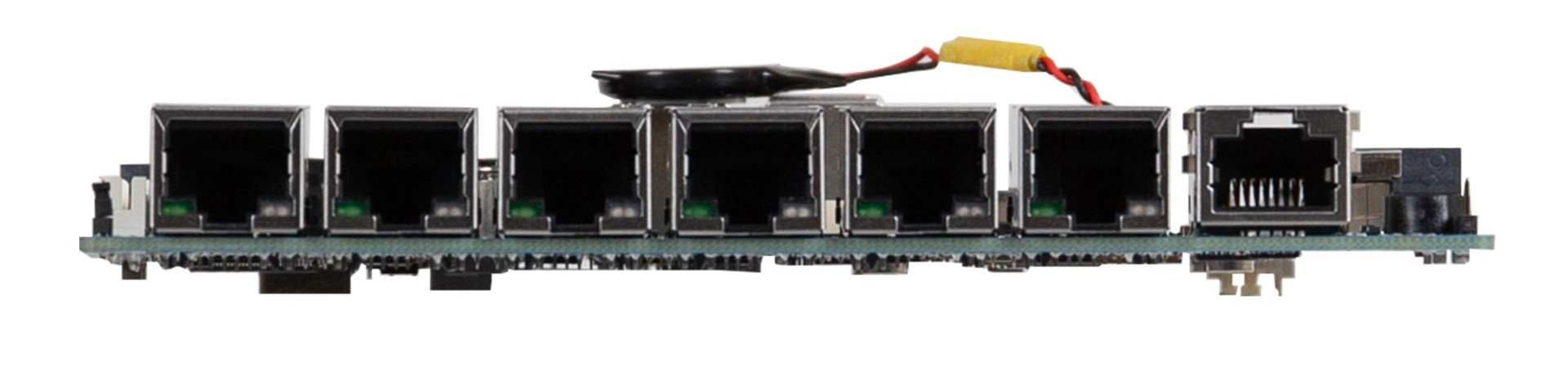

// 6 x G-LAN (Front page)
// 4 x USB (Back side)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12~36V
Sales only to business customers.
Delivery time: upon request

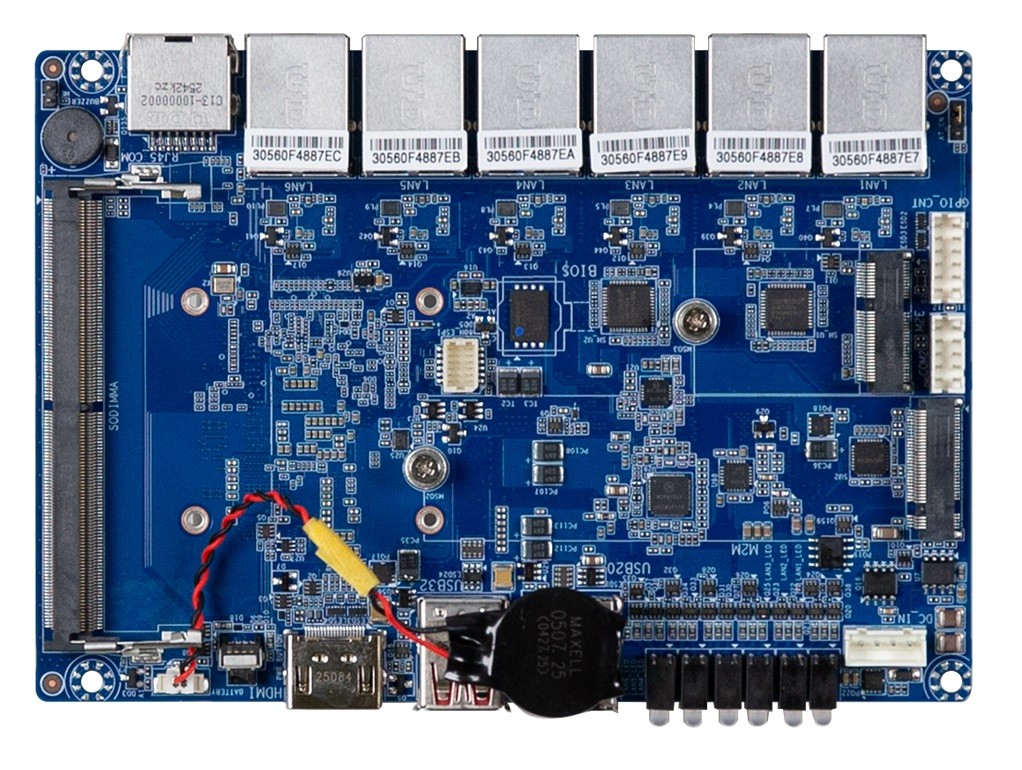

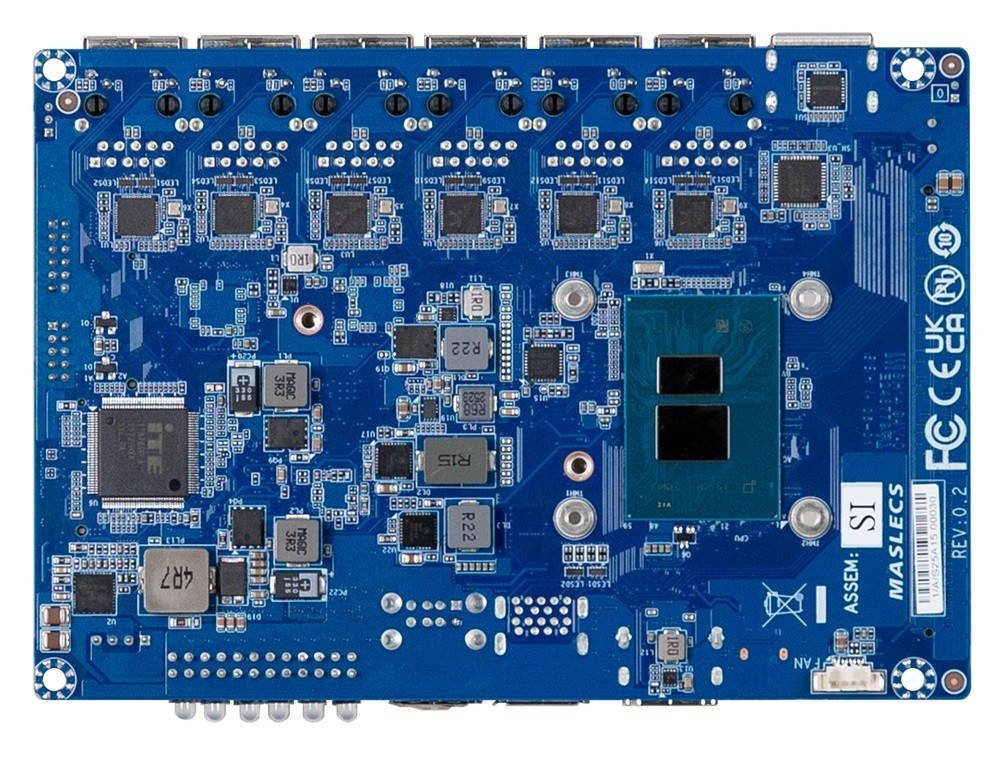

Basic Module: GIGAIPC QBiP-x7433REC
| General information | ||||
| SKU / Item Number | QBiP-x7433REC | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Amston Lake | |||
| Number | Intel Atom X7433RE | |||
| CPU cores | 4 Pce | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 9 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×2 (Gen 3) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC269 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8125D (10/100/1000/2500 Mbps) | |
| Quantity | 6 Pce | |||
| Network | 6x G-LAN (6 Ethernet ports) | |||
| Externe I/O (Front Panel) | ||||
| Ethernet | RJ-45 | 6 Pce | ||
| Console | RJ45 Connector | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| Internal I/O | ||||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9670 VQ 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12~36V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 12-36V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Storage | 0 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 101,7 mm | |||
| Controls | Power | 1 Pce | ||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Gigabit Ethernet | 6 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
