3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Celeron J6412
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request

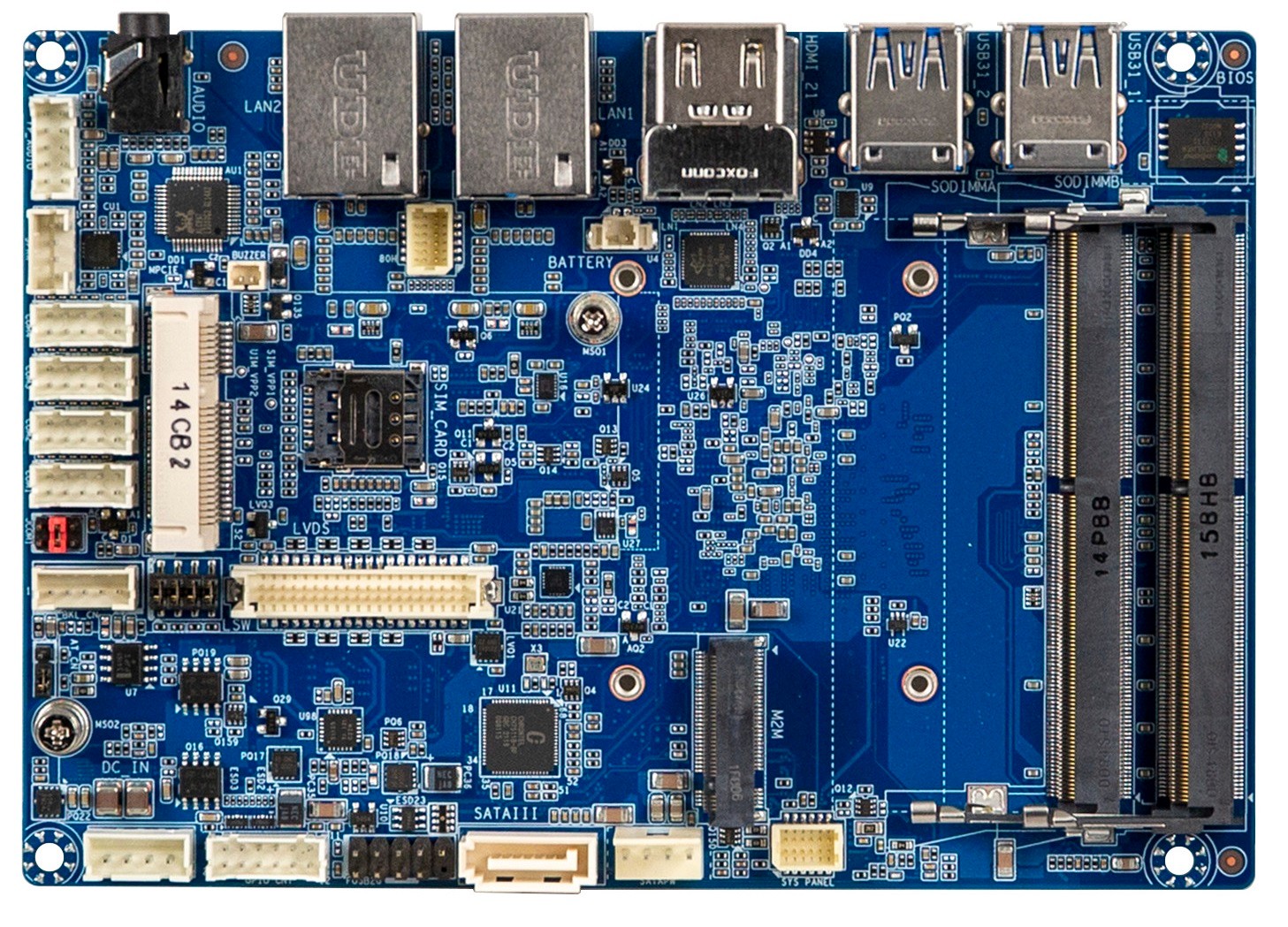

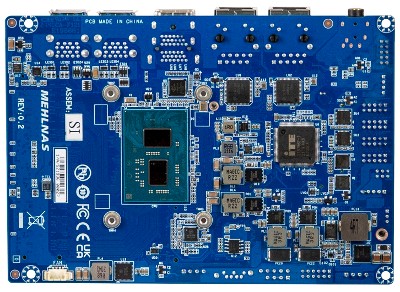

Basic Module: GIGAIPC QBiP-6412A
| General information | ||||
| SKU / Item Number | QBiP-6412A | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| Product ID | 9MEHLJASMR-SI | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Elkhart Lake | |||
| Number | Intel Celeron J6412 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1493 | |||
| Base frequency | 2 GHz | |||
| Max Turbo Frequency | 2,6 GHz | |||
| Cache | 1,5 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Lithography | 10 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 3200 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8786E | |
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bridge | Chrontel CH7511B | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×2, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC897 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Audio | Speaker Out | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 9 to 36V | |
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Storage | 0 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 101,7 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
