3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Core Ultra 5 Processor 225U
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 3 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request

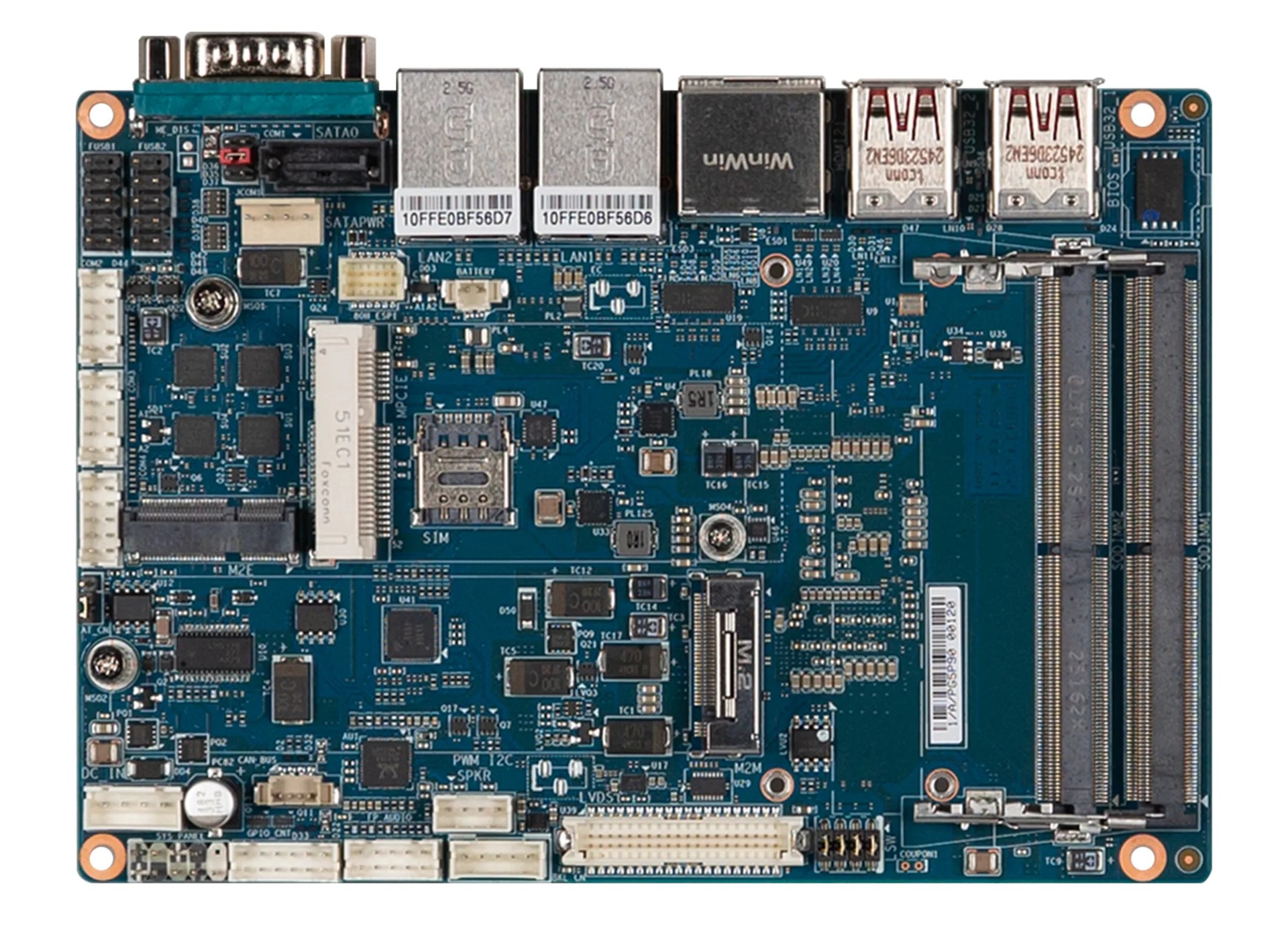

Basic Module: GIGAIPC QBiP-225UB
| General information | ||||
| SKU / Item Number | QBiP-225UB | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| Product ID | 9MARU5BSMR-SI | |||
| System | ||||
| Processor | Series | Intel Arrow Lake | ||
| Number | Intel Core Ultra 5 Processor 225U | |||
| CPU cores | 12 Pce | |||
| Threads | 14 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,5 GHz | |||
| Performance Core Max Turbo Frequency | 4,8 GHz | |||
| Efficient-core base clock frequency | 1,3 GHz | |||
| Efficient-core Max Turbo Frequency | 3,8 GHz | |||
| Cache | 12 MB | |||
| Basic power consumption of the processor | 15 W | |||
| Maximum Turbo Power Consumption | 57 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM/CSO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 128 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5782VG | |
| Graphics | ||||
| Processor | Intel Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 7680 x 4320 at 60 Hz | ||
| Version | 2.0 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | E | ||
| Interface | WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC269 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

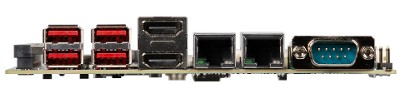

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.2 (Gen 2) | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 3 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| RAID support | RAID 0/1 | is supported | ||
| Power connection (onboard) | 1 Pce | |||
| RAID support | RAID 0/1 | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9672 XU 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 9~36V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 20 to 95%, non-condensing | ||
| Storage | 0 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 101,7 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
