3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Atom x5-E3940
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 1 x VGA
// 1 x HDMI
// 2 x G-LAN
// 2 x USB
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request

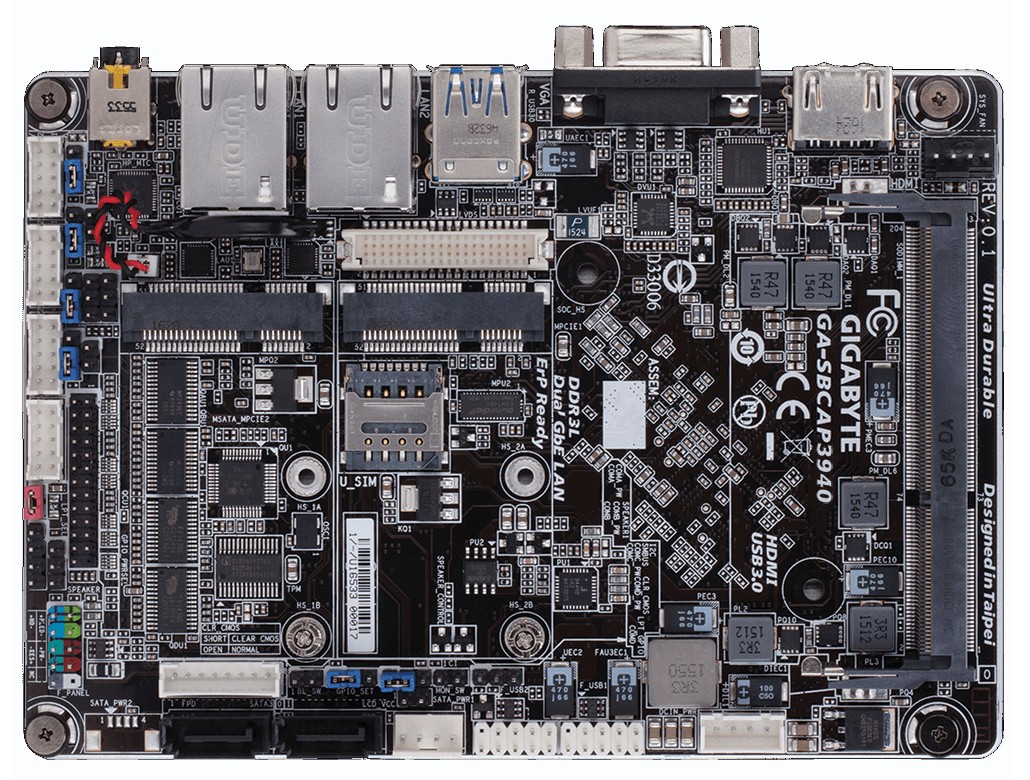

Basic Module: GIGAIPC GA-SBCAP3940
| General information | ||||
| SKU / Item Number | GA-SBCAP3940 | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Atom x5-E3940 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,6 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 9,5 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1600 / 1866 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 2 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Storage | mSATA | |||
| Audio | ||||
| Chipset | Realtek ALC255 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111G (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

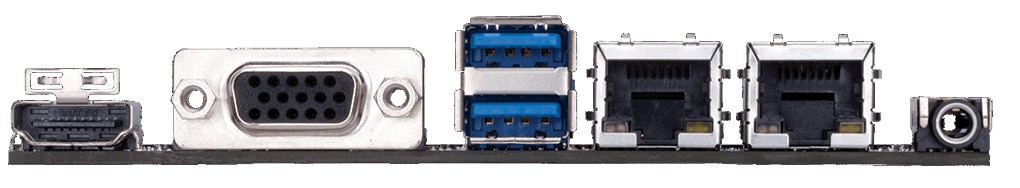

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Parallel | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS connectors | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 2 Pce | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, IEC 60950-1 | |||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | 2018 | |||
| Expected until | 2025 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
