3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// [Intel Core i3-7100E | Intel Core i5-7300U | Intel Core i7-7600U]
// 260-pin DDR4 SO-DIMM
// 1 x HDMI
// 1 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

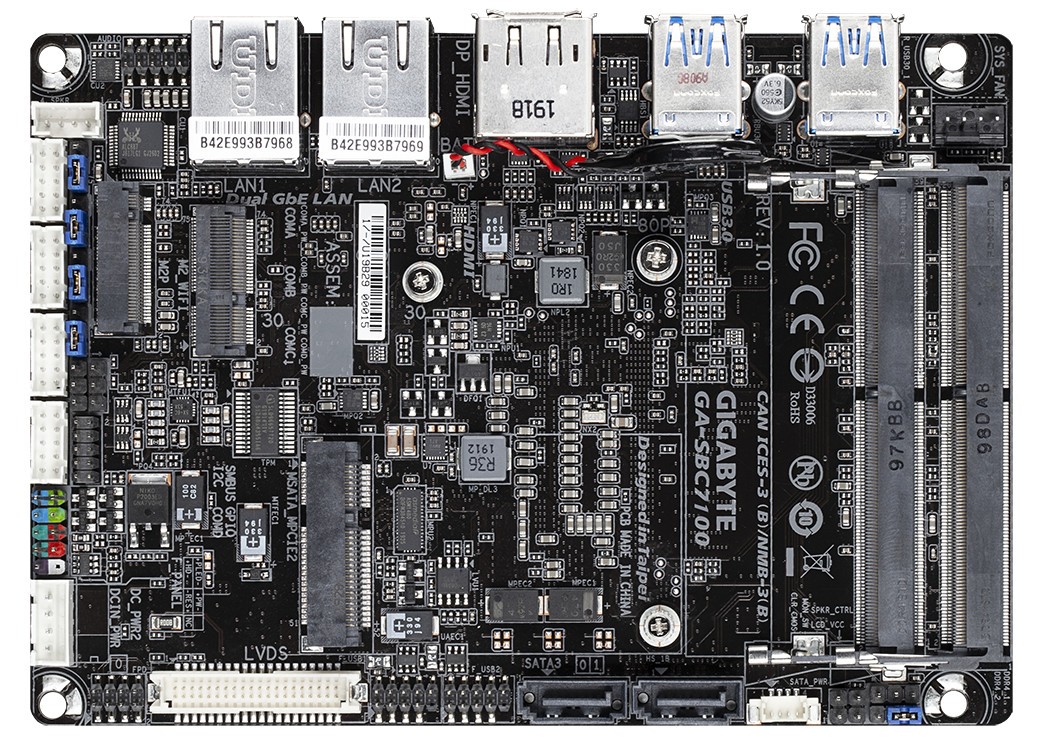

Basic Module: GIGAIPC GA-SBC7
| General information | ||||
| SKU / Item Number | GA-SBC7 | |||
| Product Basic Data | ||||
| Manufacturer | GIGAIPC | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Series | Intel Kaby Lake | |||
| Number | Intel Core i3-7100E, Intel Core i5-7300U, Intel Core i7-7600U | |||
| CPU cores | 2 Pce | |||
| Threads | 4 Pce | |||
| Base frequency | 2,4 GHz, 2,6 GHz, 2,8 GHz | |||
| Max Turbo Frequency | 2,4 GHz, 3,5 GHz, 3,9 GHz | |||
| Lithography | 14 nm | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| Memory Type | DDR4 | |||
| IC Data Rate | 2133 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI SPI 128 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6116D | |
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| DisplayPort | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1600 x 1200 at 60 Hz | ||
| Extension | ||||
| Mini PCI | Quantity | 1 Pce | ||
| PCI Interfaces | 1x Mini PCI | |||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4, SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Interface | WiFi + Bluetooth | ||
| M.2 Key IDs | M | |||
| Audio | ||||
| Chipset | Realtek ALC887 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219LV PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

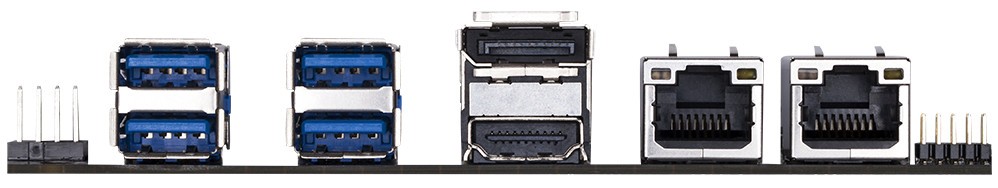

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power Supply | ||||
| Typ (Input) | DC | Range | 9 to 36V | |
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 9~36V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Supported OS | Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
