3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Celeron 3955U | Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 1 x VGA
// 1 x DP++
// LVDS
// 2 x G-LAN
// 4 x USB
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

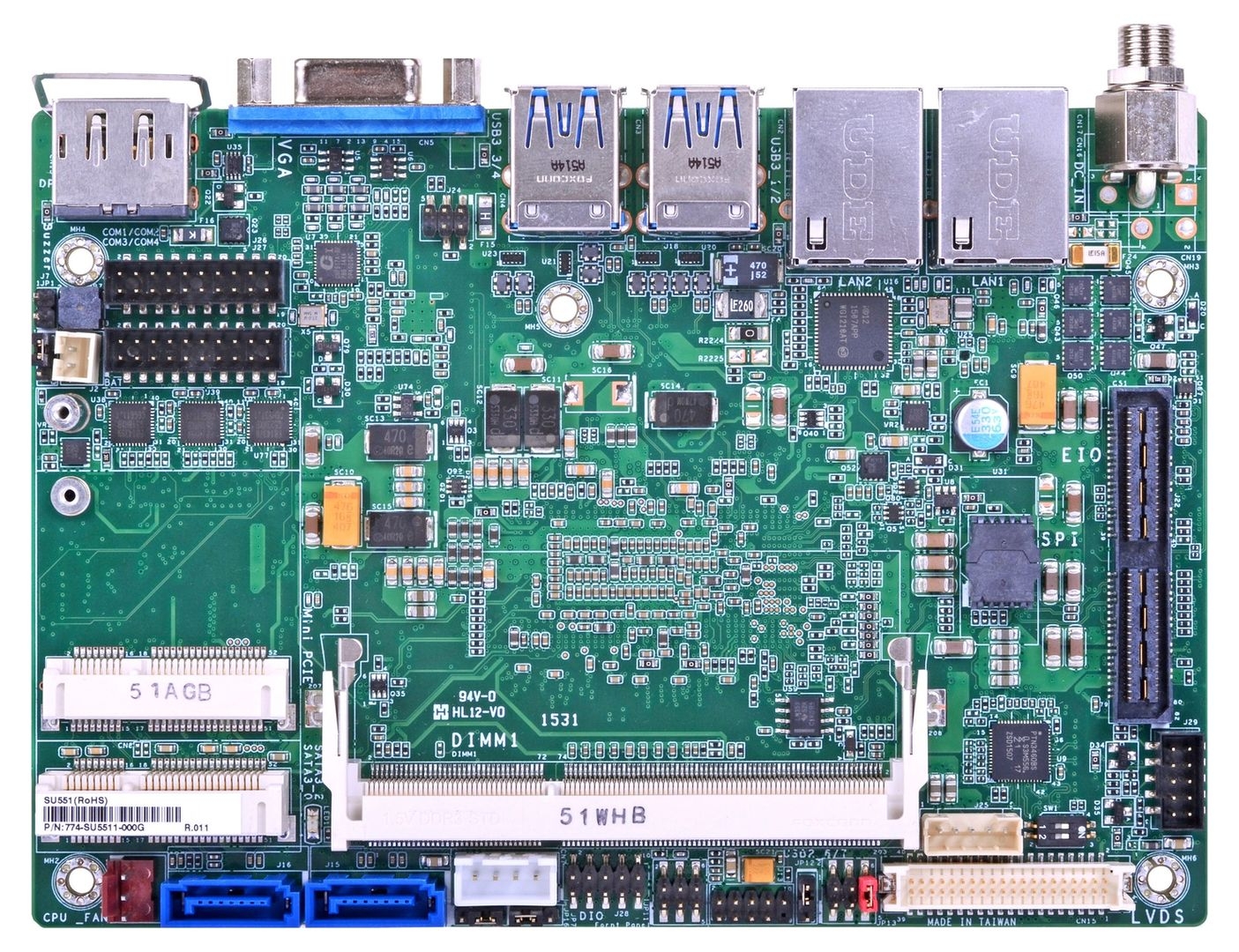

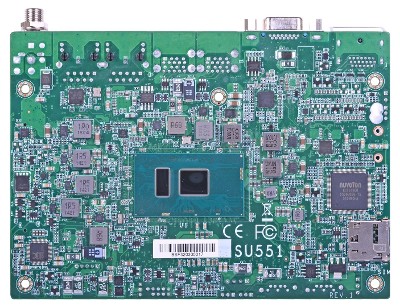

Basic Module: DFI SU551
| General information | ||||
| SKU / Item Number | SU551 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-SU5511-000G, 770-SU5511-100G, 770-SU5511-200G, 770-SU5511-300G, 770-SU5511-400G, 770-SU5511-500G, - | |||
| System | ||||
| Processor | Series | Intel Skylake | ||
| Number | Intel Celeron 3955U, Intel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1356 | |||
| Base frequency | 2 GHz, 2,3 GHz, 2,6 GHz | |||
| Cache | 2 MB, 3 MB, 4 MB | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6106D | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Performance feature | Support | DirectX 12, OpenCL 2.1, OpenGL 5.0 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, MPEG2 | |||
| HW encoding | AVC / H.264, HEVC / H.265, JPEG, MPEG2, VP 8, VP 9 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 48 bits | |||
| DDI (Digital Display Interfaces) | DP++ | Maximum resolution | 4096 x 2304 at 60 Hz | |
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| Full installation depth | Quantity | 1 Pce | ||
| USB support | Yes | |||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 4 Pce | ||
| Display | VGA | 1 Pce | ||
| DP++ | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8 (64-bit) | is supported | |||
| Windows 10 (64-bit) | is supported | |||
| Linux | Distribution | CentOS 7, Debian 8, Ubuntu 15.10 | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 430,978 h | ||
| MTBF at 45°C | 253,129 h | |||
| Calculation model | Telcordia Issue 2, Method I Case 3 | |||
| Environment | GB, GC – Ground Benign, Controlled | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q4/2016 | |||
| Expected until | Q4/2029 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
