3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// [AMD Ontario G-T40N | AMD Ontario G-T56N]
// AMD A50M (Hudson)
// 204-pin SO-DIMM DDR3
// 1 x VGA
// 1 x HDMI
// LVDS
// 2 x G-LAN
// 2 x USB
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x PCIe x1
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

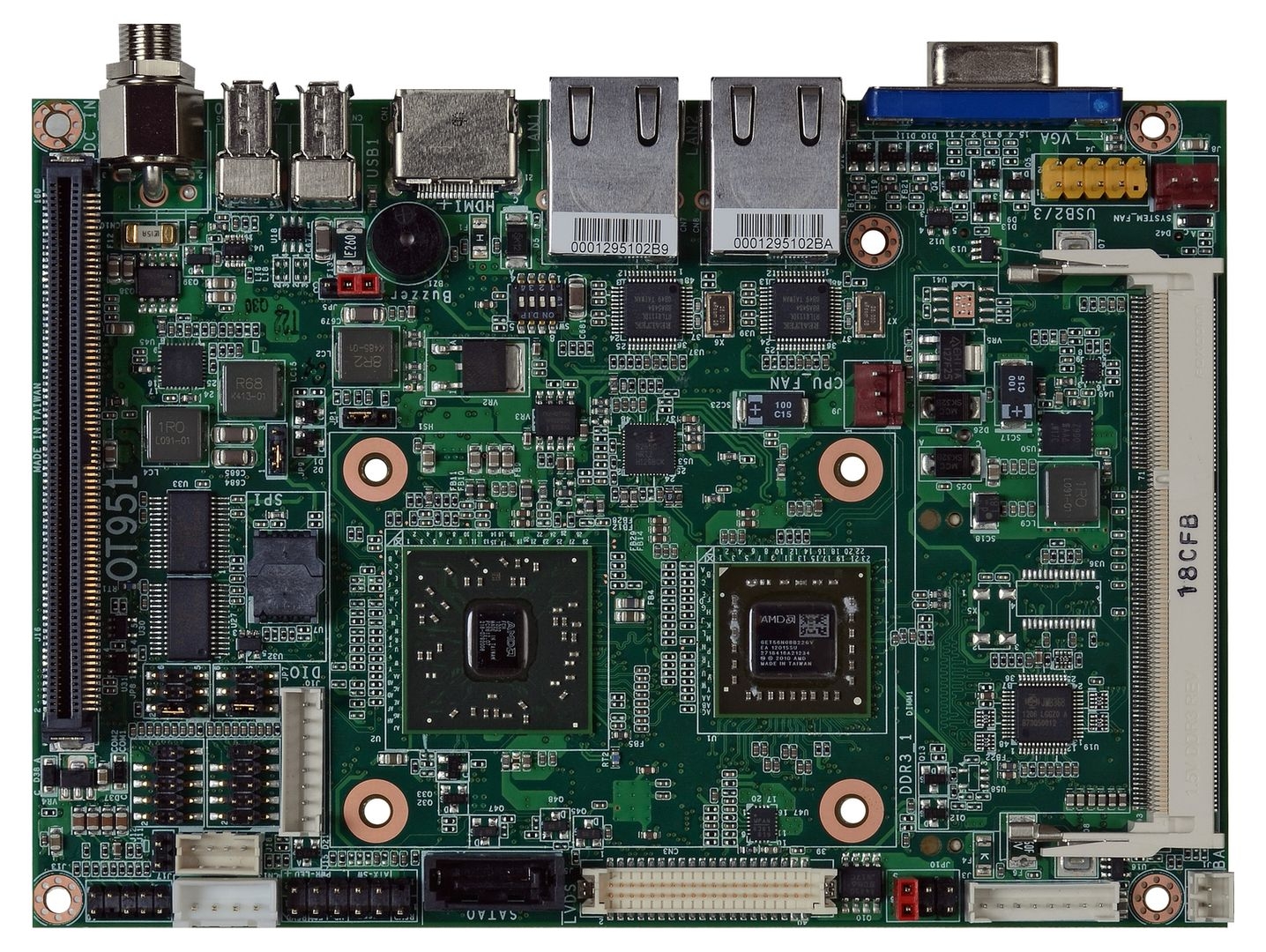

Basic Module: DFI OT951-D
| General information | ||||
| SKU / Item Number | OT951-D | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | AMD G-Series (Ontario) | ||
| Number | AMD Ontario G-T40N, AMD Ontario G-T56N | |||
| CPU cores | 2 Pce | |||
| Threads | 2 Pce | |||
| Socket | BGA 413 | |||
| Base frequency | 1 GHz, 1,65 GHz | |||
| Cache | 1 MB | |||
| Thermal Design Power (TDP) | 9 W, 18 W | |||
| Chipset | AMD A50M (Hudson) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3 | ||
| Frequency | 800 / 1066 MHz, 1066 / 1333 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI 64 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Winbond W83627DHG | |
| Graphics | ||||
| Processor | AMD Radeon HD 6290, AMD Radeon HD 6320 | |||
| Performance feature | Support | DirectX 11, OpenCL 1.1, OpenGL 3.2 | ||
| Hardware decoding | AVC / H.264, MPEG2, MPEG4, VC1 / WMV9 | |||
| VGA | Maximum resolution | 1600 x 1200 at 60 Hz, 2048 x 1536 at 60 Hz | ||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| PCIe x1 | x1 Signal | 2 Pce | ||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe, 2x PCIe x1 | |||
| Storage | CF | |||
| Audio | ||||
| Chipset | Realtek ALC886 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111DL / DP (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

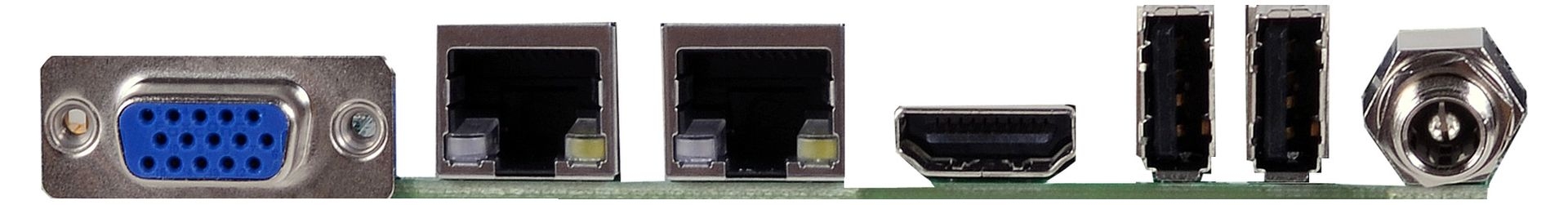

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows XP (32/64-bit) | is supported | ||
| Windows 7 (32/64-bit) | is supported | |||
| Supported OS | Windows | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Passive | Thermal Management | -, Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q2/2012 | |||
| Guaranteed until | Q2/2020 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
