3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core Ultra 5 Processor 125U | Intel Core Ultra 5 Processor 135H | Intel Core Ultra 5 Processor 225U | Intel Core Ultra 7 Processor 155U | Intel Core Ultra 7 Processor 165H | Intel Core Ultra 7 Processor 255U]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x USB (internal)
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

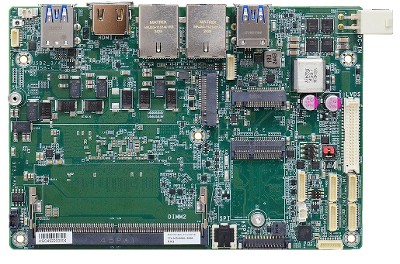

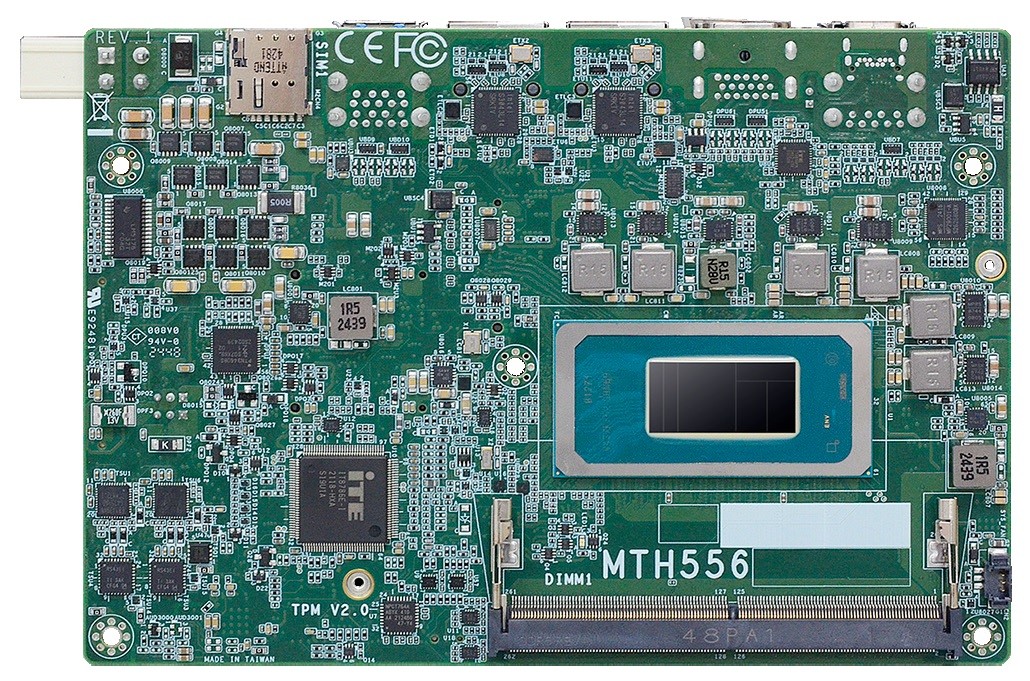

Basic Module: DFI MTH556
| General information | ||||
| SKU / Item Number | MTH556 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-MTH5561-000G, 770-MTH5561-100G, 770-MTH5561-200G, 770-MTH5561-300G, 770-MTH5561-400G, 770-MTH5561-500G | |||
| System | ||||
| Processor | Vertical Segment | Mobile | ||
| Number | Intel Core Ultra 5 Processor 125U, Intel Core Ultra 5 Processor 135H, Intel Core Ultra 5 Processor 225U, Intel Core Ultra 7 Processor 155U, Intel Core Ultra 7 Processor 165H, Intel Core Ultra 7 Processor 255U | |||
| CPU cores | 12 Pce, 14 Pce, 16 Pce | |||
| Threads | 14 Pce, 18 Pce, 22 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,3 GHz, 1,4 GHz, 1,5 GHz, 1,7 GHz, 2 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,6 GHz, 4,8 GHz, 5 GHz, 5,2 GHz | |||
| Efficient-core base clock frequency | 0,8 GHz, 0,9 GHz, 1,2 GHz, 1,3 GHz, 1,7 GHz | |||
| Efficient-core Max Turbo Frequency | 3,6 GHz, 3,8 GHz, 4,2 GHz | |||
| Cache | 12 MB, 18 MB, 24 MB | |||
| Thermal Design Power (TDP) | 15 W, 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 5600 MT/s | |||
| Slots | 2 Pce | |||
| Maximum expansion | 96 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8786E | |
| Graphics | ||||
| Processor | Intel Arc Graphics, Intel Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 24 Hz | ||
| Version | 1.4b | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), SATA III, USB 2.0, USB 3.0 | |||
| Supported dimensions | 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 4), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

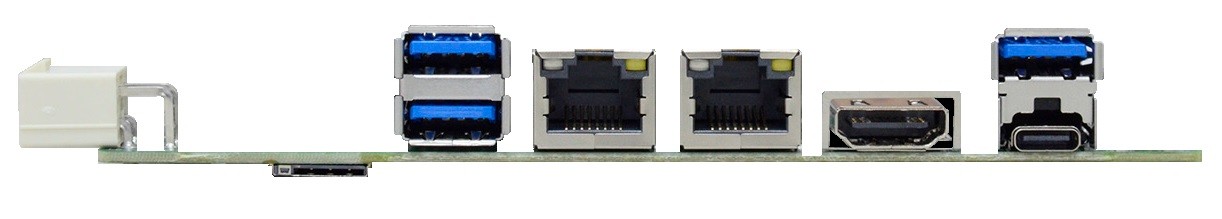

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 2) | 3 Pce | ||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (1.27 mm Pitch) | 1 Pce | |
| Serial | RS-232 | Ports (1.27 mm Pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (1.27 mm Pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows Embedded | Windows 10 Enterprise IoT LTSC (2021) | wind support | ||
| Windows 11 IoT | is supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows Embedded | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C, -20° down to 70°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
