3.5" Mainboards
// 3.5" Industrial Mainboards
// [NXP i.MX 8DualXPlus | NXP i.MX 8M Quad Plus]
// [2 GB | 4 GB | 8 GB]
// 1 x HDMI
// LVDS
// 2 x G-LAN
// 4 x USB
// 3 x USB (internal)
// 2 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

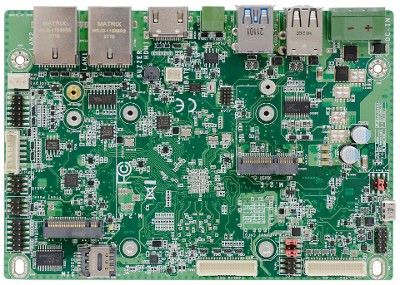

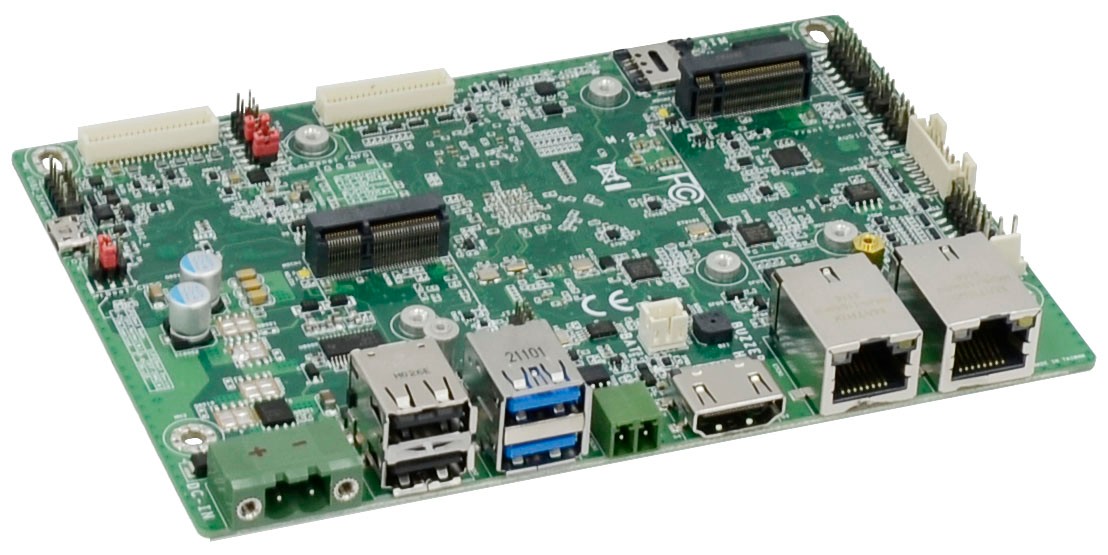

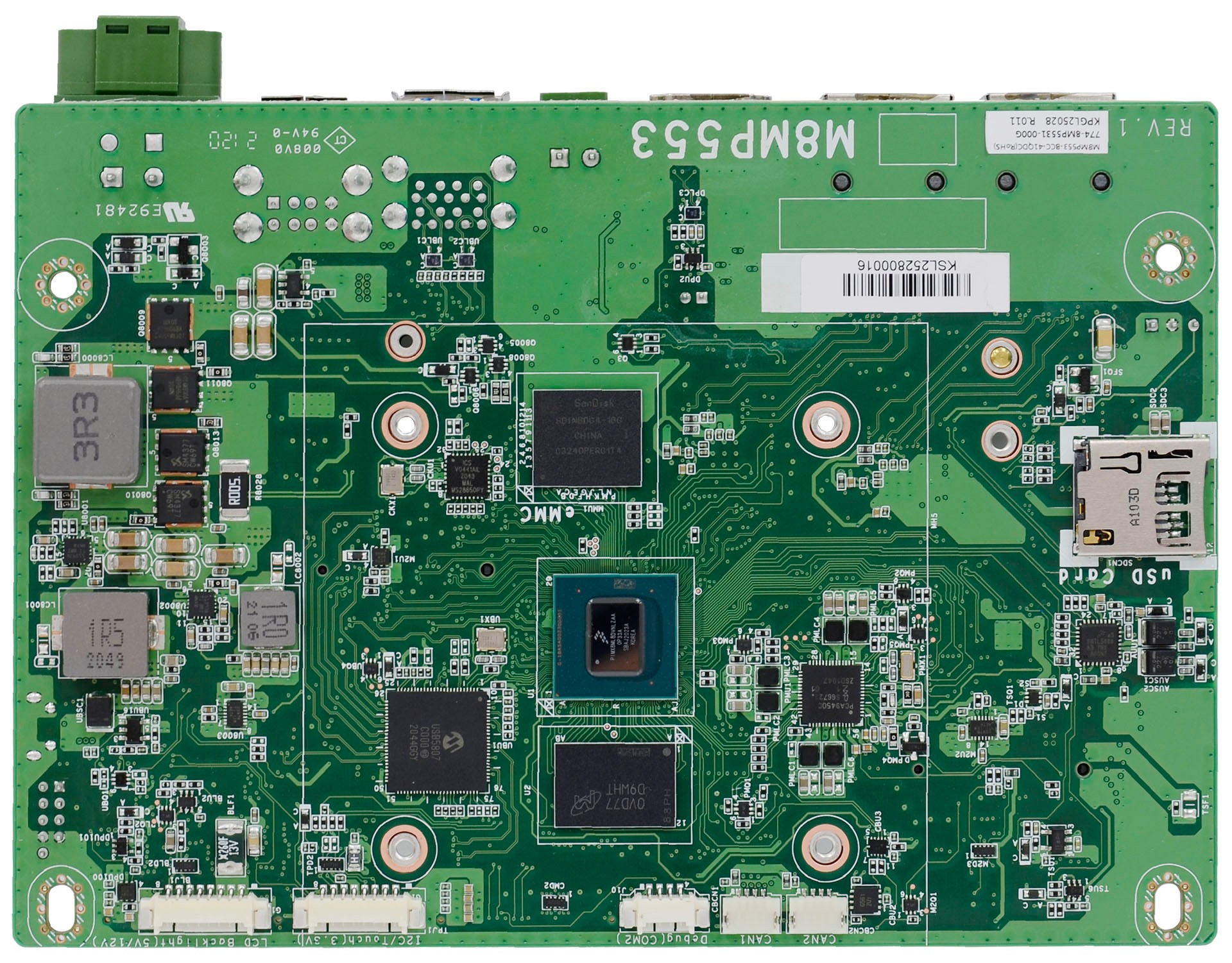

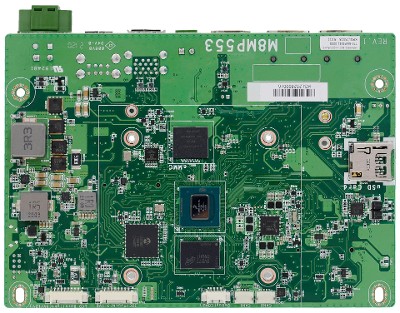

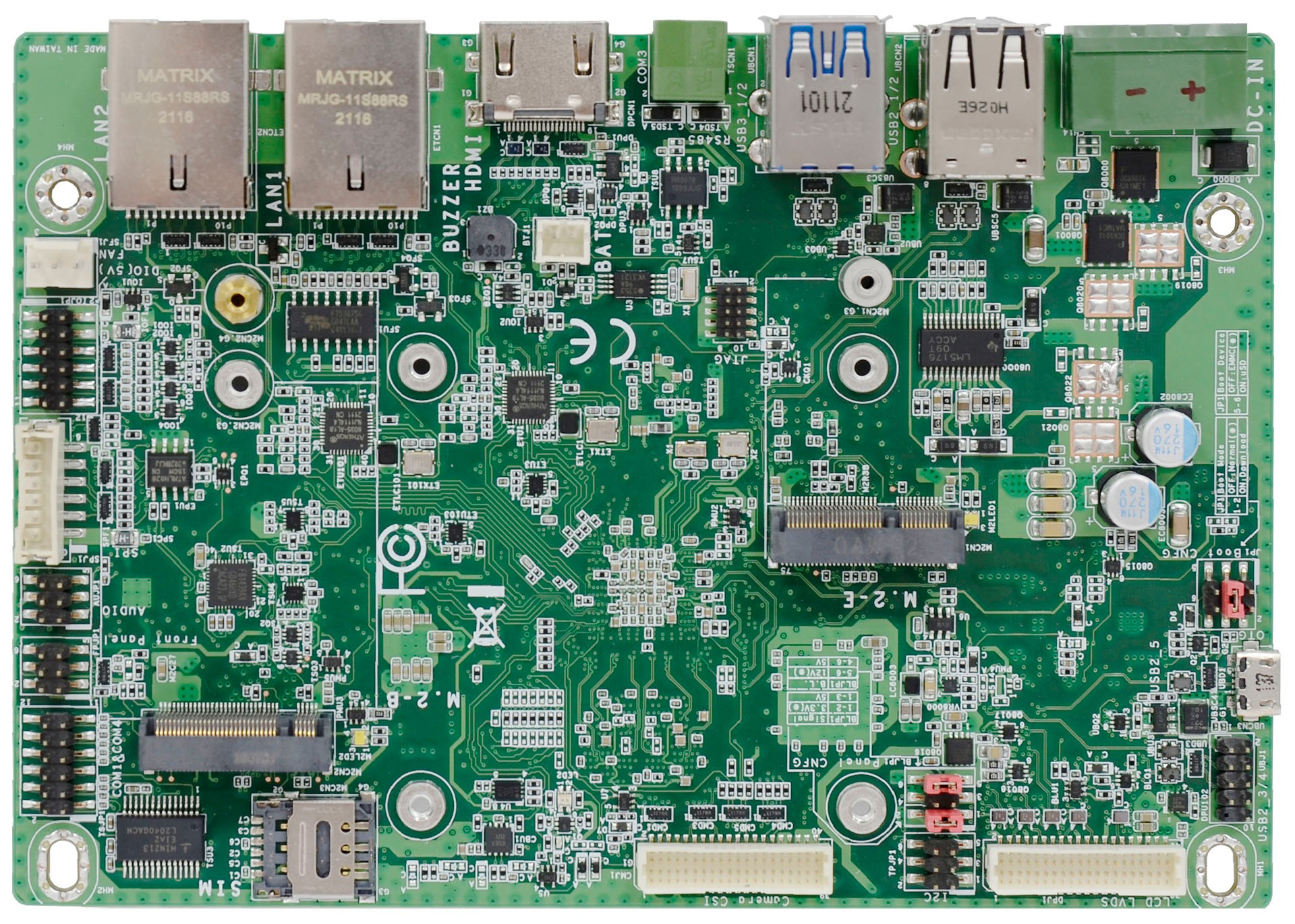

Basic Module: DFI M8MP553
| General information | ||||
| SKU / Item Number | M8MP553 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-8MP5531-200G, 770-8MP5531-300G, 770-8MP5531-400G | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8DualXPlus, NXP i.MX 8M Quad Plus | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Base frequency | 1,6 GHz | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 8 GB | |||
| Internal memory | 2 GB, 4 GB, 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| eMMC version | 5.1 | |||
| Graphics | ||||
| Processor | Vivante GC7000UL | |||
| Performance feature | Hardware decoding | AVC / H.264, HEVC / H.265, VP 8, VP 9 | ||
| HW encoding | AVC / H.264, HEVC / H.265 | |||
| Screens (Multi-display) | 2 displays | |||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen. 2), USB 2.0, USB 3.1 Gen 2 | |||
| Supported dimensions | 2242, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Audio | ||||
| Chipset | NXP SGTL5000 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Atheros AR8035 (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.1 Gen 1 | 2 Pce | |||
| Serial | RS-485 | 2-pin terminal connector | 1 Pce | |
| Display | HDMI | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB On-The-Go (USB OTG) | Micro USB | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (Interface) | 2 Pce | ||
| Protocol | CAN 2.0B | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 3.0 | ||
| Android | Release | 10 | ||
| Supported OS | Android, Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -30°C to 80°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q4 / 2021 | |||
| Expected until | Q1 / 2036 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
