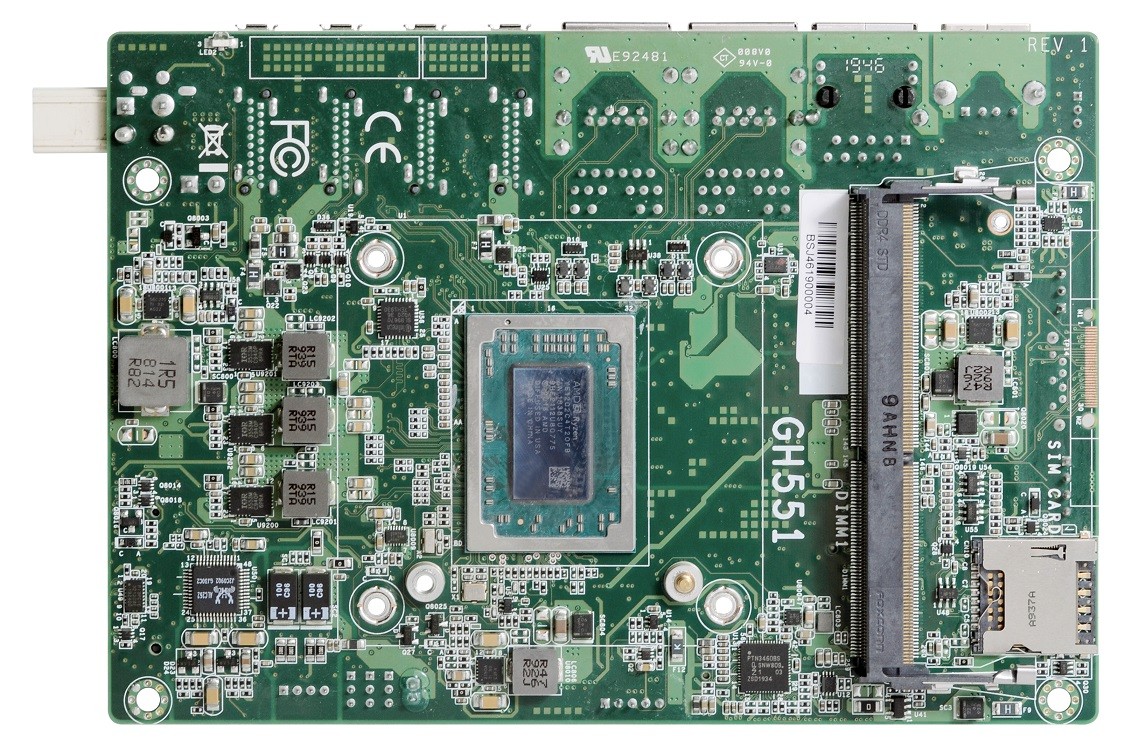

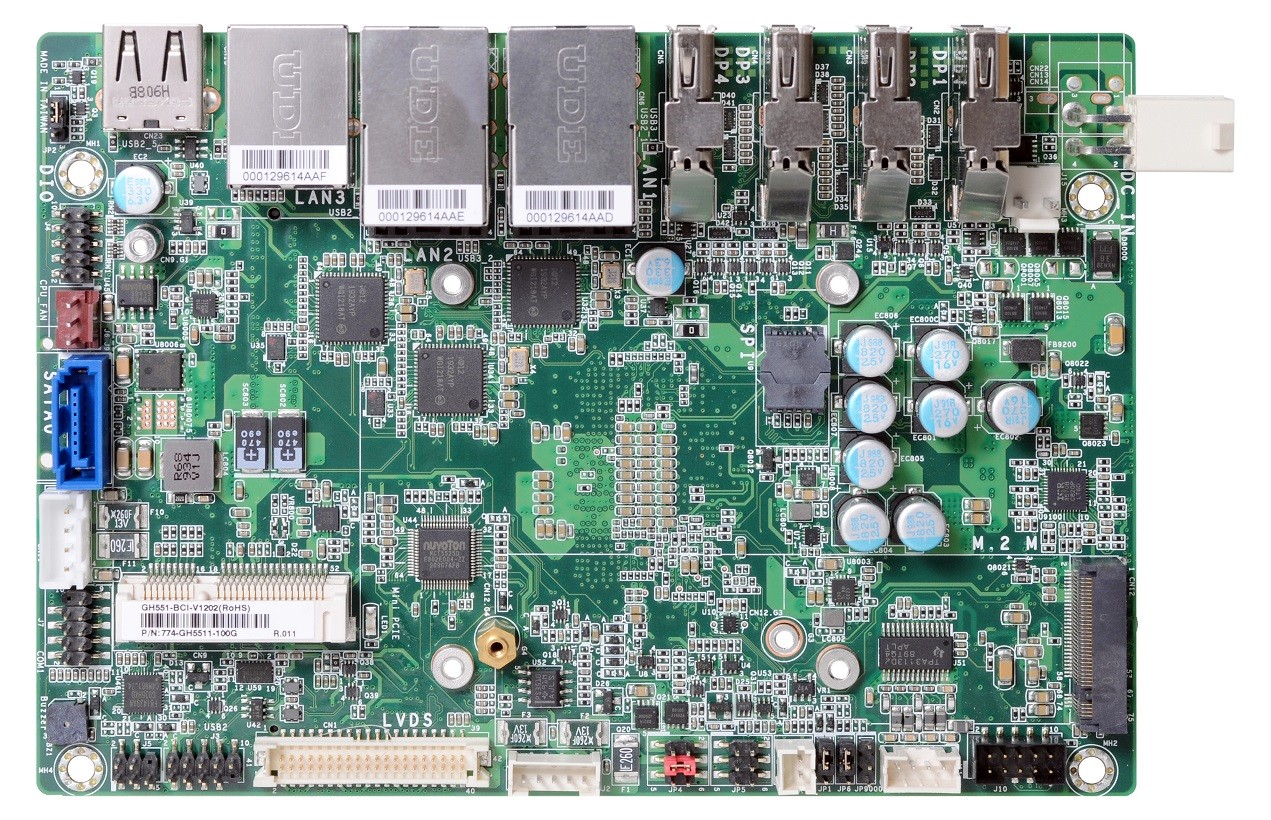

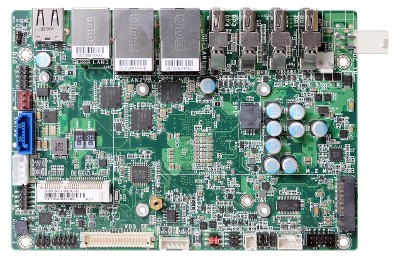

DFI GH551-BCI-R1505G View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen R1505G, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 2 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,3 GHz |
|
|
Number |
AMD Ryzen R1505G |
|
|
CPU cores |
2 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,4 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-400G |
| Graphics |
Screens (Multi-display) |
3 displays |
| External I/O |
Display |
DP++ |
2 Pce |
| Internal I/O |
|
LVDS connectors |
1 Pce |
|
|
LCD / Inverter Power |
Yes |
|
|
LVDS (Low Voltage Differential Signaling) |
Dual channel |
DFI GH551-BCI-R1606G View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen R1606G, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 3 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,5 GHz |
|
|
Number |
AMD Ryzen R1606G |
|
|
CPU cores |
2 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,6 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-300G |
| Graphics |
Screens (Multi-display) |
3 displays |
| External I/O |
Display |
DP++ |
3 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-BCI-R2312 View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen Embedded R2312, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 2 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,5 GHz |
|
|
Number |
AMD Ryzen Embedded R2312 |
|
|
CPU cores |
2 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,7 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-B00G |
| Graphics |
Screens (Multi-display) |
3 displays |
| External I/O |
Display |
DP++ |
2 Pce |
| Internal I/O |
|
LVDS connectors |
1 Pce |
|
|
LCD / Inverter Power |
Yes |
|
|
LVDS (Low Voltage Differential Signaling) |
Dual channel |
DFI GH551-BCI-R2314 View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen Embedded R2314, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 3 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,5 GHz |
|
|
Number |
AMD Ryzen Embedded R2314 |
|
|
CPU cores |
4 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,1 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-A00G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
3 Pce |
| Internal I/O |
|
LVDS connectors |
1 Pce |
|
|
LCD / Inverter Power |
Yes |
|
|
LVDS (Low Voltage Differential Signaling) |
Dual channel |
DFI GH551-BCI-R2514 View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen Embedded R2514, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,7 GHz |
|
|
Number |
AMD Ryzen Embedded R2514 |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2,1 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-800G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-BCI-R2514_LVDS View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen Embedded R2514, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 3 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,7 GHz |
|
|
Number |
AMD Ryzen Embedded R2514 |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2,1 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-900G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
3 Pce |
| Internal I/O |
|
LVDS connectors |
1 Pce |
|
|
LCD / Inverter Power |
Yes |
|
|
LVDS (Low Voltage Differential Signaling) |
Dual channel |
DFI GH551-BCI-V1202B View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen V1202B, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,2 GHz |
|
|
Number |
AMD Ryzen V1202B |
|
|
CPU cores |
2 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,3 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-100G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
1 Pce |
|
|
LCD / Inverter Power |
Yes |
|
|
LVDS (Low Voltage Differential Signaling) |
Dual channel |
DFI GH551-BCI-V1605B View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen V1605B, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
- |
|
|
Max Turbo Frequency |
3,6 GHz |
|
|
Number |
AMD Ryzen V1605B |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2 GHz |
|
|
Cache |
2 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-000G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-BCI-V1605B(DC) View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen V1605B, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
- |
|
|
Max Turbo Frequency |
3,6 GHz |
|
|
Number |
AMD Ryzen V1605B |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2 GHz |
|
|
Cache |
2 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
DC Power Jack |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-5° to 65°C |
| Product Basic Data |
Product ID |
770-GH5512-700G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-ECI-R1606G View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen R1606G, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 3 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,5 GHz |
|
|
Number |
AMD Ryzen R1606G |
|
|
CPU cores |
2 Pce |
|
|
Threads |
4 Pce |
|
|
Base frequency |
2,6 GHz |
|
|
Cache |
1 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-30°C to 80°C |
| Product Basic Data |
Product ID |
770-GH5512-600G |
| Graphics |
Screens (Multi-display) |
3 displays |
| External I/O |
Display |
DP++ |
3 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-ECI-V1404I View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen V1404I, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,6 GHz |
|
|
Number |
AMD Ryzen V1404I |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2 GHz |
|
|
Cache |
2 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-30°C to 80°C |
| Product Basic Data |
Product ID |
770-GH5512-200G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
DFI GH551-ECI-V1605B View full datasheet Close datasheet
|
|
3.5" Industrial Mainboards, AMD Ryzen V1605B, SoC (System on a Chip), 260-pin DDR4 SO-DIMM, 4 x DP++, LVDS, 3 x G-LAN, 3 x USB, 1 x USB (internal), 1 x Seriell I/O, Digital I/O (8-Bit), 1 x Mini-PCIe, Power Supply DC 12V
|
| System |
Processor |
Series |
AMD G-Series (Ontario) |
|
|
Max Turbo Frequency |
3,6 GHz |
|
|
Number |
AMD Ryzen V1605B |
|
|
CPU cores |
4 Pce |
|
|
Threads |
8 Pce |
|
|
Base frequency |
2 GHz |
|
|
Cache |
2 MB |
| Power Supply |
Typ (Input) |
DC |
Connector |
4-pin connector (vertical) |
|
|
|
|
- |
| Mechanical / Environment |
Temperature |
Operation |
-30°C to 80°C |
| Product Basic Data |
Product ID |
770-GH5512-500G |
| Graphics |
Screens (Multi-display) |
4 displays |
| External I/O |
Display |
DP++ |
4 Pce |
| Internal I/O |
|
LVDS connectors |
- |
|
|
LCD / Inverter Power |
- |
|
|
LVDS (Low Voltage Differential Signaling) |
- |
