3.5" Mainboards
The product is EOL (End Of Life)!
// 3.5" Industrial Mainboards
// [Intel Atom E3815 | Intel Atom E3826 | Intel Atom E3845 | Intel Celeron J1900]
// SoC (System on a Chip)
// [2 GB | 4 GB]
// 1 x VGA
// 1 x Displayport
// LVDS
// 2 x G-LAN
// 2 x USB
// 4 x USB (internal)
// 3 x Seriell I/O
// [0 GB | 8 GB | 16 GB | 32 GB] eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

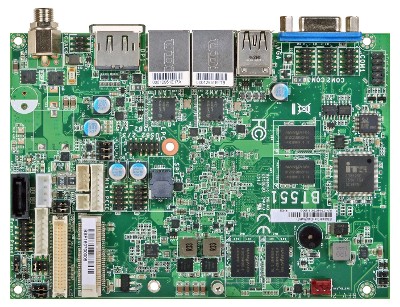

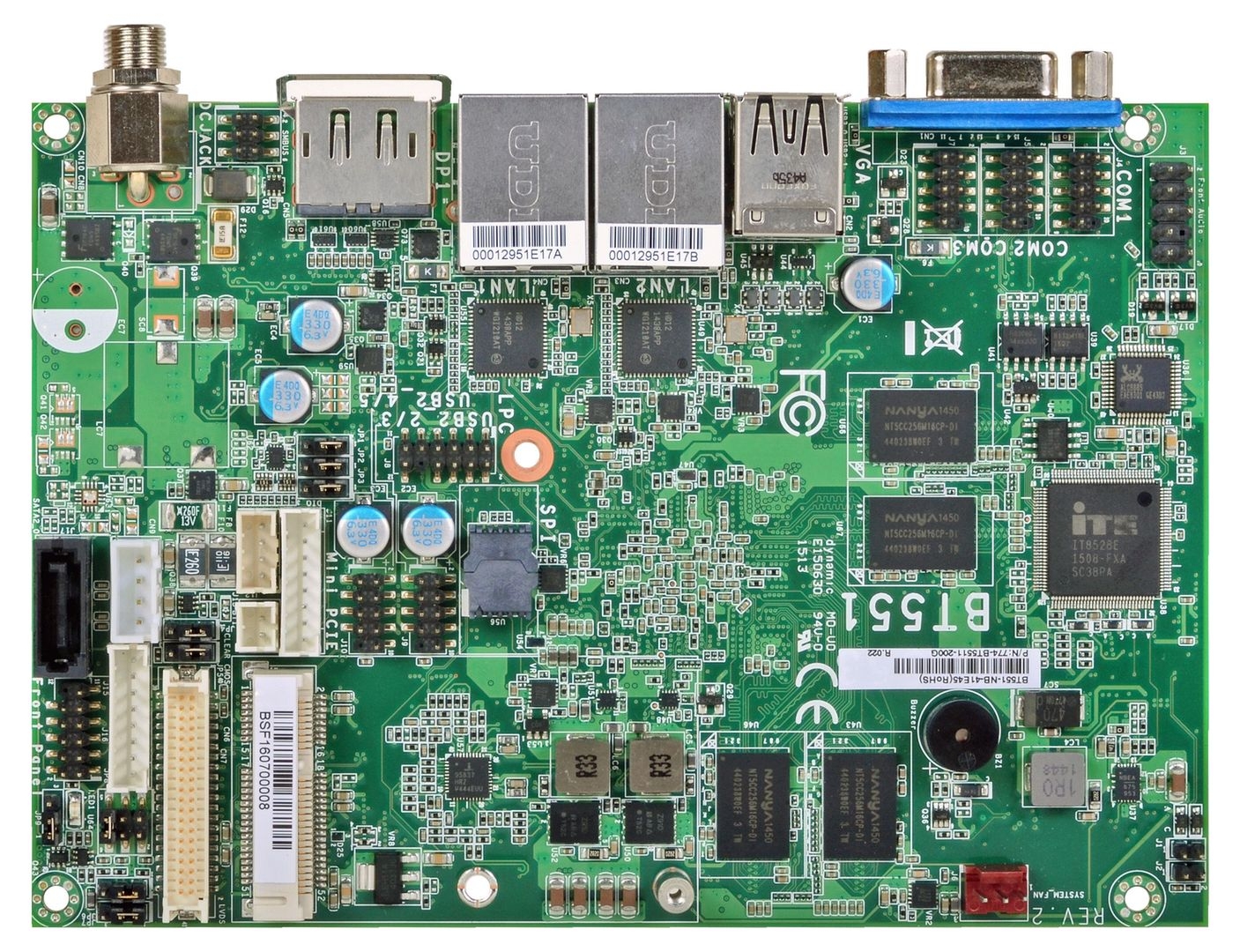

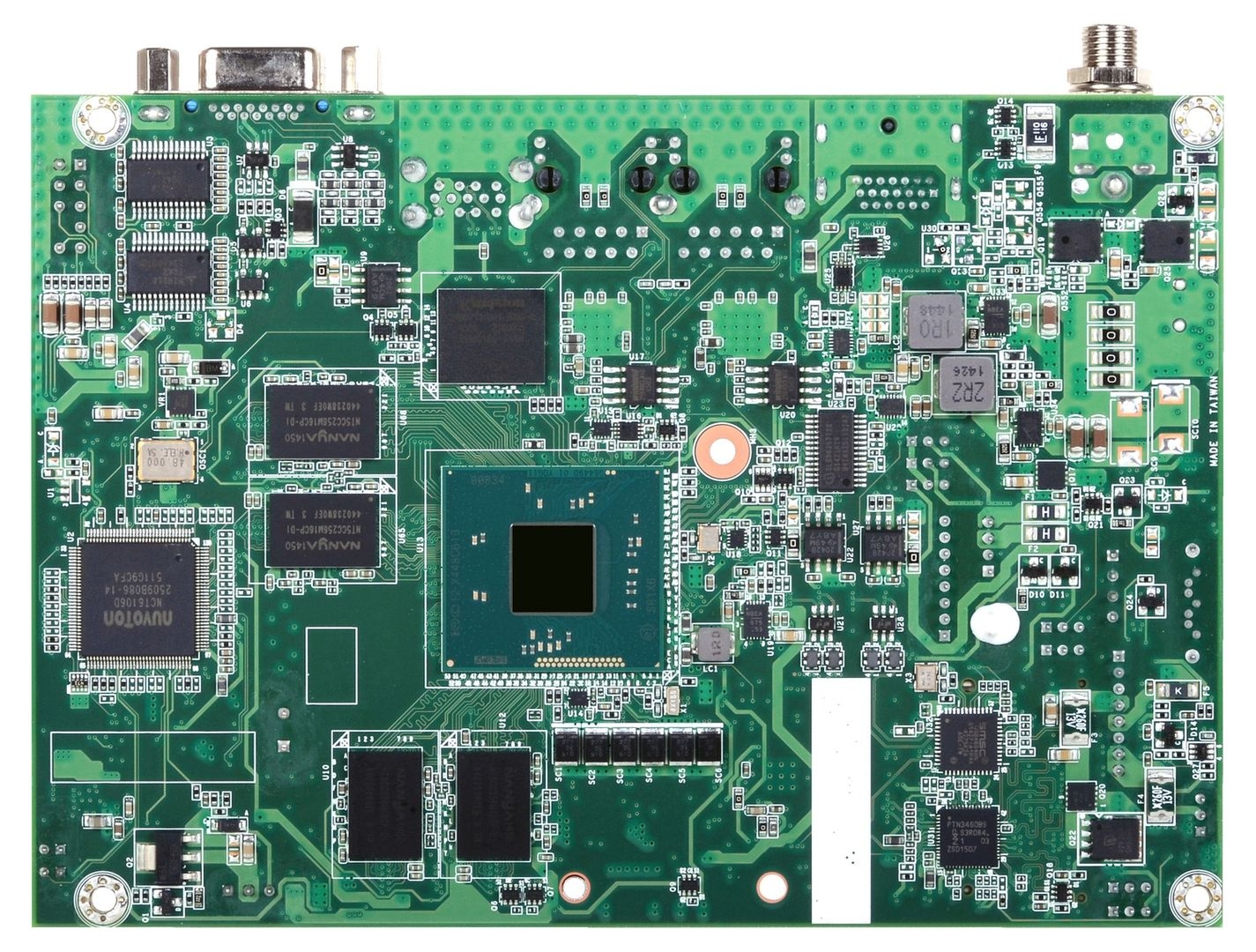

Basic Module: DFI BT551
| General information | ||||
| SKU / Item Number | BT551 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| System | ||||
| Processor | Series | Intel Bay Trail | ||
| Number | Intel Atom E3815, Intel Atom E3826, Intel Atom E3845, Intel Celeron J1900 | |||
| CPU cores | 1 Pce, 2 Pce, 4 Pce | |||
| Threads | 1 Pce, 2 Pce, 4 Pce | |||
| Socket | BGA 1170 | |||
| Base frequency | 1,46 GHz, 1,91 GHz, 2 GHz | |||
| Cache | 0,512 MB, 1 MB, 2 MB | |||
| Thermal Design Power (TDP) | 5 W, 7 W, 10 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 0 GB, 8 GB, 16 GB, 32 GB | ||
| BIOS | Insyde SPI 64 Mbit | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6106D | |
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Performance feature | Support | DirectX 11, OGL 4.0, OpenCL 1.2 | ||
| Hardware decoding | AVC / H.264, MPEG2, MVC, VC1 / WMV9, VP 8 | |||
| VGA | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| DisplayPort | Maximum resolution | 2560 x 1600 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||
| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.0 | 1 Pce | |||
| Display | VGA | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 2 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| DIO Power | 4-pin (2 mm pitch) | |||
| SMBus | 1 Pce | |||
| LPC | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | S-ATA R2.0 (3 Gbps, 300 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Chassis Intrusion Detection | Yes | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 7 (32/64-bit) | is supported | ||
| Windows 8.1 (32-bit) | is supported | |||
| Windows 8.1 (64-bit) | is supported | |||
| Windows Embedded | Windows 10 Enterprise IoT LTSB (2016) | is supported | ||
| Windows 10 Enterprise IoT LTSC (2019) | is supported | |||
| Supported OS | Windows, Windows Embedded | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| MTBF (Mean Time Between Failures) | MTBF at 25°C | 382,618 h | ||
| MTBF at 45°C | 225,868 h | |||
| Calculation model | Telcordia Issue 2, Method I Case 3 | |||
| Environment | GB, GC – Ground Benign, Controlled | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
| Lifecycle | ||||
| Production start | Q4/2015 | |||
| Expected until | Q4/2028 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
