3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Atom x5-E3930 | Intel Atom x5-E3940 | Intel Atom x7-E3950 | Intel Celeron N3350 | Intel Pentium N4200]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// 1 x VGA
// 1 x HDMI
// LVDS
// 2 x G-LAN
// 4 x USB
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

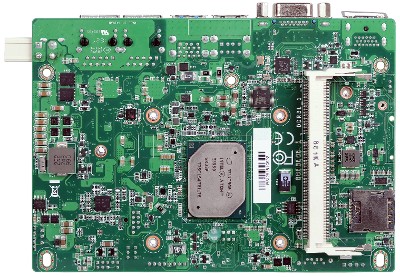

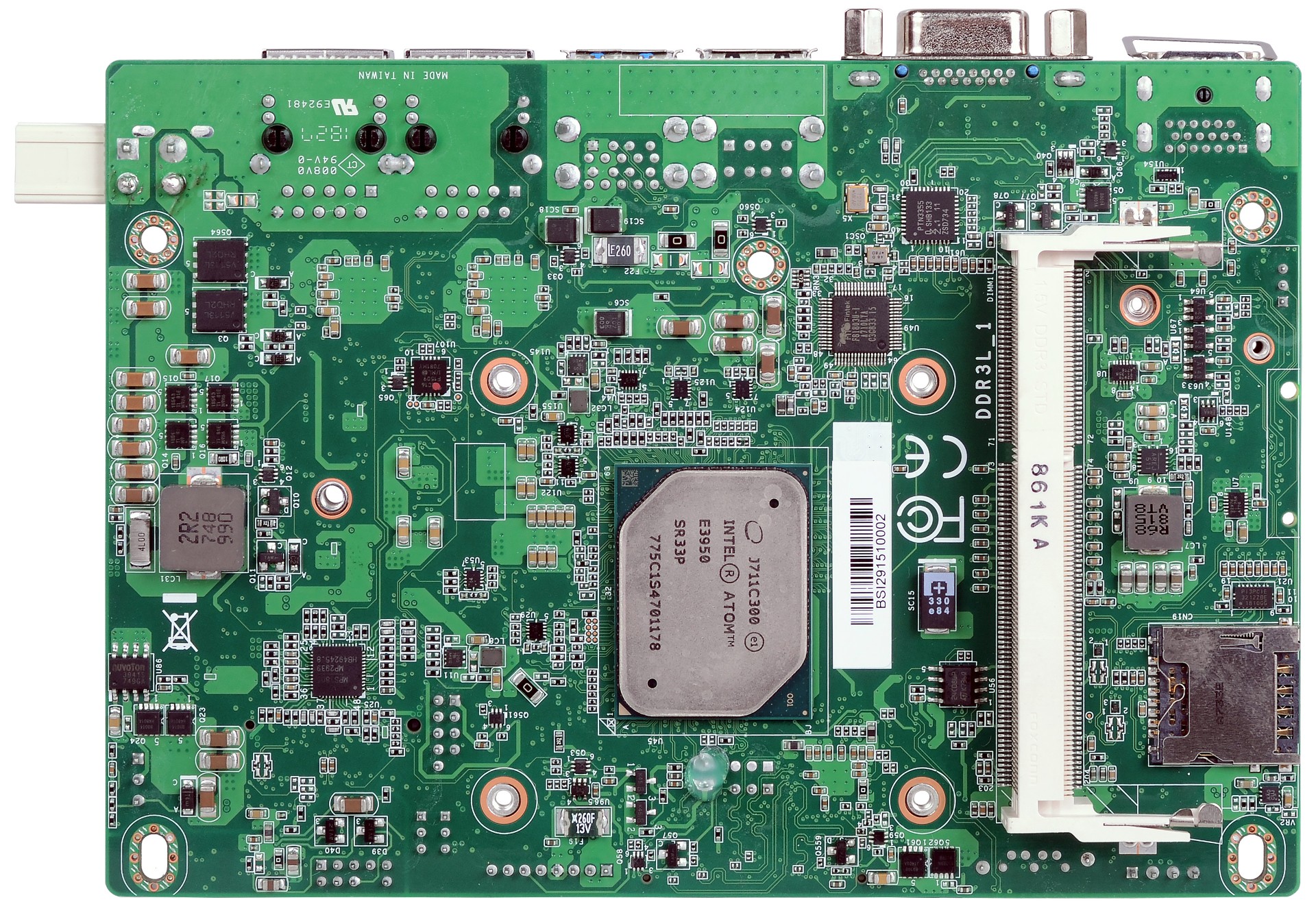

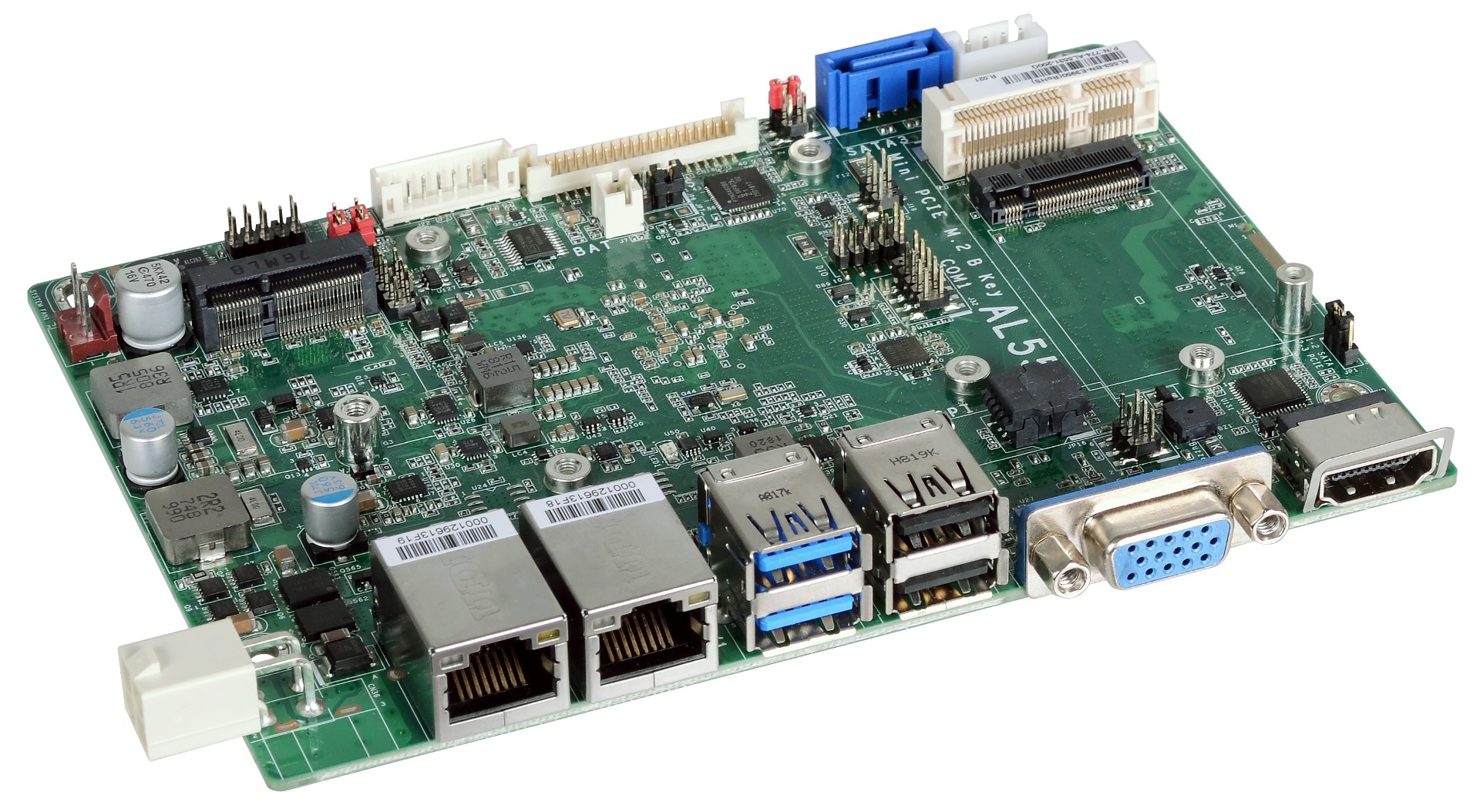

Basic Module: DFI AL553
| General information | ||||
| SKU / Item Number | AL553 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-AL5531-000G, 770-AL5531-100G, 770-AL5531-200G, 770-AL5531-300G, 770-AL5531-400G, 770-AL5531-500G, 770-AL5531-600G, 770-AL5531-700G, 770-AL5531-800G, - | |||
| System | ||||
| Processor | Series | Intel Apollo Lake | ||
| Number | Intel Atom x5-E3930, Intel Atom x5-E3940, Intel Atom x7-E3950, Intel Celeron N3350, Intel Pentium N4200 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 2 Pce, 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,1 GHz, 1,3 GHz, 1,6 GHz | |||
| Max Turbo Frequency | 1,8 GHz, 2 GHz, 2,4 GHz, 2,5 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 6 W, 6,5 W, 9,5 W, 12 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Frequency | 1600 / 1866 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | Insyde SPI 128 Mbit | |||
| Graphics | ||||
| Processor | Intel HD Graphics | |||
| Performance feature | Support | DirectX 11.1, OpenCL 1.2, OpenGL 3.0, OpenGL 4.2 | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, MPEG2, MPEG4, VC1 / WMV9, VP 8 | |||
| HW encoding | AVC / H.264, MPEG2, MPEG4 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | B | |
| Interface | PCIe ×1 (Gen. 2), SATA III, USB 2.0 | |||
| Supported dimensions | 2242 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210AT PCIe (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

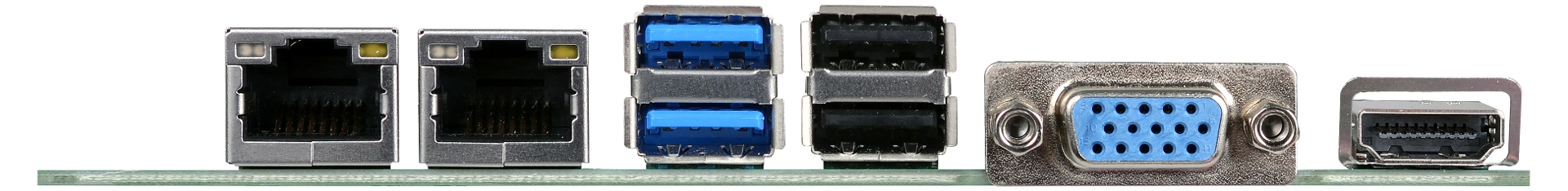

| External I/O | ||||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.0 | 2 Pce | |||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Audio | Line Out | 1 Pce | ||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 9 to 36V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Ubuntu 16.04 | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° down to 70°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 102 mm | |||
| Deep | 146 mm | |||
| Lifecycle | ||||
| Production start | Q1/2019 | |||
| Expected until | Q4/2031 | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 3 years | |||
