3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Celeron J3455
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// 32 GB eMMC
// Digital I/O (8-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 36V
Sales only to business customers.
Delivery time: upon request

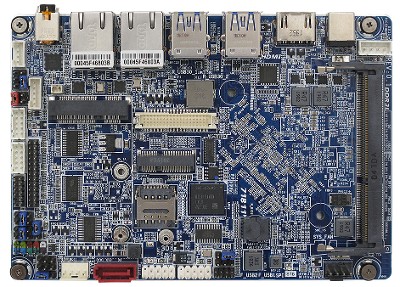

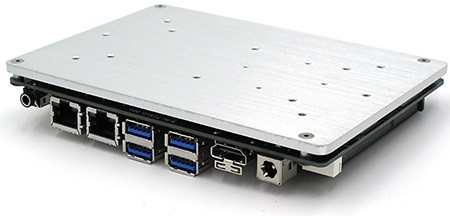

Basic Module: BCM (Baseboard Management Controller) ECM-3455J
| General information | ||||
| SKU / Item Number | ECM-3455J | |||
| Product Basic Data | ||||
| Manufacturer | BCM (Baseboard Management Controller) | |||
| System | ||||
| Processor | Vertical Segment | Desktop | ||
| Series | Intel Apollo Lake | |||
| Number | Intel Celeron J3455 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,5 GHz | |||
| Max Turbo Frequency | 2,3 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Lithography | 14 nm | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| Frequency | 1600 / 1866 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 32 GB | ||
| BIOS | AMI UEFI 64 Mbit SPI | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 32 GB | |||
| Graphics | ||||
| Processor | Intel HD Graphics 500 | |||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7511B | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| PCI Express version | 2.0 | |||
| Max. PCI Express lanes | 6 Pce | |||
| Audio | ||||
| Chipset | Realtek ALC255 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111H (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Realtek RTL8111H (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

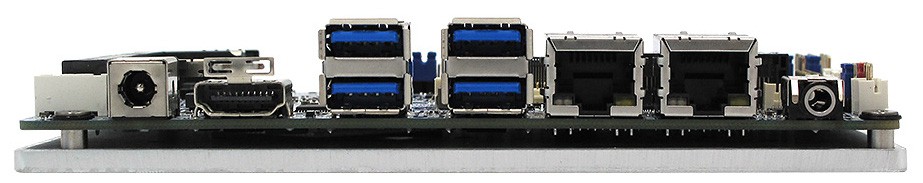

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.1 Gen 1 | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS interface | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| SMBus | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Infineon SLB 9665 TT 2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 9 to 36V | |
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 9~36V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Windows, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 101 mm | |||
| Deep | 145 mm | |||
| Weight | 200 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| UL | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
