3.5" Mainboards
// 3.5" Industrial Mainboards
// NXP i.MX 6Quad
// SoC (System on a Chip)
// 1 GB
// 1 x HDMI
// 1 x G-LAN
// 2 x USB
// 3 x USB (internal)
// 2 x Seriell I/O
// 4 GB eMMC
// Digital I/O (10-Bit)
// 1 x Mini-PCIe
// Power Supply DC 9 to 24 V
Sales only to business customers.
Delivery time: upon request

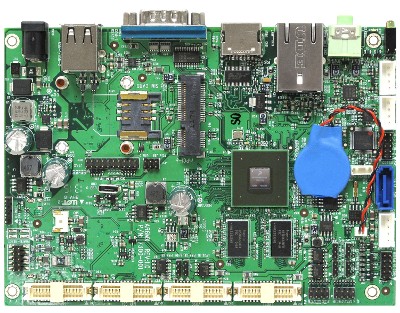

Basic Module: BCM (Baseboard Management Controller) AR6MXQ
| General information | ||||
| SKU / Item Number | AR6MXQ | |||
| Product Basic Data | ||||
| Manufacturer | BCM (Baseboard Management Controller) | |||
| System | ||||
| Processor | Series | ARM Cortex-A9 | ||
| Number | NXP i.MX 6Quad | |||
| CPU cores | 4 Pce | |||
| Socket | BGA PoP | |||
| Base frequency | 1,2 GHz | |||
| Cache | 1 MB | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Internal memory | 1 GB | ||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 4 GB | |||
| Graphics | ||||
| Processor | Vivante GC | |||
| Screens (Multi-display) | 2 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| PCIe Interfaces | 1x Mini-PCIe | |||
| SIM | PCIe / USB 2.0 Support | 1 Pce | ||
| Storage | SD / MMC card | |||
| Audio | ||||
| Chipset | Wolfson WM8960 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Micrel KSZ9031 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||

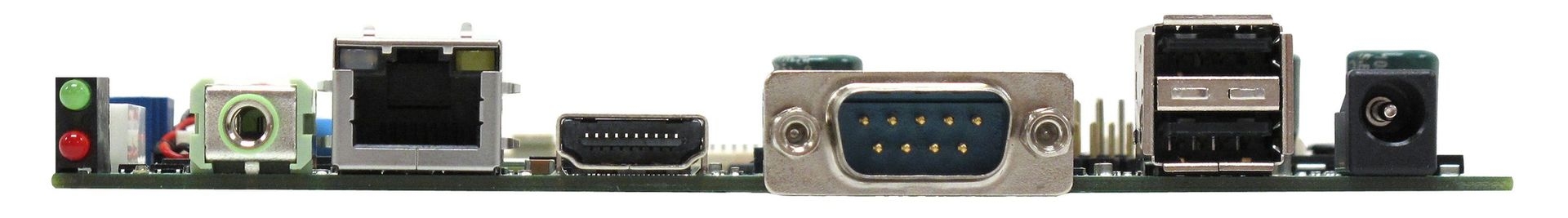

| External I/O | ||||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB On-The-Go (USB OTG) | Micro USB | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 485 | Ports (Special Connection) | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| Digital I/O | Bits | 10-bit | 1 Pce | |
| JTAG (Joint Test Action Group) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 1 Pce | |
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 24 V | |||
| Connector | DC barrel connector | |||
| Power supply - Input | DC: 9 to 24V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 12.04 | ||
| Android | Release | 4.3 | ||
| Supported OS | Linux, Android | |||
| Cooling | ||||
| Implementation | Passive | |||
| Passive | Thermal Management | Cooling Fins (Heat Sink) | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 50°C | ||
| Storage | -20° to 80°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 101 mm | |||
| Deep | 144 mm | |||
| Weight | 200 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| RoHS compliant | Yes | |||
| Manufacturer's warranty | ||||
| Manufacturer's warranty | 2 years | |||
