3.5" Mainboards
// 3.5" Industrial Mainboards
// NXP i.MX 8M Quad
// 2 GB
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB (internal)
// 16 GB eMMC
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

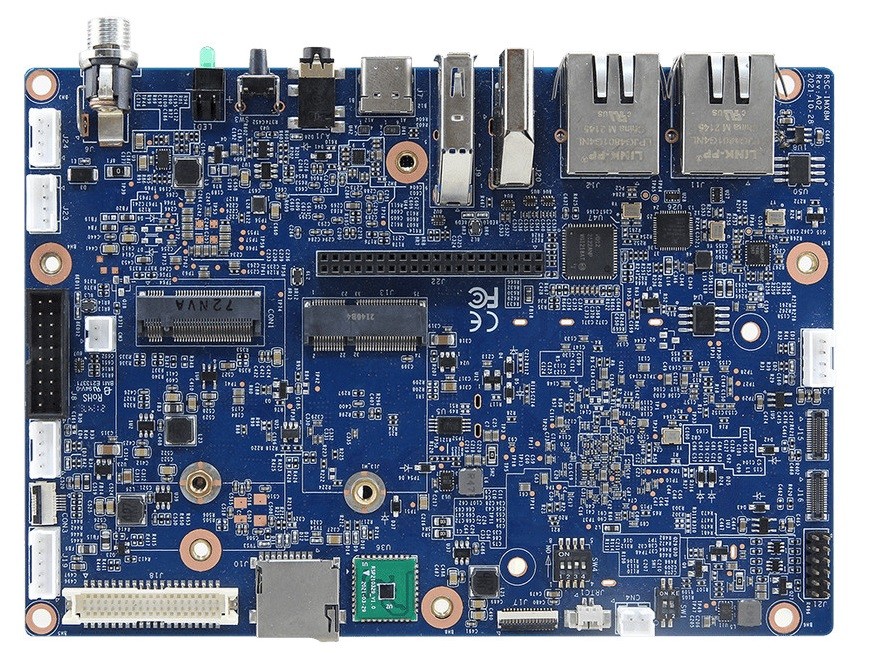

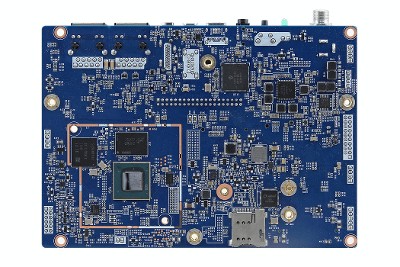

Basic Module: Avalue RSC-IMX8M
| General information | ||||
| SKU / Item Number | RSC-IMX8M | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Quad | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,3 GHz | |||
| Processor 2 | Series | ARM Cortex-M4 | ||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 4 GB | |||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 16 GB | |||
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0a | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen. 2), USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, USB 2.0 | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | Micro SD (external) | |||
| Audio | ||||
| Chipset | Wolfson WM8960 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I210 PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Atheros AR8033 (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

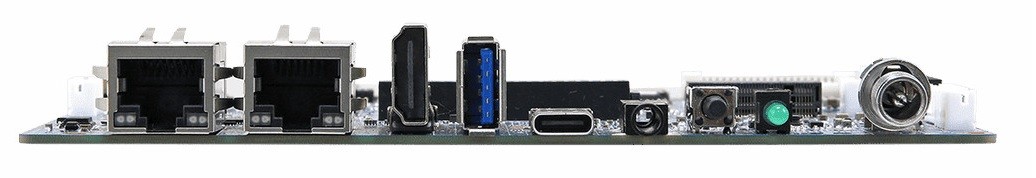

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Speaker Out | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-422 / 485 | DB-9 | 3 Pce, - | |
| Digital I/O | Quantity | 1 Pce, - | ||
| Bits | 8-bit | |||
| Connector | DB-9 | |||
| USB | USB 3.0 | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 3.0 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| JTAG (Joint Test Action Group) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 2 Pce | |
| MIPI-DSI (Display Serial Interface) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 2.5 | ||
| Android | Release | 10 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Storage | 0 to 90%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146,05 mm | |||
| Deep | 101,6 mm | |||
| Vibration | Vibration | 1.5G, 5-500Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 10G, half sine wave, 11 ms duration | ||
| Weight | 160 g | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
