3.5" Mainboards
// 3.5" Industrial Mainboards
// [NXP i.MX 6DualLite | NXP i.MX 6Quad]
// 1 GB
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 1 x USB
// 2 x USB (internal)
// 1 x Seriell I/O
// 4 GB eMMC
// Digital I/O (10-Bit)
// 1 x Mini-PCIe
// Power Supply DC [12 to 26V | -]
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

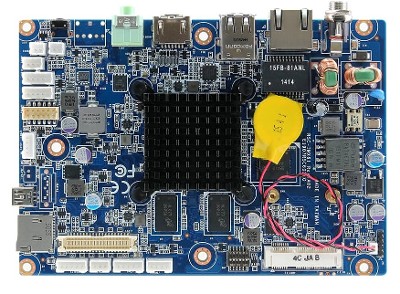

Basic Module: Avalue RSC-IMX61
| General information | ||||
| SKU / Item Number | RSC-IMX61 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | ARM Cortex-A9 | |||
| Number | NXP i.MX 6DualLite, NXP i.MX 6Quad | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Base frequency | 1 GHz | |||
| Memory | Memory Type | DDR3 | ||
| Maximum expansion | 2 GB | |||
| Internal memory | 1 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 4 GB | |||
| Graphics | ||||
| Screens (Multi-display) | 2 displays | |||
| LVDS (Low Voltage Differential Signaling) | Bits | 24-bit | ||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| Storage | Micro SD | |||
| Audio | ||||
| Chipset | Wolfson WM8962 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Micrel KSZ9031 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Network | 1x G-LAN | |||
| External I/O | ||||
| USB | USB On-The-Go (USB OTG) | 1 Pce | ||

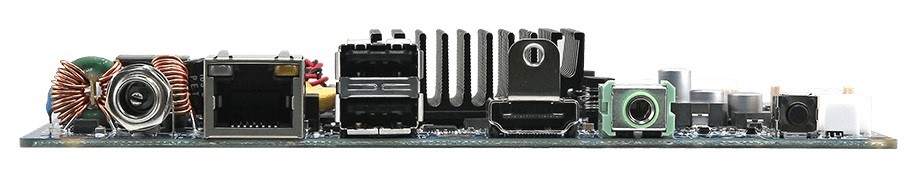

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Audio | Line Out | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 1 Pce | |
| USB On-The-Go (USB OTG) | Micro USB | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 10-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (Interface) | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce, - | ||
| Power connection (onboard) | 1 Pce, - | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | -, Yes | |
| Range | 12 to 26V, - | |||
| Connector | -, DC Power Jack | |||
| PoE (Power over Ethernet) | Connectors | 1 Pce, - | ||
| Protocol | -, IEEE 802.3at / 25.5W | |||
| Power supply - Input | DC: 12 to 26V | |||
| OS / Software | ||||
| Linux | Distribution | Ubuntu 12.04, Yocto 3.0 | ||
| Android | Release | 6 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20° to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 0 to 90%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Weight | 150 g | |||
| Controls | Reset | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
