3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core i3-1315UE | Intel Core i3-1315URE | Intel Core i3-1320PE | Intel Core i3-1320PRE | Intel Core i5-1335UE | Intel Core i5-1340PE | Intel Core i5-1345URE | Intel Core i5-1350PRE | Intel Core i7-1365UE | Intel Core i7-1370P | Intel Core i7-1370PE | Intel U300E]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 20V
// 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

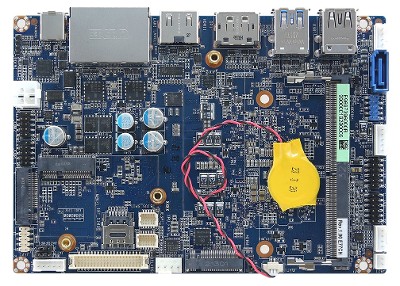

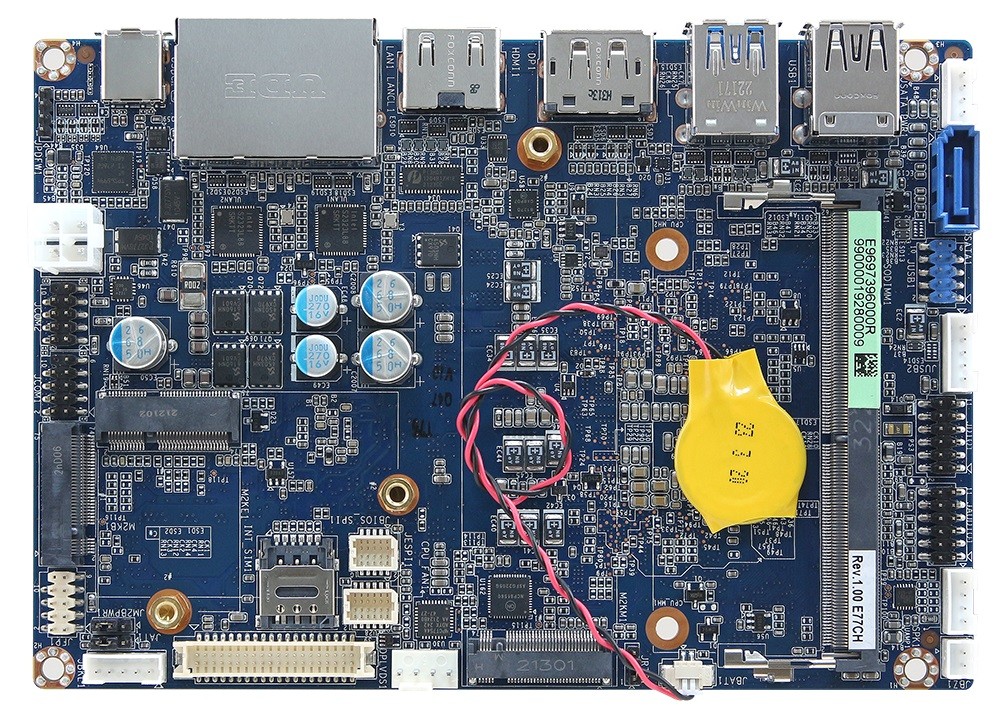

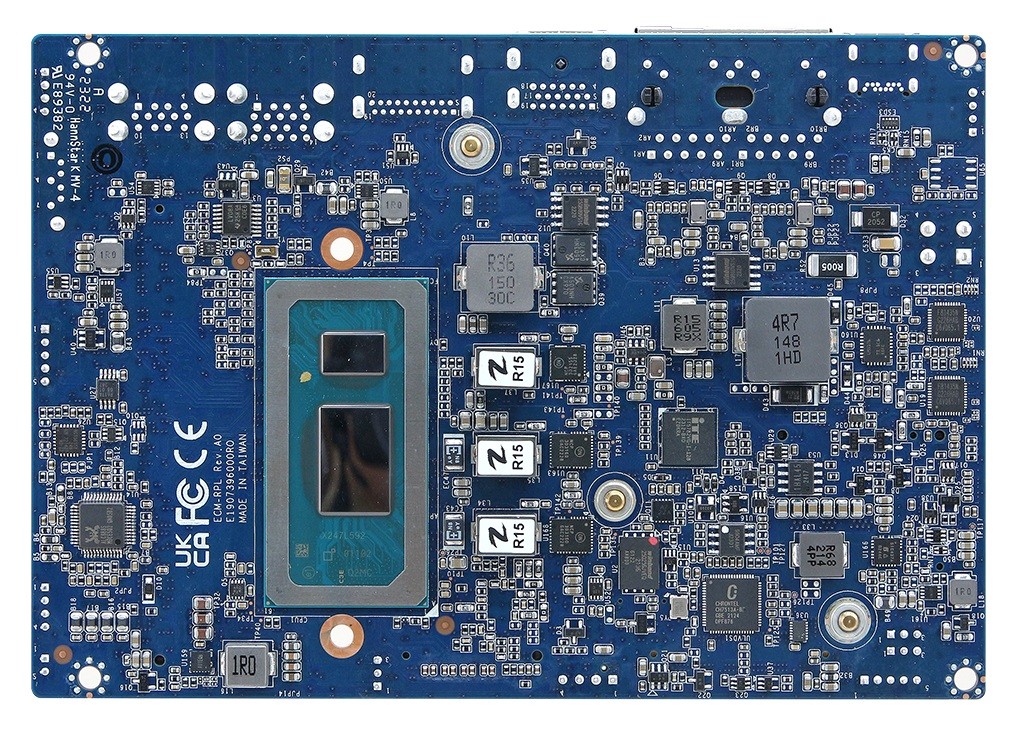

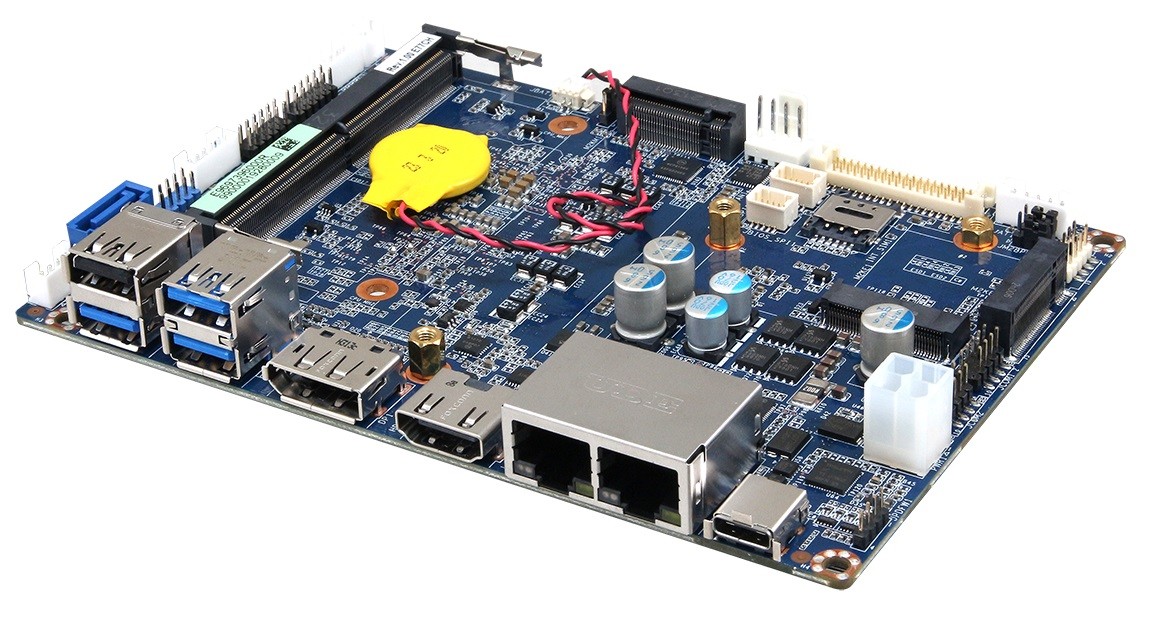

Basic Module: Avalue ECM-RPL
| General information | ||||
| SKU / Item Number | ECM-RPL | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Raptor Lake | |||
| Number | Intel Core i3-1315UE, Intel Core i3-1315URE, Intel Core i3-1320PE, Intel Core i3-1320PRE, Intel Core i5-1335UE, Intel Core i5-1340PE, Intel Core i5-1345URE, Intel Core i5-1350PRE, Intel Core i7-1365UE, Intel Core i7-1370P, Intel Core i7-1370PE, Intel U300E | |||
| CPU cores | 5 Pce, 6 Pce, 8 Pce, 10 Pce, 12 Pce, 14 Pce | |||
| Threads | 6 Pce, 8 Pce, 12 Pce, 16 Pce, 20 Pce | |||
| Socket | BGA 1744 | |||
| Base frequency | 1,1 GHz, 1,2 GHz, 1,3 GHz, 1,4 GHz, 1,7 GHz, 1,8 GHz, 1,9 GHz | |||
| Performance Core Max Turbo Frequency | 4,3 GHz, 4,5 GHz, 4,6 GHz, 4,8 GHz, 4,9 GHz | |||
| Efficient-core Max Turbo Frequency | 3,2 GHz, 3,3 GHz, 3,4 GHz, 3,7 GHz | |||
| Cache | 8 MB, 10 MB, 12 MB, 24 MB | |||
| Thermal Design Power (TDP) | 15 W, 28 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5782VG | |
| Graphics | ||||
| Processor | Intel Iris Xe Graphics, Intel UHD Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0b | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 60 Hz | ||
| Version | 2.1 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, SATA III, USB 2.0, USB 3.0 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | CNVi (Connected Network Interface), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226IT PCIe (10/100/1000/2500 Mbps), Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

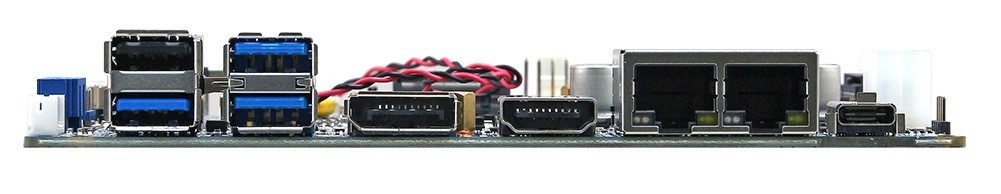

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 1 Pce | ||
| USB 3.2 (Gen 2) | 3 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 2 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 4-pin connector (horizontal) | |||
| DC | Wide Range | No | ||
| Range | 20V | |||
| Connector | USB Type-C | |||
| Power supply - Input | DC: 9~36V, 20V | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 70°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 101 mm | |||
| Weight | 200 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
