3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core Ultra 5 Processor 225H | Intel Core Ultra 5 Processor 225U]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 4 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

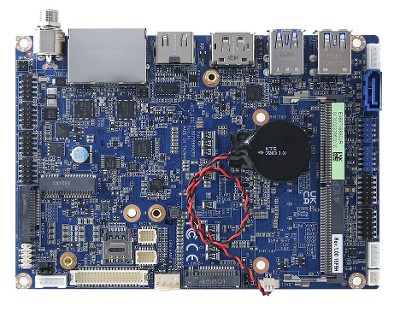

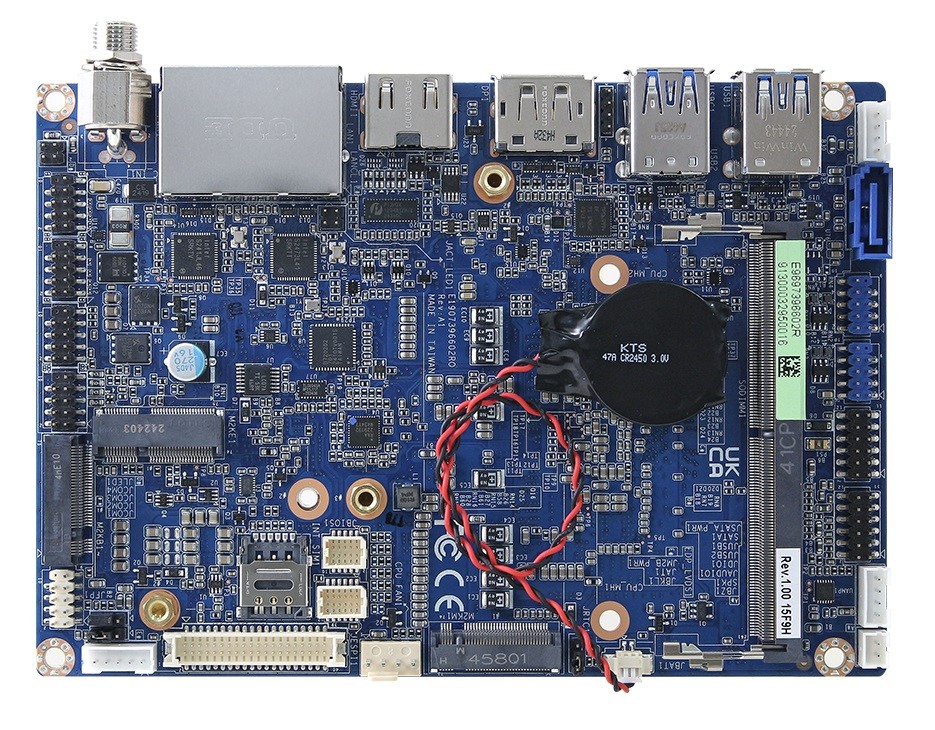

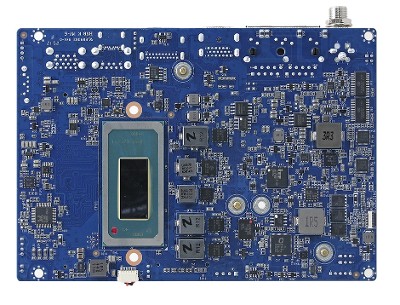

Basic Module: Avalue ECM-ARL
| General information | ||||
| SKU / Item Number | ECM-ARL | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | Intel Arrow Lake | ||
| Number | Intel Core Ultra 5 Processor 225H, Intel Core Ultra 5 Processor 225U | |||
| CPU cores | 12 Pce, 14 Pce | |||
| Threads | 14 Pce, 17 Pce | |||
| Socket | BGA 2049 | |||
| Performance core base clock frequency | 1,5 GHz, 1,7 GHz | |||
| Performance Core Max Turbo Frequency | 4,8 GHz, 4,9 GHz | |||
| Efficient-core base clock frequency | 1,3 GHz | |||
| Efficient-core Max Turbo Frequency | 1,3 GHz, 3,8 GHz | |||
| Cache | 12 MB, 18 MB | |||
| Basic power consumption of the processor | 15 W, 28 W | |||
| Maximum Turbo Power Consumption | 57 W, 115 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| Memory Type | DDR5 | |||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 6400 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 48 GB | |||
| BIOS | AMI SPI 256 Mbit | |||
| I/O controller | Controller 1 | I/O controller | ITE IT5782VG | |
| Graphics | ||||
| Processor | Intel Arc 130T, Intel Graphics | |||
| Screens (Multi-display) | 4 displays | |||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| Version | 2.0b | |||
| DisplayPort | Maximum resolution | 7680 x 4320 at 30 Hz | ||
| Version | 1.4A | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | Chrontel CH7513A-BF | |||
| eDP (Embedded DisplayPort) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | M | |
| Interface | NVMe, PCIe ×4 (Gen 4) | |||
| Supported dimensions | 2280 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen. 2), SATA III, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 2242, 3042, 3052 | |||
| Slot 3 | Key ID | E | ||
| Interface | PCIe ×1 (Gen. 2), USB 2.0, Wi-Fi | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

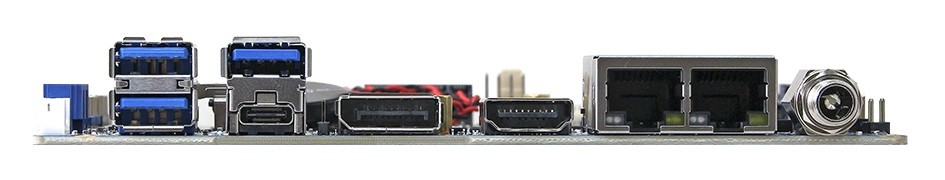

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 1 Pce | ||
| USB 3.2 (Gen 2) | 2 Pce | |||
| USB v3.2 (Gen 2, Type C) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 4 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| eDP (Embedded DisplayPort) lanes | 2 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Enhanced Serial Peripheral Interface (eSPI) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 2 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Nuvoton NPCT760AABYX | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12 to 24V | |||
| OS / Software | ||||
| Windows | Windows 11 | Supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 101 mm | |||
| Weight | 200 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
