3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Celeron J3455
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 12 to 26V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

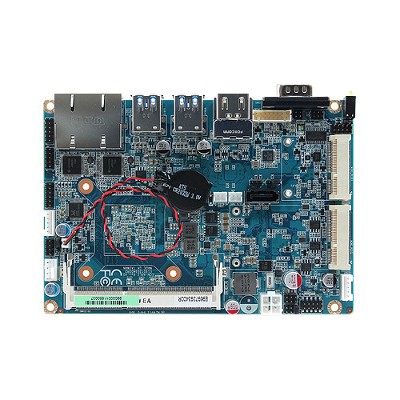

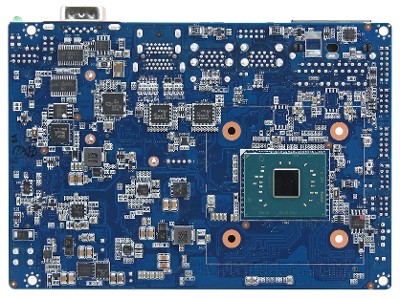

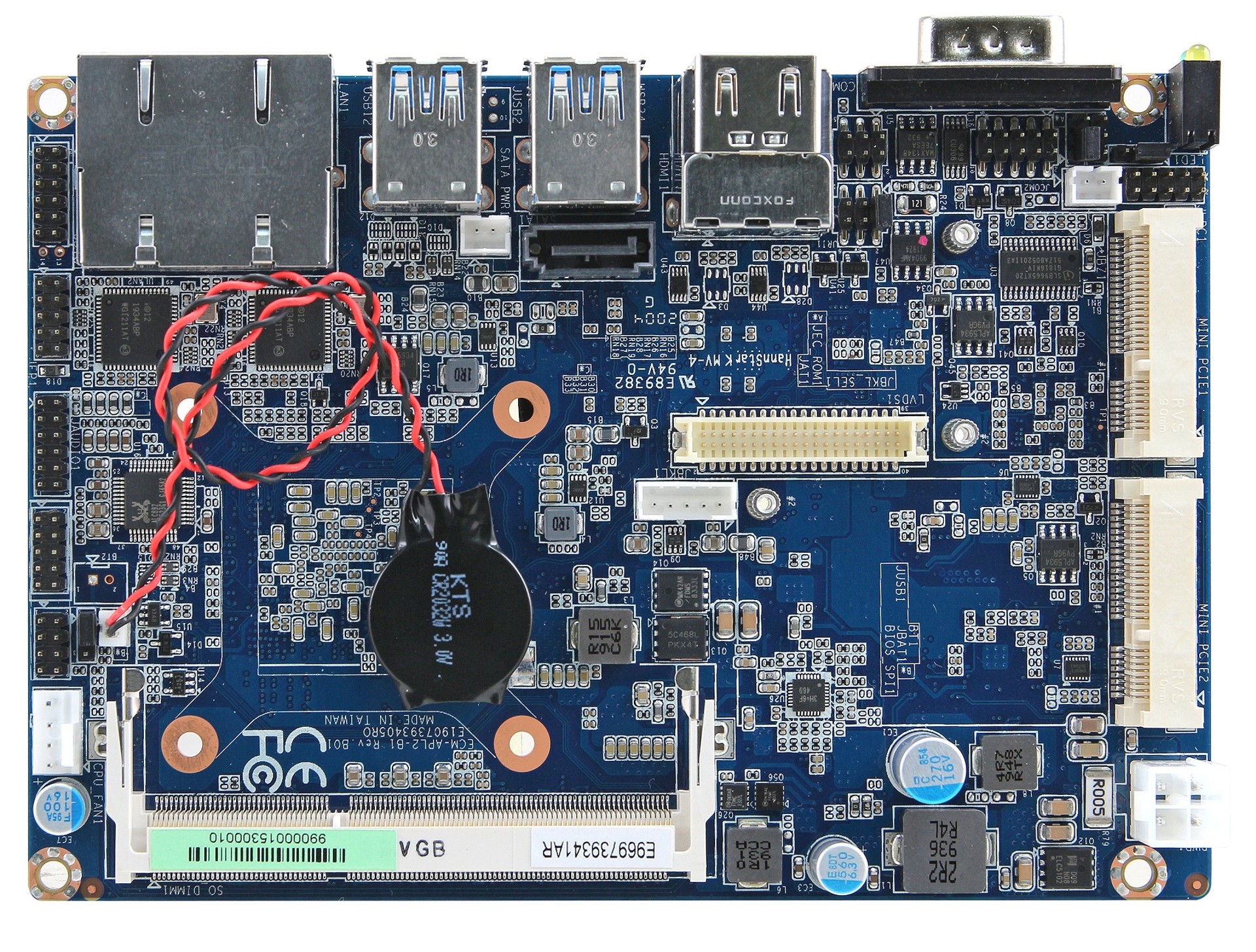

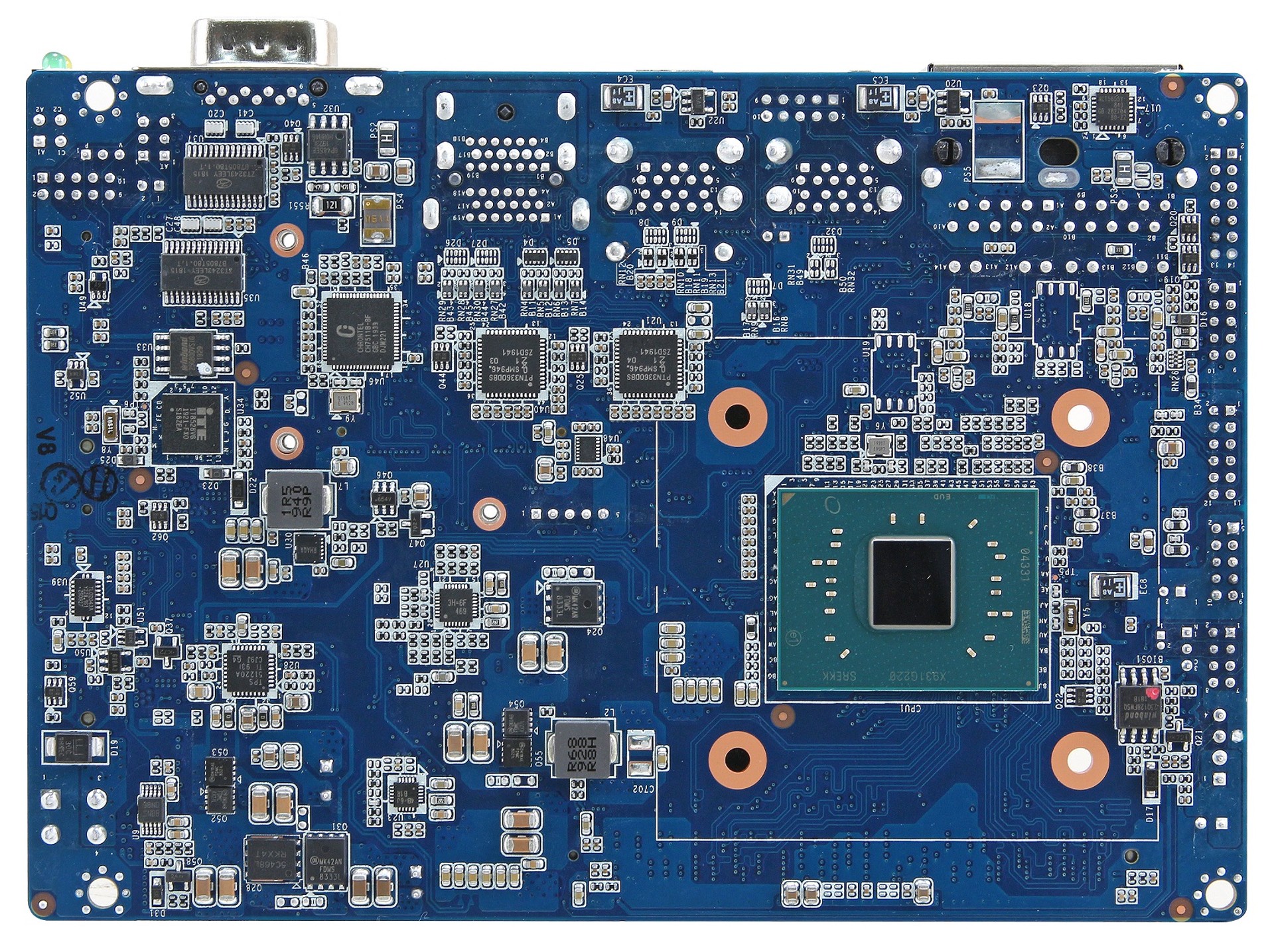

Basic Module: Avalue ECM-APL2
| General information | ||||
| SKU / Item Number | ECM-APL2 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Apollo Lake | |||
| Number | Intel Celeron J3455 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce | |||
| Socket | BGA 1296 | |||
| Base frequency | 1,5 GHz | |||
| Max Turbo Frequency | 2,3 GHz | |||
| Cache | 2 MB | |||
| Thermal Design Power (TDP) | 10 W | |||
| Lithography | 14 nm | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 204-pin SO-DIMM DDR3L | ||
| Memory Type | DDR3 | |||
| Frequency | 1333 / 1600 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 8 GB | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8528E / FX, ITE IT8528VG | |
| Graphics | ||||
| Processor | Intel HD Graphics 500 | |||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz, - | ||
| HDMI | Maximum resolution | 3840 x 2160 at 30 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz, - | ||
| Bits | 24-bit, - | |||
| Bridge | -, Chrontel CH7511B | |||
| Extension | ||||
| Mini-PCIe | Half building depth | Quantity | 1 Pce | |
| Full installation depth | Quantity | 1 Pce | ||
| mSATA support | Yes | |||
| PCIe Interfaces | 2x Mini-PCIe slots | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I211AT PCIe (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

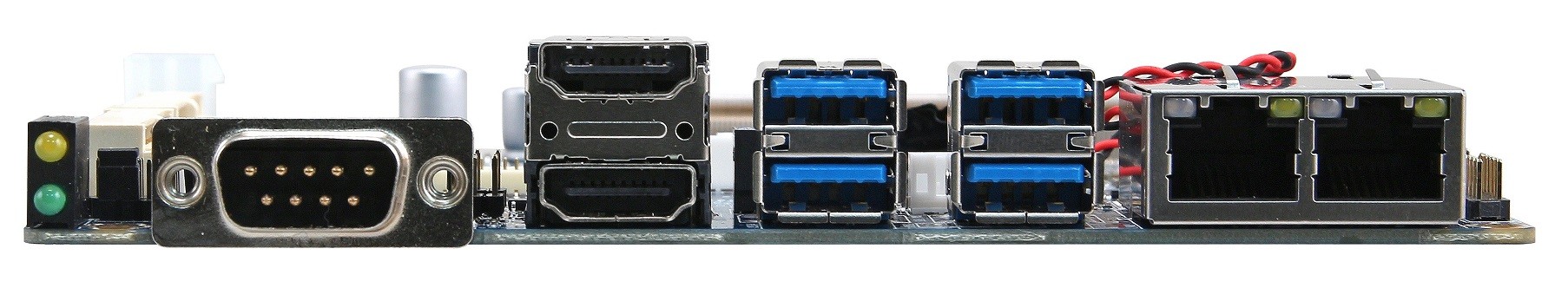

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce, - | |
| RS-232 / 422 / 485 | DB-9 | 1 Pce, - | ||
| USB | USB 3.1 Gen 1 | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.54 mm pitch) | 1 Pce, - | |
| RS-232 / 422 / 485 | Ports (2.54 mm pitch) | 1 Pce, - | ||
| Display | LVDS (Low Voltage Differential Signaling) | -, Dual channel | ||
| LVDS connectors | 1 Pce, - | |||
| VGA (2.54 mm pitch) | 1 Pce, - | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| LPC | 1 Pce | |||
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 26V | |||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 12 to 26V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Active (fan cooling) | |||
| Passive | Thermal Management | Heat Spreader | ||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 75°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 101 mm | |||
| Vibration | Vibration | 5G, 5 to 500 Hz | ||
| Reference Standard | IEC 68-2-64 | |||
| Shock | Measurement Data | 50G, 0.5 ms | ||
| Reference Standard | IEC 68-2-27 | |||
| Drop | Reference Standard | IEC-60068-2-32 | ||
| Weight | 200 g | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
