3.5" Mainboards
// 3.5" Industrial Mainboards
// Intel Core i5-1235U
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 6 x USB (Back side)
// 3 x USB (internal)
// 6 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Sales only to business customers.
Delivery time: upon request

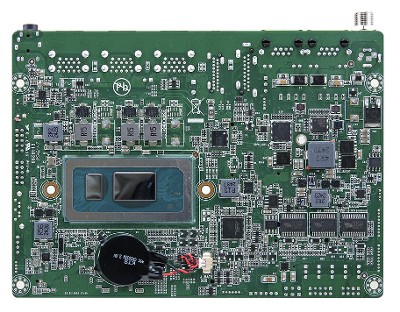

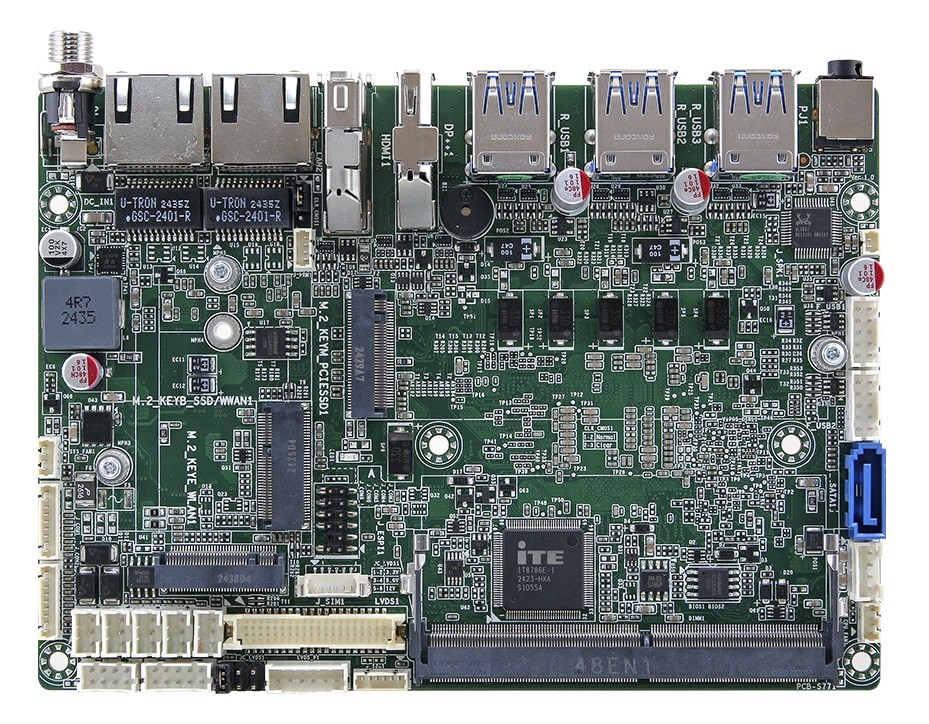

Basic Module: Avalue ECM-ALUC
| General information | ||||
| SKU / Item Number | ECM-ALUC | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Series | Intel Alder Lake | ||
| Number | Intel Core i5-1235U | |||
| CPU cores | 10 Pce | |||
| Threads | 12 Pce | |||
| Socket | BGA 1744 | |||
| Performance Core Max Turbo Frequency | 4,4 GHz | |||
| Efficient-core Max Turbo Frequency | 3,3 GHz | |||
| Thermal Design Power (TDP) | 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| DIMM data transfer rate | 3200 MT/s | |||
| Slots | 1 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | ITE IT8786E-I/BX | |
| Graphics | ||||
| Processor | Intel Iris Xe Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 2048 x 1536 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Dual mode | Yes (DP++) | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, PCIe ×1 (Gen 3), USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 2 | Key ID | E | ||
| Interface | PCIe ×1 (Gen 3), Wi-Fi | |||
| Supported dimensions | 2230 | |||
| Slot 3 | Key ID | M | ||
| Interface | NVMe, PCIe ×4, SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC897 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226V PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I219V PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

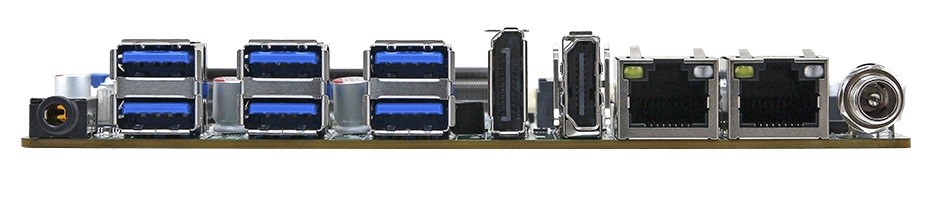

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP++ | 1 Pce | |||
| Audio | Combo Jack | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.2 (Gen 1) | 6 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 3 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 5 Pce | |
| RS-422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Dual channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Audio | Verstärker | 1 Pce | ||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | fTPM 2.0 (Firmware Simulation) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Windows 11 | Supported | |||
| Linux | Distribution | Linux | ||
| Supported OS | Linux, Windows | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -20° down to 70°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 105,1 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
