3.5" Mainboards
// 3.5" Industrial Mainboards
// [Rockchip RK3568 | Rockchip RK3568J]
// SoC (System on a Chip)
// [2 GB | 4 GB]
// 2 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 3 x Seriell I/O
// [16 GB | 32 GB] eMMC
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

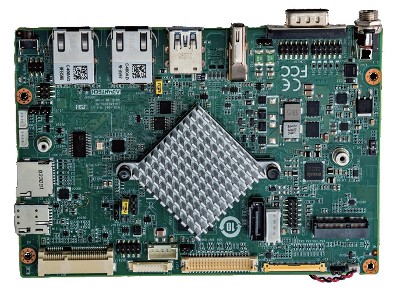

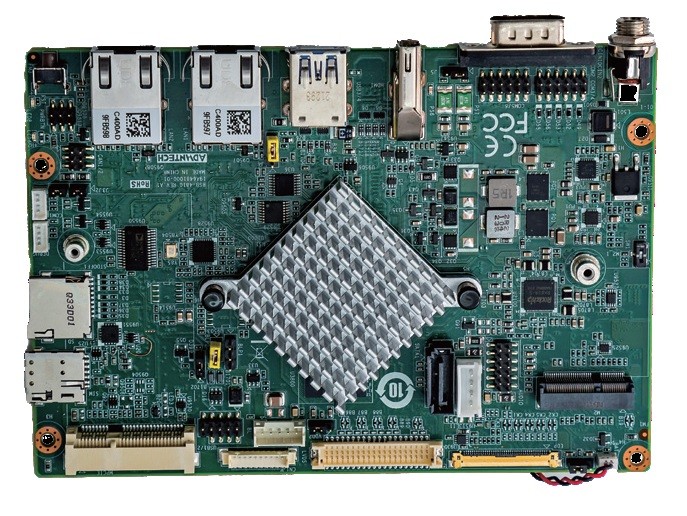

Basic Module: Advantech RSB-4810
| General information | ||||
| SKU / Item Number | RSB-4810 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Series | ARM Cortex-A55 | ||
| Number | Rockchip RK3568, Rockchip RK3568J | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 2 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 4 GB | |||
| Internal memory | 2 GB, 4 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB, 32 GB | ||
| Graphics | ||||
| HDMI | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 2.0 | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| USB support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), SDIO, UART, USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211FSI (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

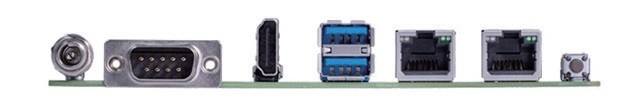

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.54 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (Special Connection) | 3 Pce | |
| RS-232 / 485 | Ports (Special Connection) | 2 Pce | ||
| Display | LVDS (Low Voltage Differential Signaling) | Single channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 6-bit | 1 Pce | |
| DIO Power | 4-pin (2 mm pitch) | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 2 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Debug port | is supported | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | Male connector (screw-in) | |||
| Power supply - Input | DC: 12V | |||
| Maximum power consumption | 13 W | |||
| OS / Software | ||||
| Linux | Distribution | Debian 10 | ||
| Android | Release | 12 | ||
| Supported OS | Android, Linux | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Controls | Power | 1 Pce | ||
| Reset | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
