3.5" Mainboards
// 3.5" Industrial Mainboards
// [Rockchip RK3288 | Rockchip RK3288K]
// SoC (System on a Chip)
// 2 GB
// LVDS
// 1 x G-LAN (Back side)
// 3 x USB (Back side)
// 3 x USB (internal)
// 5 x Seriell I/O
// 8 GB eMMC
// Digital I/O (8-Bit)
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

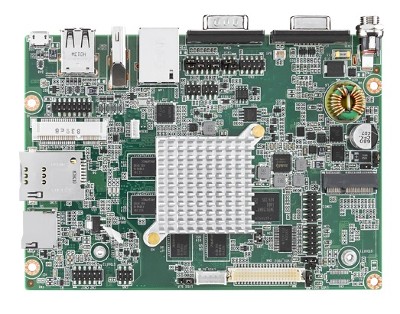

Basic Module: Advantech RSB-4680
| General information | ||||
| SKU / Item Number | RSB-4680 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | ARM Cortex-A17 | |||
| Number | Rockchip RK3288, Rockchip RK3288K | |||
| CPU cores | 4 Pce | |||
| Max Turbo Frequency | 1,6 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR3 | ||
| DIMM data transfer rate | DDR3-1333 MT/s | |||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 8 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 8 GB | |||
| Graphics | ||||
| Screens (Multi-display) | 3 displays | |||
| VGA | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| HDMI | Maximum resolution | 3840 x 2160 at 60 Hz | ||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||

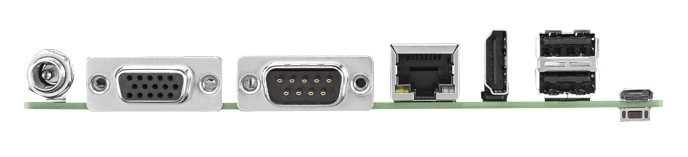

| Externe I/O (Rear Panel) | ||||
| Display | VGA | 1 Pce | ||
| HDMI | 1 Pce | |||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 3 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 5 Pce | |
| Display | LVDS connectors | 1 Pce | ||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Verstärker | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -20° to 85°C | ||
| Dimensions | Form factor | 3.5" | ||
| Controls | Reset | 1 Pce | ||
