3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core i3-7102E | Intel Core i5-7442EQ | Intel Core i7-7820EQ | Intel Xeon E3-1505M v6]
// [Intel CM238 | Intel QM175]
// 260-pin DDR4 SO-DIMM
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (16-Bit)
// 1 x Mini-PCIe
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

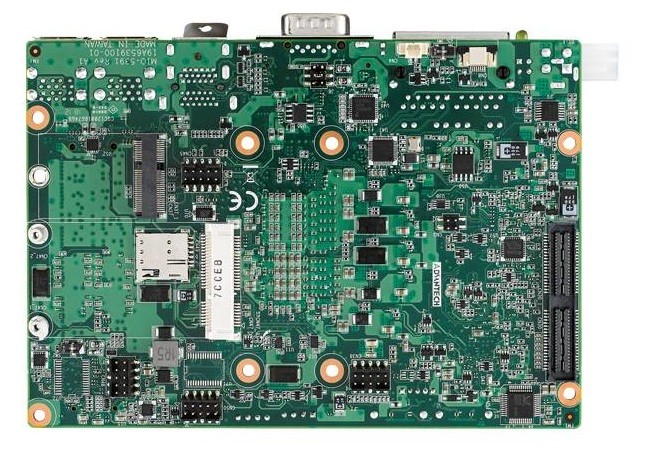

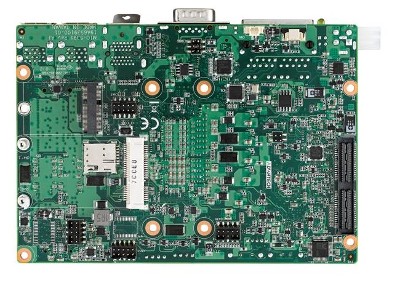

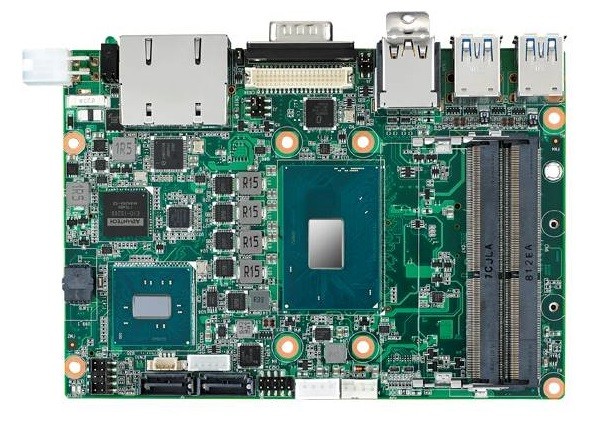

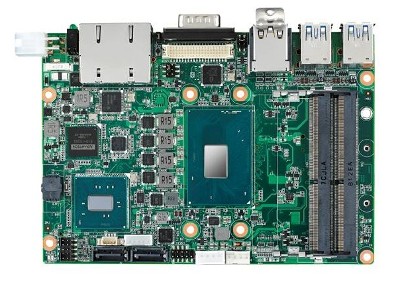

Basic Module: Advantech MIO-5391
| General information | ||||
| SKU / Item Number | MIO-5391 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Kaby Lake | |||
| Number | Intel Core i3-7102E, Intel Core i5-7442EQ, Intel Core i7-7820EQ, Intel Xeon E3-1505M v6 | |||
| CPU cores | 2 Pce, 4 Pce | |||
| Threads | 4 Pce, 8 Pce | |||
| Socket | BGA 1440 | |||
| Base frequency | 2,1 GHz, 3 GHz | |||
| Max Turbo Frequency | 2,9 GHz, 3,7 GHz, 4 GHz, - | |||
| Cache | 3 MB, 6 MB, 8 MB | |||
| Thermal Design Power (TDP) | 25 W, 45 W | |||
| Chipset | Intel CM238, Intel QM175 | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 2400 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | is supported, not supported | |||
| BIOS | AMI UEFI 128 Mbit SPI | |||
| Graphics | ||||
| Processor | Intel HD Graphics 630, Intel HD Graphics P630 | |||
| HDMI | Maximum resolution | 4096 x 2304 at 30 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 48 bits | |||
| Bridge | Chrontel CH7511B | |||
| Extension | ||||
| Mini-PCIe | Full installation depth | Quantity | 1 Pce | |
| mSATA support | Yes | |||
| PCIe Interfaces | 1x Mini-PCIe | |||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Micro SIM | |||
| Storage | mSATA | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I219LM PCIe with AMT with Core i5/i7 (10/100/1000 Mbps) | |
| Quantity | 1 Pce | |||
| Controller | Chipset | Intel I210IT PCIe (10/100/1000 Mbps) | ||
| Quantity | 1 Pce | |||
| Network | 2x G-LAN | |||

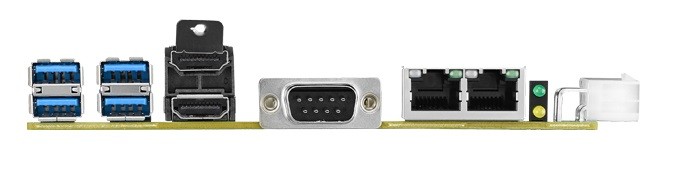

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 2 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 3.0 | 4 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 2 Pce | |
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| CAN bus | Version 2.0B (with isolation) | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 2 Pce | ||
| Power connection (onboard) | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Available Upon Request | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| Cooling | ||||
| Implementation | Active (fan cooling), Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Accessoires | mit Active Cooler Part No.1960089060T001, mit Passive Heatsink Part No.1960089142T001 | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
