3.5" Mainboards
// 3.5" Industrial Mainboards
// [AMD Ryzen Embedded R2314 | AMD Ryzen Embedded R2514]
// SoC (System on a Chip)
// 260-pin DDR4 SO-DIMM
// LVDS
// 3 x G-LAN (Back side)
// 2 x USB (Back side)
// 3 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12 to 24V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

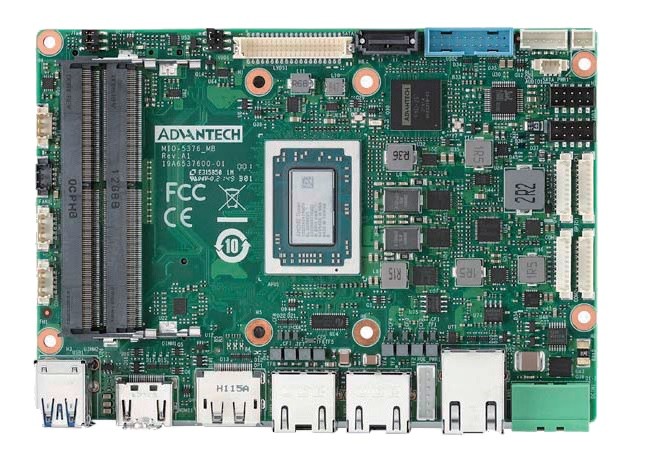

Basic Module: Advantech MIO-5376
| General information | ||||
| SKU / Item Number | MIO-5376 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | AMD Ryzen Embedded R2000 | |||
| Number | AMD Ryzen Embedded R2314, AMD Ryzen Embedded R2514 | |||
| CPU cores | 4 Pce | |||
| Threads | 4 Pce, 8 Pce | |||
| Base frequency | 2,1 GHz | |||
| Max Turbo Frequency | 3,5 GHz, 3,7 GHz | |||
| Basic power consumption of the processor | 12 W | |||
| Maximum Turbo Power Consumption | 25 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 260-pin DDR4 SO-DIMM | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 2666 MHz | |||
| Slots | 2 Pce | |||
| Maximum expansion | 32 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| Graphics | ||||
| Processor | AMD Radeon HD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0b | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1200 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, PCIe ×1 (Gen 3), USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3042, 3052 | |||
| Slot 3 | Key ID | M | ||
| Interface | PCIe ×4 (Gen. 3), SATA III | |||
| Supported dimensions | 2280 | |||
| M.2 Key IDs | B, E, M | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888 | |||
| Network | ||||
| G-LAN | Controller | Chipset | Intel I226LM PCIe (10/100/1000/2500 Mbps) | |
| Quantity | 3 Pce | |||
| Network | 3x G-LAN | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce | |||
| Ethernet | RJ-45 | 3 Pce | ||
| USB | USB 3.2 (Gen 2) | 2 Pce | ||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB 3.2 | Key-A Header (20-pin) | 1 Pce | ||
| Serial | RS-232 | Ports (Special Connection) | 2 Pce | |
| RS-232 / 422 / 485 | Ports (Special Connection) | 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| CAN bus | Version 2.0B (with isolation) | 1 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | v2.0 | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 12 to 24V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 12 to 24V | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | 0° to 60°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 5 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
