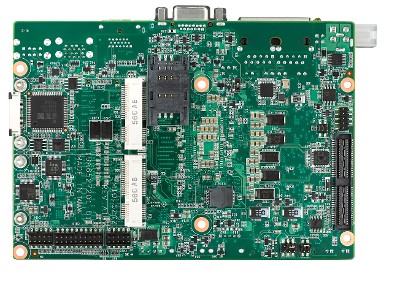

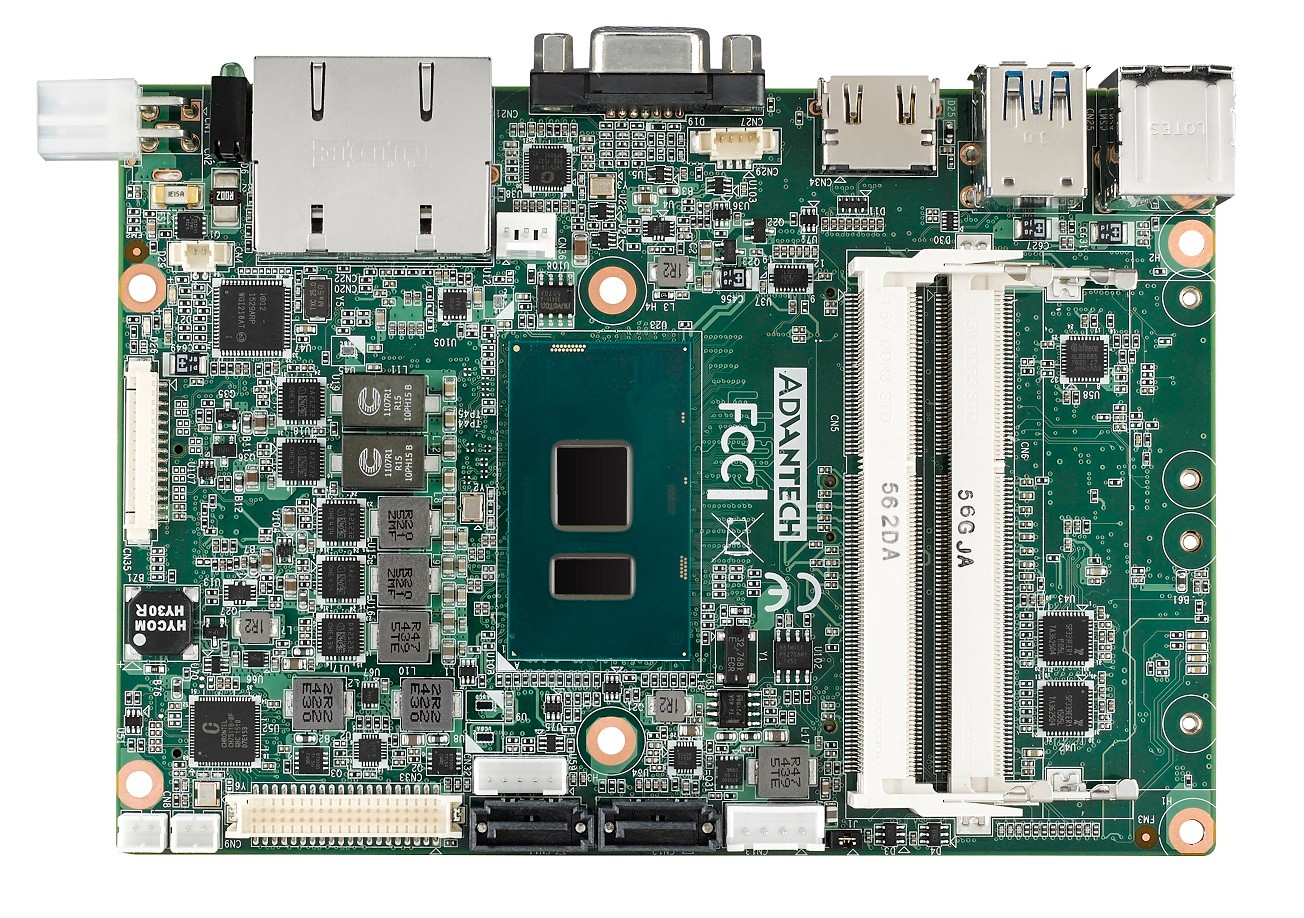

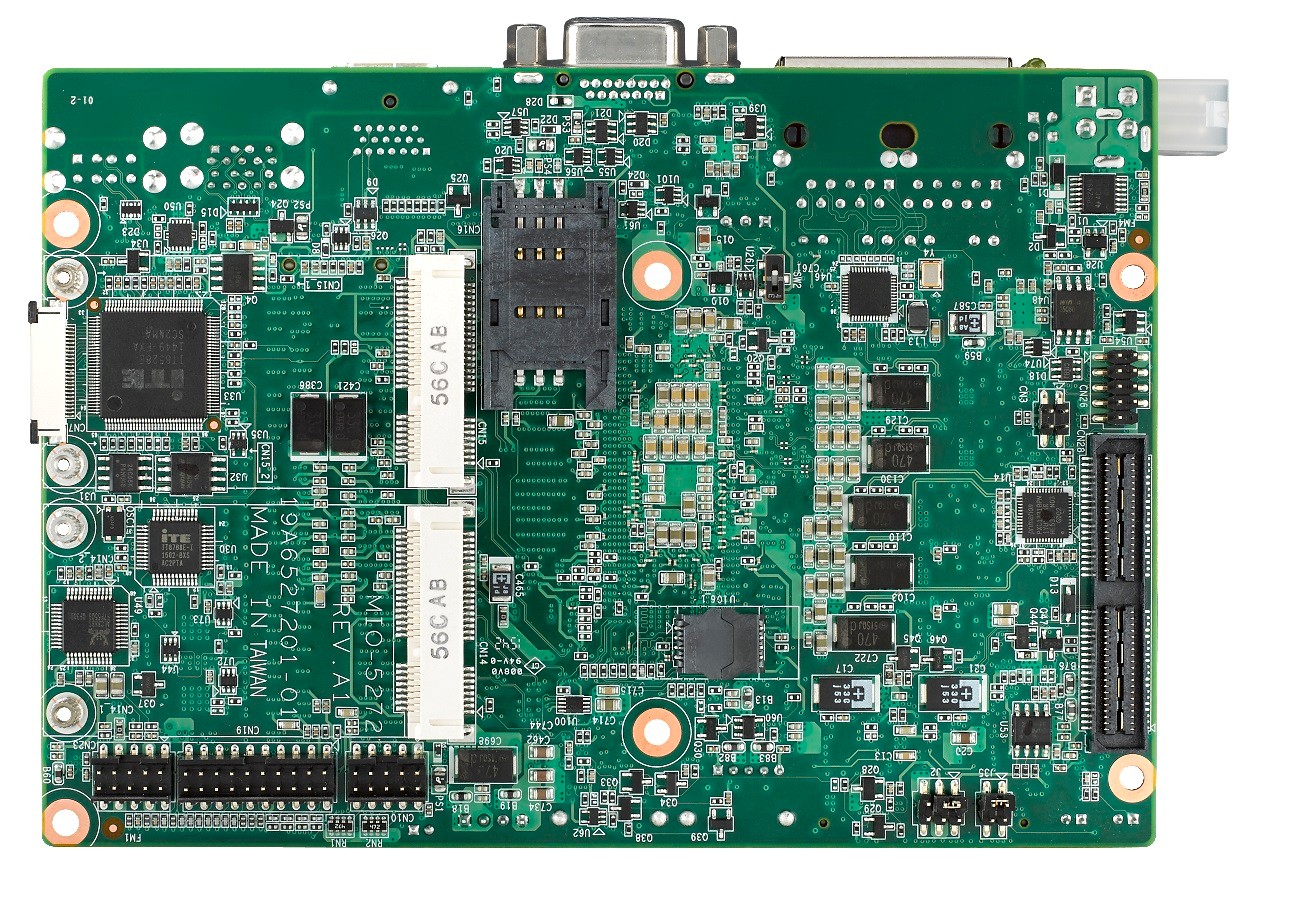

Advantech MIO-5272

MIO-5272U-U3A2, MIO-5272U-U4A2, MIO-5272U-U6A2, MIO-5272U-U8A2, MIO-5272Z-U4A2, MIO-5272Z-U8A2, MIO-5272Z2-U4A2, MIO-5272Z2-U8A2

3.5" Mainboards

PRODUCT FEATURES

// 3.5" Industrial Mainboards
// [Intel Core i3-6100U | Intel Core i5-6300U | Intel Core i7-6600U | Intel Core i7-7600U]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 12V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Advantech MIO-5272

General information
SKU / Item NumberMIO-5272MIO-5272U-U3A2, MIO-5272U-U4A2, MIO-5272U-U6A2, MIO-5272U-U8A2, MIO-5272Z-U4A2, MIO-5272Z-U8A2, MIO-5272Z2-U4A2, MIO-5272Z2-U8A2
Product Basic Data
ManufacturerAdvantech
System
ProcessorVertical SegmentMobile
SeriesIntel Kaby Lake, Intel Skylake
NumberIntel Core i3-6100U, Intel Core i5-6300U, Intel Core i7-6600U, Intel Core i7-7600U
CPU cores2 Pce
Threads4 Pce
SocketBGA 1356
Base frequency2 GHz, 2,3 GHz, 2,6 GHz, 2,8 GHz
Max Turbo Frequency3 GHz, 3,4 GHz, 3,9 GHz, -
Cache3 MB, 4 MB
Thermal Design Power (TDP)15 W
ChipsetSoC (System on a Chip)
MemoryStructure204-pin SO-DIMM DDR3L
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rate1600 MT/s
Slots2 Pce
Maximum expansion16 GB
ECC (Error-Correcting Code)not supported
BIOSAMI UEFI 128 Mbit SPI
Graphics
ProcessorIntel HD Graphics 520, Intel HD Graphics 620
VGAMaximum resolution1920 x 1200 at 60 Hz
HDMIMaximum resolution4096 x 2160 at 24 Hz
Version1.4
LVDS (Low Voltage Differential Signaling)Maximum resolution1920 x 1200 at 60 Hz
Bits48 bits
Extension
Mini-PCIeFull installation depthQuantity2 Pce
mSATA supportYes
PCIe Interfaces2x Mini-PCIe slots
SIMQuantity1 Pce
Form Factor (Slot)Micro SIM
StoragemSATA
Network
G-LANControllerChipsetIntel I219 PCIe (10/100/1000 Mbps)
Quantity1 Pce
ControllerChipsetIntel I210 PCIe (10/100/1000 Mbps)
Quantity1 Pce
Network2x G-LAN
Externe I/O (Rear Panel)
DisplayVGA1 Pce
HDMI1 Pce
EthernetRJ-452 Pce
USBUSB 2.02 Pce
USB 3.02 Pce
Internal I/O
USBUSB 2.0Ports (2.00 mm pitch)2 Pce
SerialRS-232 / 422 / 485Ports (Special Connection)2 Pce
DisplayLCD / Inverter PowerYes
LVDS (Low Voltage Differential Signaling)Dual channel
LVDS connectors1 Pce
Digital I/OBits8-bit1 Pce
SMBus1 Pce
I²C (Inter-Integrated Circuit)1 Pce
AudioConnector2.00 mm pitch
Line-in1 Pce
Line Out1 Pce
Mic-In1 Pce
Serial ATASATA R3.0 (6 Gbit/s, 600 MB/s)2 Pce
Power connection (onboard)1 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Safety
Trusted Platform Module (TPM)Available Upon Request
Power Supply
Typ (Input)DCWide RangeNo
Range12V
Connector4-pin connector (vertical)
Power supply - InputDC: 12V
Real-Time Clock (RTC) BatteryCR2032 coin cell battery
OS / Software
Windows EmbeddedWindows 10 Enterprise IoT LTSC (2019)is supported
LinuxDistributionUbuntu 20.04
Supported OSLinux, Windows Embedded
Cooling
ImplementationPassive
Mechanical / Environment
TemperatureOperation0° to 60°C, -20° to 80°C, -40°C to 85°C
Storage-40°C to 85°C
DimensionsForm factor3.5"
Width146 mm
Deep102 mm
Height26,3 mm
Weight670 g
Status indicatorsStorage1 Pce
Power1 Pce
Accessoiresmit Heatsink (H: 24 mm) Part No.1960068763T011, mit Heatsink (H: 34 mm) Part No.1960072272T001
Certificates / Conformities
CEYes
FCCClass AYes
RoHS compliantYes
