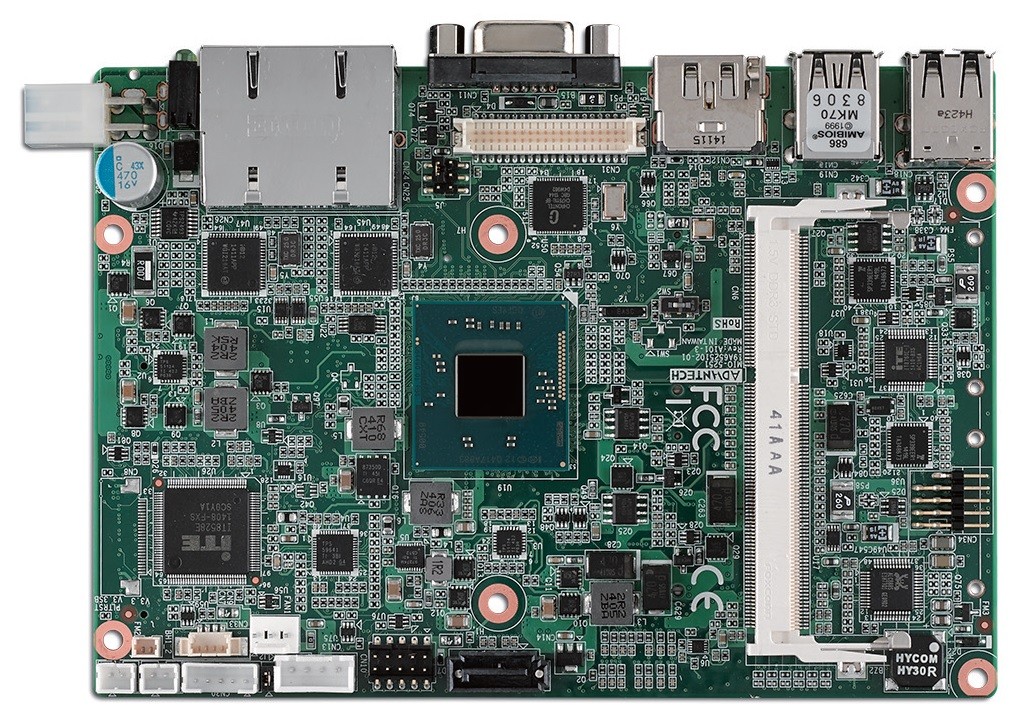

Advantech MIO-5251

MIO-5251E-S3A1E, MIO-5251EW-S9A1E, MIO-5251J-U0A1E, MIO-5251JZ-2GA1E, MIO-5251JZ2-2GA1E

3.5" Mainboards

PRODUCT FEATURES

// 3.5" Industrial Mainboards
// [Intel Atom E3825 | Intel Atom E3845 | Intel Celeron J1900]
// SoC (System on a Chip)
// 204-pin SO-DIMM DDR3L
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 1 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (8-Bit)
// 2 x Mini-PCIe
// Power Supply DC 12V

CONFIGURATION

Please configure your desired product.
Standard Configuration Custom Configuration

PRODUCT PRICE

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

PRODUCT INFORMATION
CONFIGURATIONS

Basic Module: Advantech MIO-5251

General information
SKU / Item NumberMIO-5251MIO-5251E-S3A1E, MIO-5251EW-S9A1E, MIO-5251J-U0A1E, MIO-5251JZ-2GA1E, MIO-5251JZ2-2GA1E
Product Basic Data
ManufacturerAdvantech
System
ProcessorVertical SegmentEmbedded
SeriesIntel Bay Trail
NumberIntel Atom E3825, Intel Atom E3845, Intel Celeron J1900
CPU cores2 Pce, 4 Pce
Threads2 Pce, 4 Pce
SocketBGA 1170
Base frequency1,33 GHz, 1,91 GHz, 2 GHz
Max Turbo Frequency2,42 GHz, -
Cache1 MB, 2 MB
Thermal Design Power (TDP)6 W, 10 W
ChipsetSoC (System on a Chip)
MemoryStructure204-pin SO-DIMM DDR3L
DIMM TypeUnbuffered SO-DIMM
DIMM data transfer rateDDR3-1066 MT/s, DDR3-1333 MT/s
Slots1 Pce
Maximum expansion8 GB
ECC (Error-Correcting Code)not supported
Internal memory2 GB, -
BIOSAMI UEFI 64 Mbit SPI
Graphics
ProcessorIntel HD Graphics
Screens (Multi-display)2 displays
VGAMaximum resolution2560 x 1600 at 60 Hz
HDMIMaximum resolution1920 x 1080 at 60 Hz
Version1.4A
LVDS (Low Voltage Differential Signaling)Maximum resolution1920 x 1200 at 60 Hz
Bits48 bits
Extension
Mini-PCIeFull installation depthQuantity2 Pce
USB supportYes
mSATA supportYes
PCIe Interfaces2x Mini-PCIe slots
SIMQuantity1 Pce
Form Factor (Slot)Micro SIM
StoragemSATA
Audio
ChipsetRealtek ALC888S-VD2-GR
Network
G-LANControllerChipsetIntel I210AT PCIe (10/100/1000 Mbps), Intel I210IT PCIe (10/100/1000 Mbps)
Quantity2 Pce
Network2x G-LAN

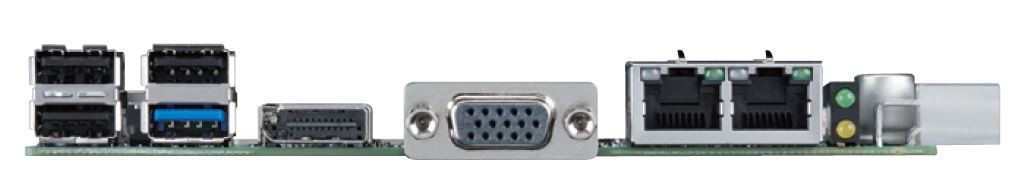

Externe I/O (Rear Panel)
DisplayVGA1 Pce
HDMI1 Pce
EthernetRJ-452 Pce
USBUSB 2.03 Pce
USB 3.01 Pce
Internal I/O
USBUSB 2.0Ports (2.00 mm pitch)1 Pce
SerialRS-232Ports (Special Connection)2 Pce
RS-232 / 422 / 485Ports (Special Connection)2 Pce
DisplayLCD / Inverter PowerYes
LVDS connectors1 Pce
Digital I/OBits8-bit1 Pce
SMBus1 Pce
I²C (Inter-Integrated Circuit)1 Pce
AudioConnector2.00 mm pitch
Line-in1 Pce
Line Out1 Pce
Mic-In1 Pce
Serial ATAS-ATA R2.0 (3 Gbps, 300 MB/s)1 Pce
Power connection (onboard)1 Pce
Watchdog Timer
Watchdog TimerYes
Watchdog timer (interval)Programmable via software (1 - 255 seconds)
Power Supply
Typ (Input)DCWide RangeNo
Range12V
Connector4-pin connector (vertical)
Power supply - InputDC: 12V
Real-Time Clock (RTC) BatteryCR2032 coin cell battery
OS / Software
WindowsWindows 8 (64-bit)is supported
Windows EmbeddedWES7Eis supported
WE8Sis supported
Windows 10 Enterprise IoT LTSB (2016)is supported
LinuxDistributionUbuntu 14.04
Supported OSLinux, Windows, Windows Embedded
Mechanical / Environment
TemperatureOperation0° to 60°C, -20° to 80°C, -40°C to 85°C
Storage-40°C to 85°C
Relative humidityOperation5 to 95%, non-condensing
DimensionsForm factor3.5"
Width146 mm
Deep102 mm
Height27,4 mm
Weight500 g
Status indicatorsStorage1 Pce
Power1 Pce
Accessoiresmit Passive CPU Heatsink (19 mm) Part No.1960062791T001, mit Passive CPU Heatsink (29 mm) Part No.1960066556T001
Certificates / Conformities
CEYes
FCCClass AYes
RoHS compliantYes
