3.5" Mainboards
// 3.5" Industrial Mainboards
// [Intel Core i3-N305 | Intel N50 | Intel N97]
// SoC (System on a Chip)
// 262-pin SO-DIMM DDR5
// LVDS
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// [0 | 2] x USB (internal)
// [4 | 6] x Seriell I/O
// Digital I/O (8-Bit)
// Power Supply DC 12V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

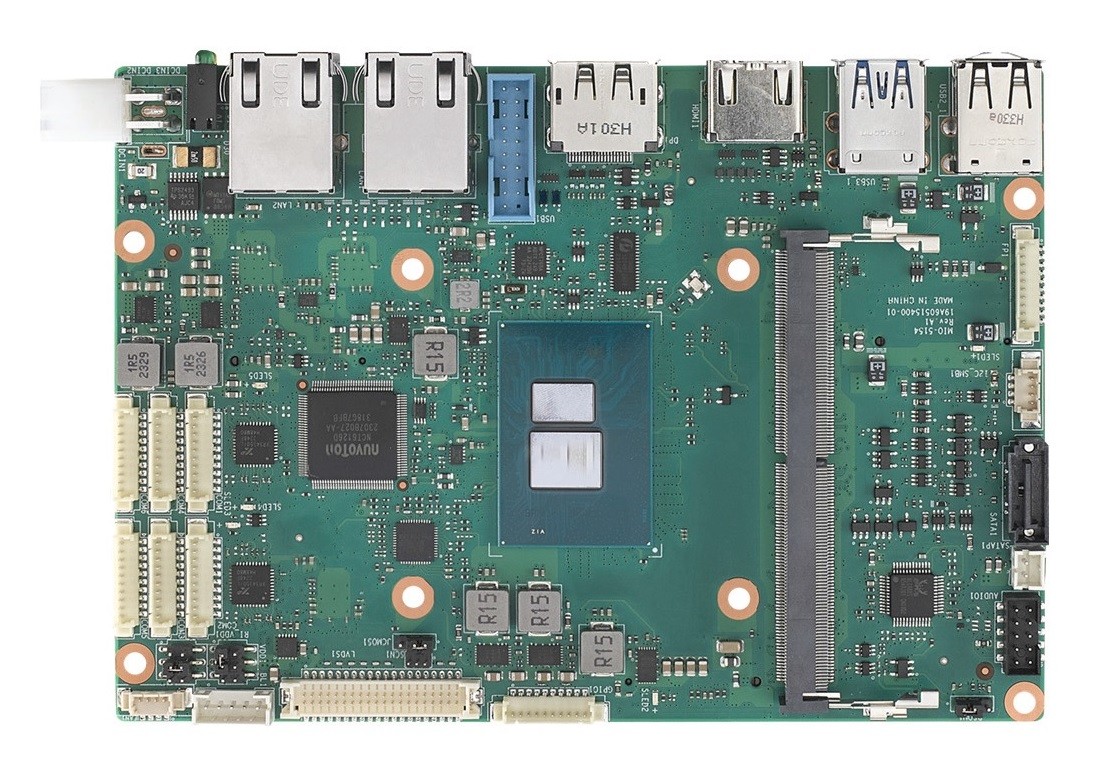

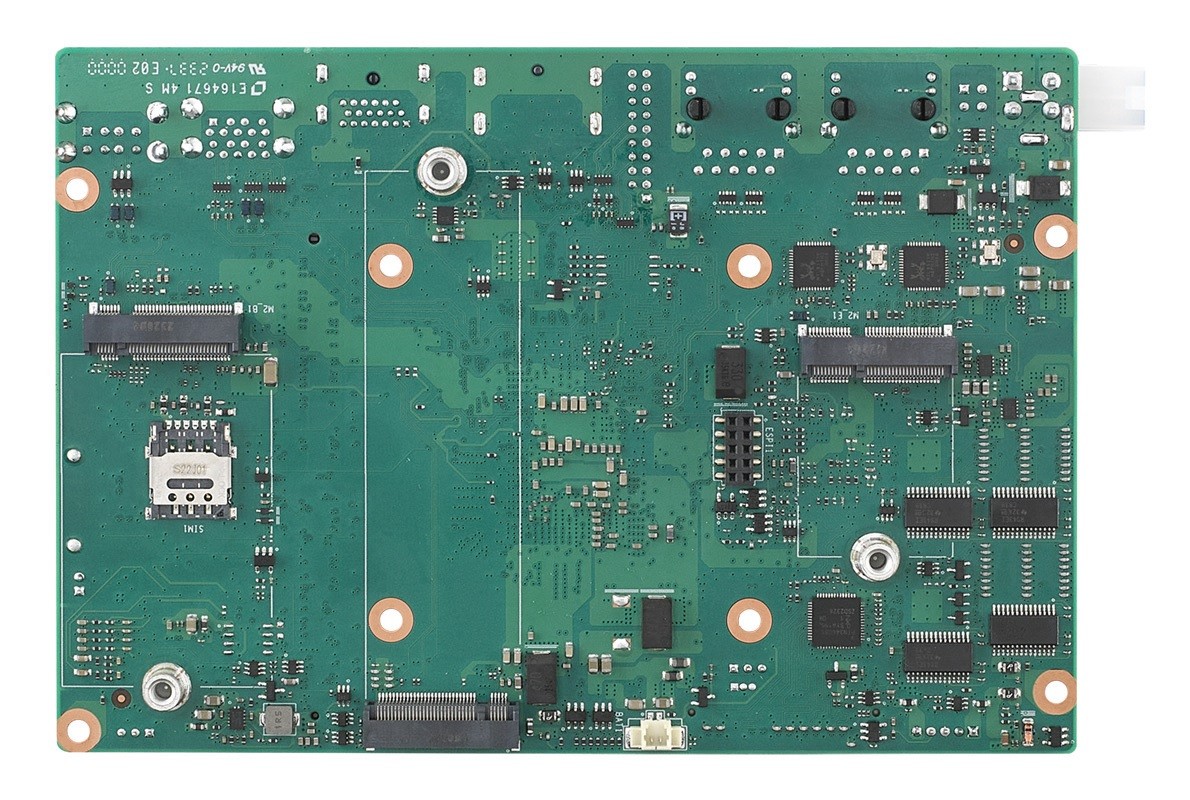

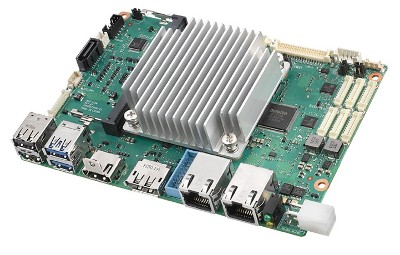

Basic Module: Advantech MIO-5154
| General information | ||||
| SKU / Item Number | MIO-5154 | |||
| Product Basic Data | ||||
| Manufacturer | Advantech | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | Intel Alder Lake | |||
| Number | Intel Core i3-N305, Intel N50, Intel N97 | |||
| CPU cores | 2 Pce, 4 Pce, 8 Pce | |||
| Threads | 8 Pce, - | |||
| Socket | BGA 1264 | |||
| Max Turbo Frequency | 3,4 GHz, 3,6 GHz, 3,8 GHz | |||
| Cache | 6 MB | |||
| Thermal Design Power (TDP) | 6 W, 12 W, 15 W | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Structure | 262-pin SO-DIMM DDR5 | ||
| DIMM Type | Unbuffered SO-DIMM | |||
| Frequency | 4800 MHz | |||
| Slots | 1 Pce | |||
| Maximum expansion | 16 GB | |||
| ECC (Error-Correcting Code) | not supported | |||
| BIOS | AMI UEFI 256 Mbit SPI | |||
| I/O controller | Controller 1 | I/O controller | Nuvoton NCT6126D | |
| Graphics | ||||
| Processor | Intel UHD Graphics | |||
| Screens (Multi-display) | 3 displays | |||
| HDMI | Maximum resolution | 4096 x 2160 at 60 Hz | ||
| Version | 2.0 | |||
| DisplayPort | Maximum resolution | 4096 x 2304 at 60 Hz | ||
| Version | 1.4A | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Bits | 24-bit | |||
| Bridge | NXP PTN3460 | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), USB 2.0 | |||
| Supported dimensions | 2230 | |||
| Slot 2 | Key ID | B | ||
| Interface | PCIe ×1 (Gen 3), SATA III | |||
| Supported dimensions | 2280 | |||
| Slot 3 | Key ID | B | ||
| Interface | 4G/LTE, 5G / Storage Module, USB 2.0, USB 3.2 Gen 1 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B, E | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | M.2 | |||
| Audio | ||||
| Chipset | Realtek ALC888S-VD2-GR | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8111K-CG (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

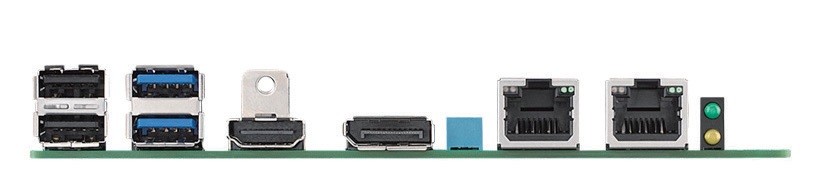

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DisplayPort | 1 Pce, - | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 2.0 | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| Internal I/O | ||||
| USB | USB 3.0 | Ports (2.54 mm pitch) | 2 Pce, - | |
| Serial | RS-232 | Ports (Special Connection) | 3 Pce, 4 Pce | |
| RS-232 / 422 / 485 | Ports (Special Connection) | 1 Pce, 2 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS (Low Voltage Differential Signaling) | Dual channel | |||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Mic-In | 1 Pce | |||
| Serial ATA | SATA R3.0 (6 Gbit/s, 600 MB/s) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 65535 seconds) | |||
| Safety | ||||
| Trusted Platform Module (TPM) | Intel PTT (like TPM 2.0) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | 4-pin connector (vertical) | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Windows | Windows 10 (64-bit) | is supported | ||
| Linux | Distribution | Ubuntu 22.04 | ||
| Supported OS | Linux, Windows | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | 0° to 60°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 95%, non-condensing | ||
| Storage | 0 to 95%, non-condensing | |||
| Dimensions | Form factor | 3.5" | ||
| Width | 146 mm | |||
| Deep | 102 mm | |||
| Vibration | Vibration | 3G, 10 to 500 Hz | ||
| Weight | 145 g | |||
| Status indicators | Storage | 1 Pce | ||
| Power | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | EN 61000-4-2 (Electrostatic Discharge) | |||
| RoHS compliant | Yes | |||
