2.5" Mainboards
// 2.5" Industrial Mainboards
// NXP i.MX 8M Quad Plus
// SoC (System on a Chip)
// 3 GB
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 16 GB eMMC
// Power Supply DC 12 to 24V
// 12V
Sales only to business customers.
Delivery time: upon request

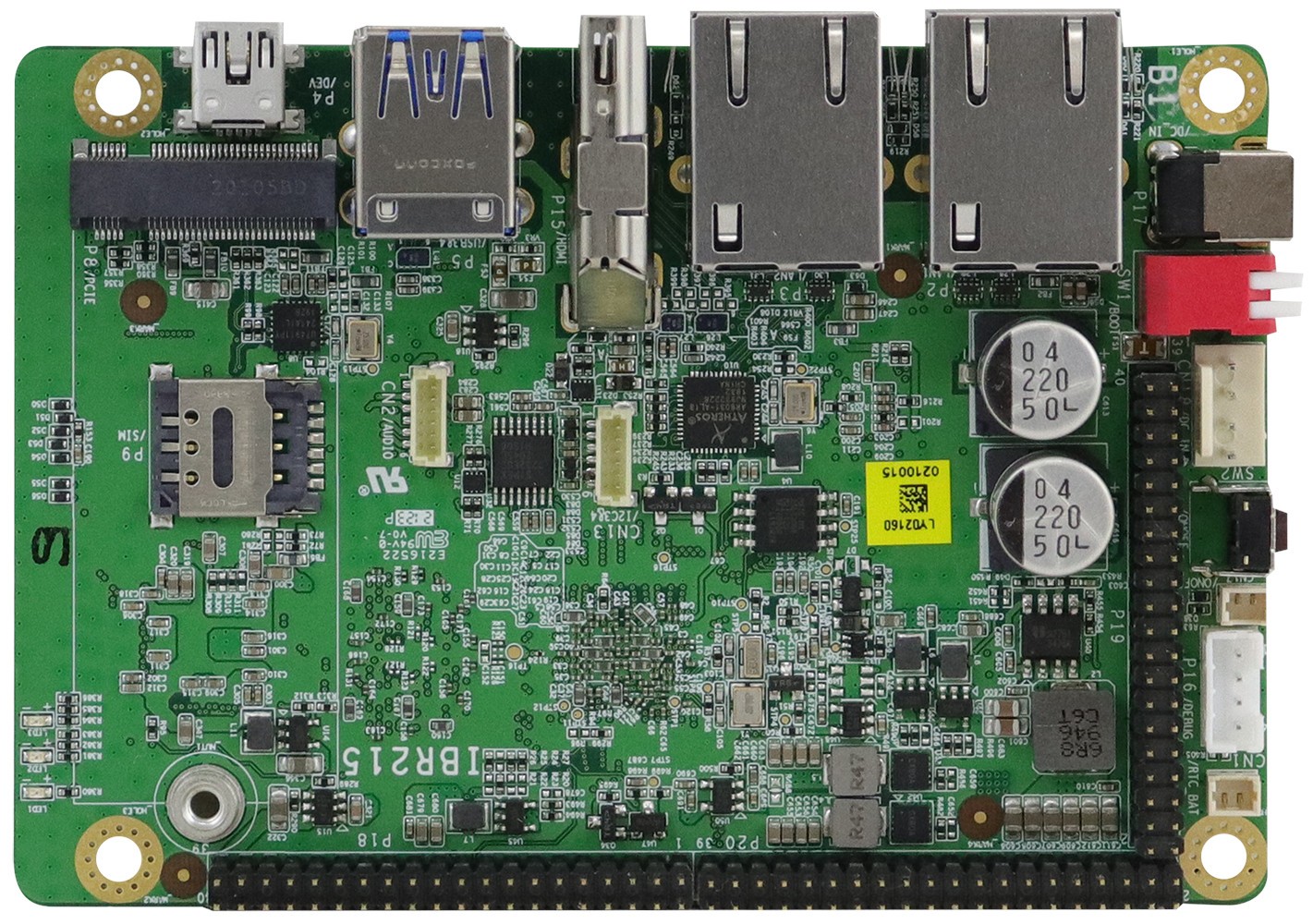

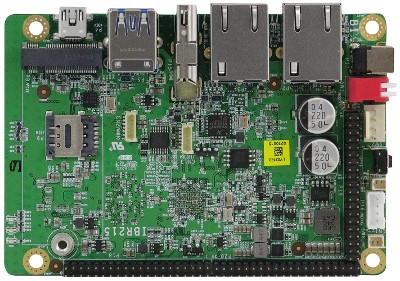

Basic Module: IBASE IBR215-Q316I
| General information | ||||
| SKU / Item Number | IBR215-Q316I | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | ARM Cortex-A53 | ||
| Number | NXP i.MX 8M Quad Plus | |||
| CPU cores | 4 Pce | |||
| Base frequency | 1,6 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Internal memory | 3 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 16 GB | |||
| Graphics | ||||
| Performance feature | Support | OpenCL 1.2, OpenGL 3.1, Vulkan 1.1.1, Vulkan 1.2.131, Vulkan, OpenCL 1.2 FP | ||
| Hardware decoding | AVC / H.264, HEVC / H.265, VP 8, VP 9 | |||
| HW encoding | AVC / H.264, HEVC / H.265 | |||
| HDMI | Version | 1.4 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 5G / Storage Module | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B | |||
| SIM | Form Factor (Slot) | Nano SIM | ||

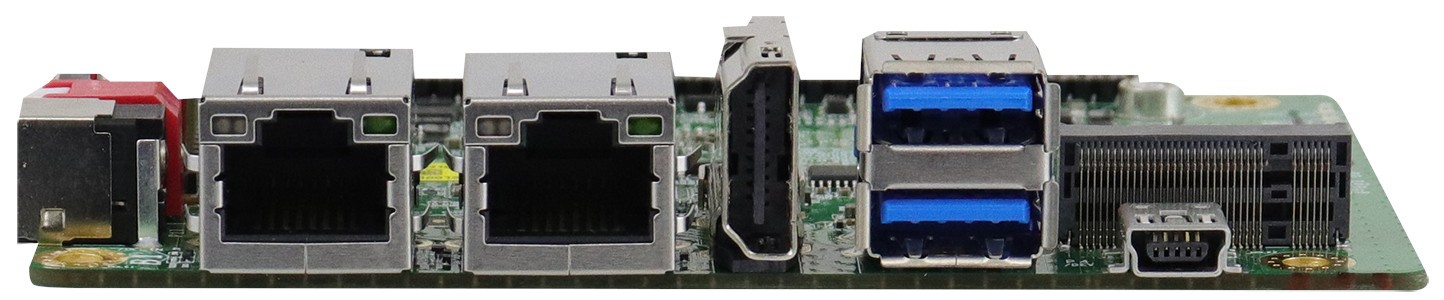

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.0 | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| Digital I/O | Bits | 4-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 2 Pce | |||
| Audio | Line-in | 1 Pce | ||
| Line Out | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Range | 12 to 24V | |
| Connector | DC Power Jack | |||
| DC | Range | 12V | ||
| Connector | 4-pin connector (horizontal) | |||
| Power supply - Input | DC: 12–24V, 12V | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 3.0 | ||
| Android | Release | 11 | ||
| Supported OS | Linux, Android | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 65°C | ||
| Storage | -40°C to 65°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | 2.5" | ||
| Width | 72 mm | |||
| Deep | 105 mm | |||
| Controls | Power | 1 Pce | ||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
