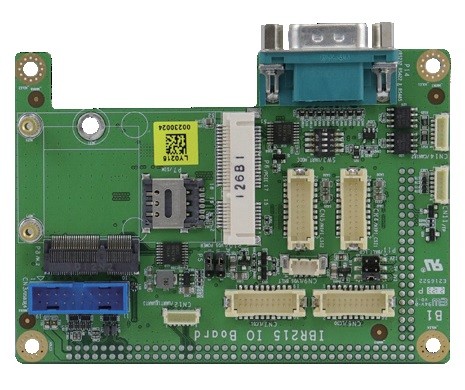

IBASE IBR215-IO

2.5" Mainboards

PRODUCT FEATURES

// 2.5" Industrial Mainboards
// 2 x USB (internal)
// 1 x Seriell I/O
// 1 x Mini-PCIe

Prices and delivery times are visible to registered and logged-in customers. New customers can request this information without obligation.

Sales only to business customers.
Delivery time: upon request

Basic Module: IBASE IBR215-IO

General information
	SKU / Item Number			IBR215-IO
Product Basic Data
	Manufacturer			IBASE
Extension
	Mini-PCIe	Full installation depth	Quantity	1 Pce
			USB support	Yes
	PCIe Interfaces			1x Mini-PCIe
	M.2	Slot 1	Key ID	E
			Interface	SDIO, UART, WiFi + Bluetooth
			Supported dimensions	2230
		M.2 Key IDs		E
	SIM	Form Factor (Slot)		Nano SIM
External I/O
	CAN bus	piece		2 Pce
		Protocol		CAN FD
Externe I/O (Rear Panel)
	Serial	RS-232 / 422 / 485	DB-9	1 Pce
Internal I/O
	USB	USB 3.0	Ports (2.54 mm pitch)	2 Pce
	Serial	RS-232	Ports (2.00 mm pitch)	1 Pce
	Display	LVDS (Low Voltage Differential Signaling)		Dual channel
		LVDS connectors		1 Pce
	I²C (Inter-Integrated Circuit)			1 Pce
	Image Capture Interfaces	Camera Input 1	MIPI-CSI (Camera Serial Interface)	2 Pce
Mechanical / Environment
	Temperature	Operation		-40°C to 65°C
		Storage		-40°C to 65°C
	Relative humidity	Operation		10 to 90%, non-condensing
		Storage		10 to 90%, non-condensing
	Dimensions	Form factor		2.5"
		Width		72 mm
		Deep		100 mm
Certificates / Conformities
	CE			Yes
	FCC	Class B		Yes
	RoHS compliant			Yes
