2.5" Mainboards
// 2.5" Industrial Mainboards
// NXP i.MX 6DualLite
// 1 GB
// LVDS
// 1 x G-LAN (Back side)
// 2 x USB (Back side)
// 2 x USB (internal)
// 1 x Seriell I/O
// 4 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 12V
Sales only to business customers.
Delivery time: upon request

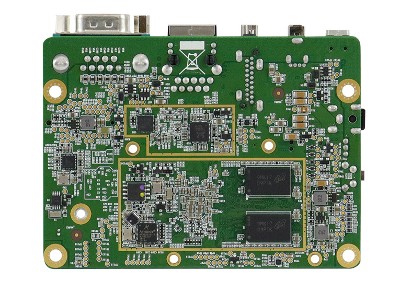

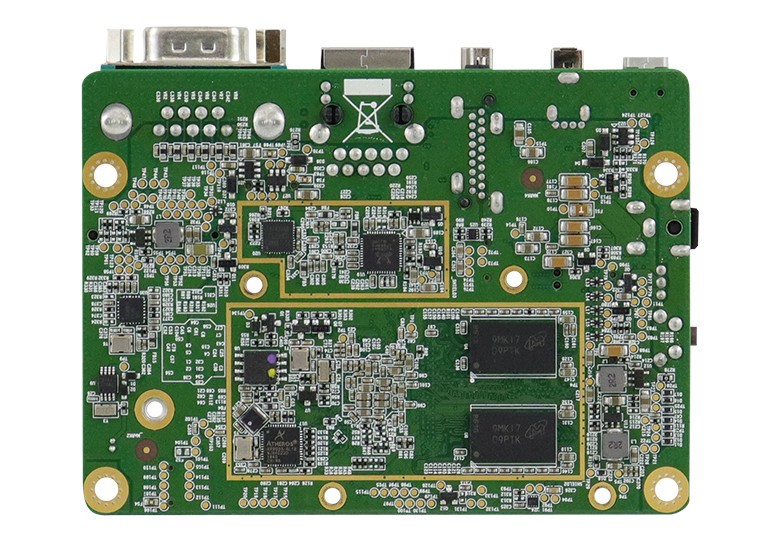

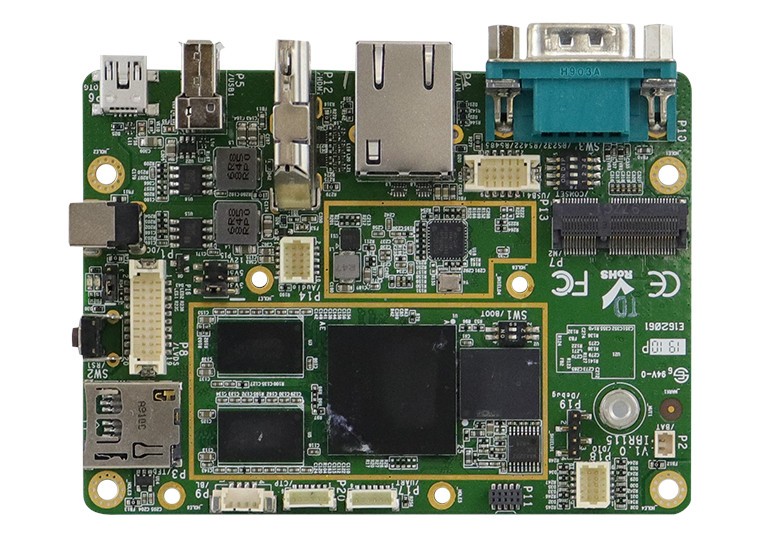

Basic Module: IBASE IBR115
| General information | ||||
| SKU / Item Number | IBR115 | |||
| Product Basic Data | ||||
| Manufacturer | IBASE | |||
| System | ||||
| Processor | Series | ARM Cortex-A9 | ||
| Number | NXP i.MX 6DualLite | |||
| CPU cores | 2 Pce | |||
| Base frequency | 1 GHz | |||
| Memory | Memory Type | DDR3 | ||
| Internal memory | 1 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 4 GB | ||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 4 GB | |||
| Graphics | ||||
| Processor | Vivante GC | |||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1366 x 768 at 60 Hz | ||
| Bits | 24-bit | |||
| Extension | ||||
| M.2 | Slot 1 | Key ID | E | |
| Interface | PCIe ×1 (Gen 3), SDIO, UART, USB 2.0, WiFi + Bluetooth | |||
| Supported dimensions | 2230 | |||
| M.2 Key IDs | E | |||
| Storage | Micro SD | |||

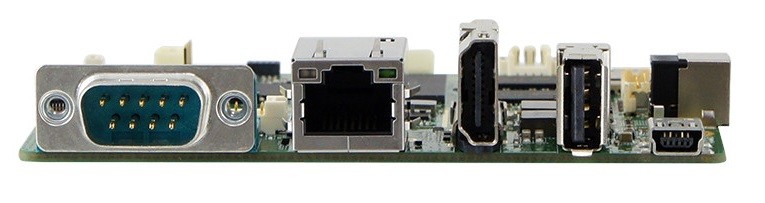

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 1 Pce | ||
| Serial | RS-232 / 422 / 485 | DB-9 | 1 Pce | |
| USB | USB 2.0 | 1 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| Display | LVDS (Low Voltage Differential Signaling) | Single channel | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 3 Pce | ||
| Audio | Connector | 2.00 mm pitch | ||
| Line-in | 1 Pce | |||
| Line Out | 1 Pce | |||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 12V | |||
| Connector | DC Power Jack | |||
| Power supply - Input | DC: 12V | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 2.5 | ||
| Android | Release | 6 | ||
| Supported OS | Linux, Android | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 10 to 90%, non-condensing | ||
| Storage | 10 to 90%, non-condensing | |||
| Dimensions | Form factor | 2.5" | ||
| Width | 72 mm | |||
| Deep | 100 mm | |||
| Height | 15 mm | |||
| Controls | Reset | 1 Pce | ||
| Status indicators | Power | 1 Pce | ||
| Wi-Fi | 1 Pce | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| RoHS compliant | Yes | |||
We are happy to advise you personally.
