2.5" Mainboards
// 2.5" Industrial Mainboards
// NXP MIMX9352CVVXMAB
// SoC (System on a Chip)
// 2 GB
// LVDS
// 2 x G-LAN (Back side)
// 3 x USB (Back side)
// 2 x USB (internal)
// 2 x Seriell I/O
// 16 GB eMMC
// Digital I/O (8-Bit)
// Power Supply DC 9 to 36V
Please configure your desired product.
Standard Configuration
Custom Configuration
Sales only to business customers.
Delivery time: upon request

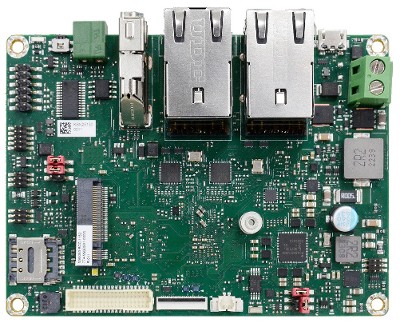

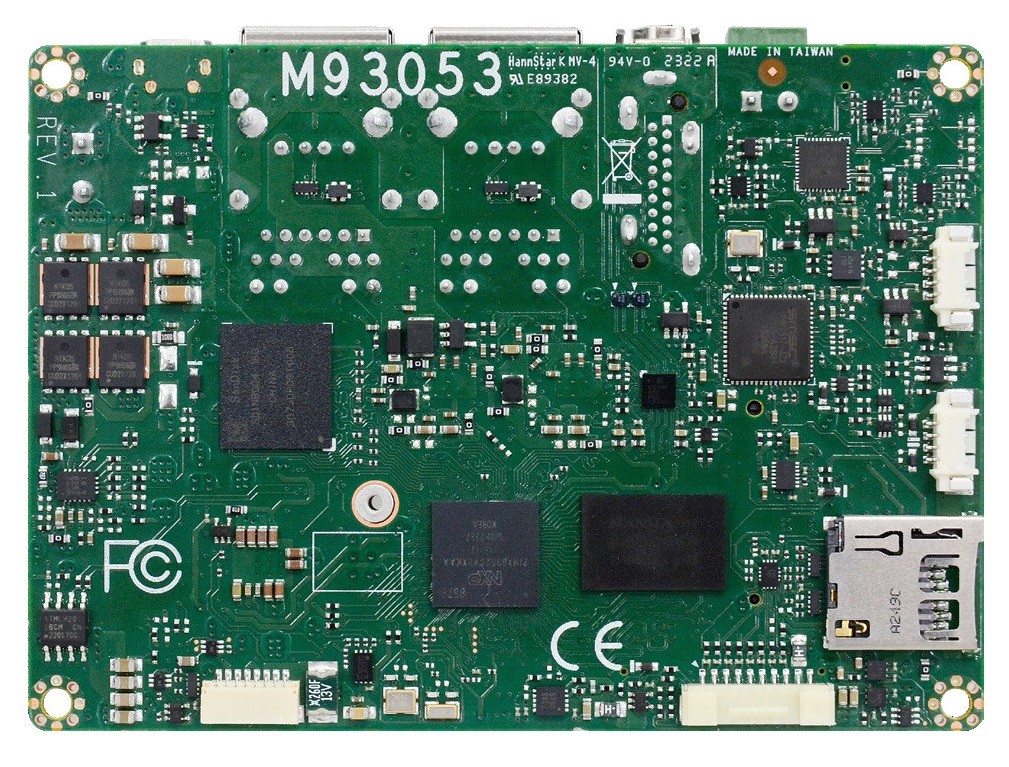

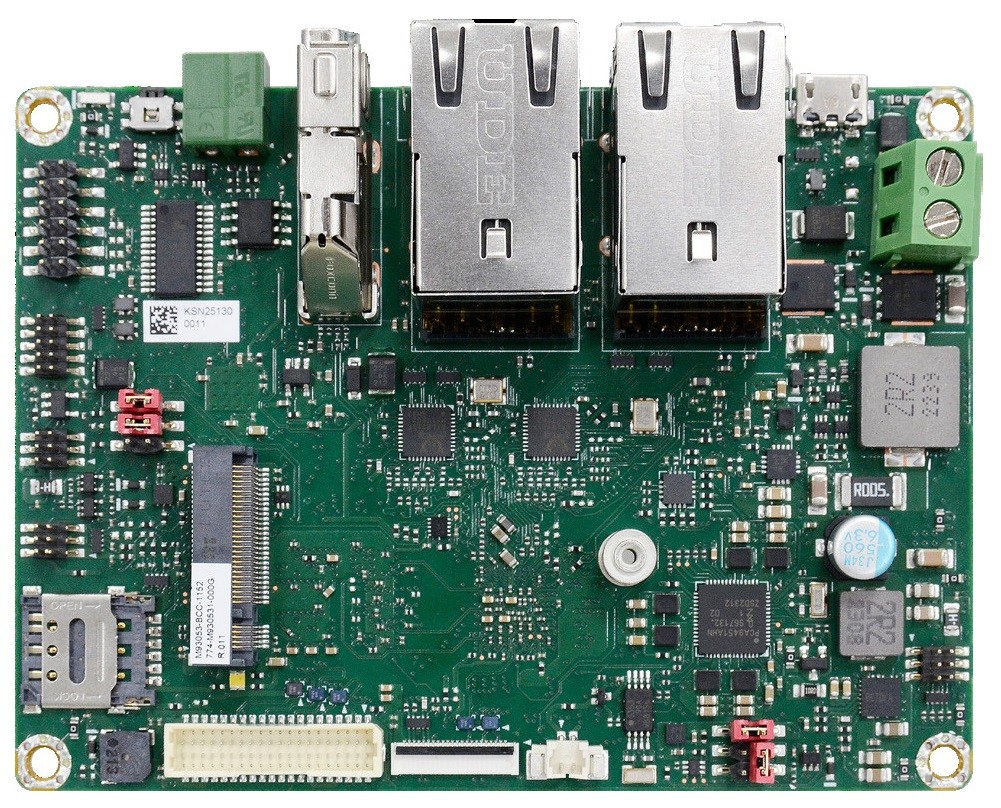

Basic Module: DFI M93053
| General information | ||||
| SKU / Item Number | M93053 | |||
| Product Basic Data | ||||
| Manufacturer | DFI | |||
| Product ID | 770-M930531-000G, 770-M930531-100G | |||
| System | ||||
| Processor | Vertical Segment | Embedded | ||
| Series | NXP i.MX 93 | |||
| Number | NXP MIMX9352CVVXMAB | |||
| CPU cores | 2 Pce | |||
| Base frequency | 1,7 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 4 GB | |||
| Internal memory | 2 GB | |||
| Storage | Embedded MultiMedia Card (eMMC) | 16 GB | ||
| eMMC version | 5.1 | |||
| Power supply - Input | Embedded MultiMedia Card (eMMC) 16 GB | |||
| Graphics | ||||
| HDMI | Maximum resolution | 1920 x 1080 at 60 Hz | ||
| Version | 1.4 | |||
| LVDS (Low Voltage Differential Signaling) | Maximum resolution | 1366 x 768 at 60 Hz | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, USB 2.0 | |||
| Supported dimensions | 3042 | |||
| M.2 Key IDs | B | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Storage | Micro SD (external) | |||
| Network | ||||
| G-LAN | Controller | Chipset | Realtek RTL8211E (10/100/1000 Mbps) | |
| Quantity | 2 Pce | |||
| Network | 2x G-LAN | |||

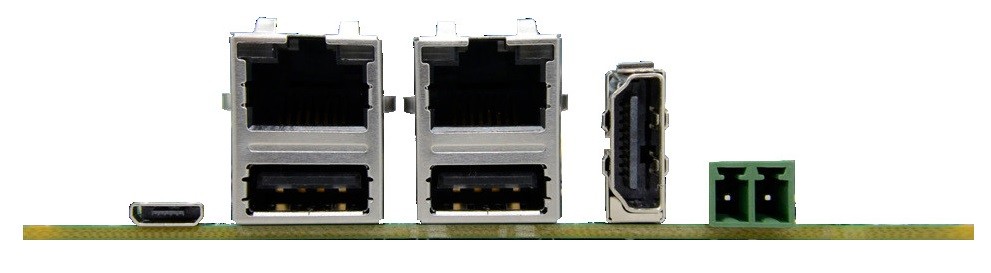

| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| Ethernet | RJ-45 | 2 Pce | ||
| Serial | RS-485 | 2-pin terminal connector | 1 Pce | |
| USB | USB 2.0 | 2 Pce | ||
| USB On-The-Go (USB OTG) | 1 Pce | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| Serial | RS-232 | Ports (2.00 mm pitch) | 1 Pce | |
| RS-232 / 422 / 485 | Ports (2.00 mm pitch) | 1 Pce | ||
| Display | LCD / Inverter Power | Yes | ||
| LVDS connectors | 1 Pce | |||
| Digital I/O | Bits | 8-bit | 1 Pce | |
| Serial Peripheral Interface (SPI) | 1 Pce | |||
| I²C (Inter-Integrated Circuit) | 1 Pce | |||
| UART | Tx/Rx | 1 Pce | ||
| JTAG (Joint Test Action Group) | 1 Pce | |||
| Image Capture Interfaces | Camera Input 1 | MIPI-CSI (Camera Serial Interface) | 1 Pce | |
| Connector | 24-pin FCP 0.5 mm | |||
| Lanes | 2 Pce | |||
| CAN bus | Version 2.0B (Interface) | 1 Pce | ||
| Watchdog Timer | ||||
| Watchdog Timer | Yes | |||
| Watchdog timer (interval) | Programmable via software (1 - 255 seconds) | |||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | Yes | |
| Range | 9 to 36V | |||
| Connector | 2-pin terminal connector | |||
| Power supply - Input | DC: 9~36V | |||
| Real-Time Clock (RTC) Battery | CR2032 coin cell battery | |||
| OS / Software | ||||
| Linux | Distribution | Yocto 5.10.104 | ||
| Supported OS | Linux | |||
| Cooling | ||||
| Implementation | Passive | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -5° to 65°C, -40°C to 85°C | ||
| Storage | -40°C to 85°C | |||
| Relative humidity | Operation | 5 to 90%, non-condensing | ||
| Storage | 5 to 90%, non-condensing | |||
| Dimensions | Form factor | 2.5" | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class B | Yes | ||
| Additional certificates / compliance approvals | UKCA | |||
| RoHS compliant | Yes | |||
