2.5" Mainboards
// 2.5" Industrial Mainboards
// Qualcomm QCS6490
// SoC (System on a Chip)
// 8 GB
// 2 x G-LAN (Back side)
// 4 x USB (Back side)
// 2 x USB (internal)
// 4 x Seriell I/O
// Digital I/O (16-Bit)
// Power Supply DC 20V
Sales only to business customers.
Delivery time: upon request

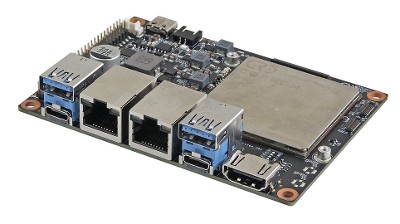

Basic Module: Avalue ACP-Q6490
| General information | ||||
| SKU / Item Number | ACP-Q6490 | |||
| Product Basic Data | ||||
| Manufacturer | Avalue | |||
| System | ||||
| Processor | Number | Qualcomm QCS6490 | ||
| CPU cores | 8 Pce | |||
| Max Turbo Frequency | 2,7 GHz | |||
| Chipset | SoC (System on a Chip) | |||
| Memory | Memory Type | DDR4 | ||
| Maximum expansion | 16 GB | |||
| Internal memory | 8 GB | |||
| Storage | Universal Flash Storage (UFS) | Memory | 128 GB GB | |
| Version | 3.1 | |||
| Graphics | ||||
| Performance | TOPS (INT8) | 12 | ||
| Extension | ||||
| M.2 | Slot 1 | Key ID | B | |
| Interface | 4G/LTE, 5G / Storage Module, USB 3.1 Gen 2 | |||
| Supported dimensions | 3052 | |||
| M.2 Key IDs | B | |||
| Storage | Micro SD (external) | |||
| Network | ||||
| Wireless | Wi-Fi | Protocol | 802.11a/b/g/n/ac/ax | |
| Bluetooth | Type | v5.2 | ||
| Network | Wi-Fi, Bluetooth | |||
| Externe I/O (Rear Panel) | ||||
| Display | HDMI | 1 Pce | ||
| DP USB-C | 1 Pce | |||
| Ethernet | RJ-45 | 2 Pce | ||
| USB | USB 3.1 (Gen 2, Type-C) | 2 Pce | ||
| USB 3.2 (Gen 1) | 2 Pce | |||
| SIM | Quantity | 1 Pce | ||
| Form Factor (Slot) | Nano SIM | |||
| Internal I/O | ||||
| USB | USB 2.0 | Ports (2.00 mm pitch) | 2 Pce | |
| USB 3.2 | Ports (Type-C socket) | 1 Pce | ||
| Serial | RS-232 | Ports (2.00 mm pitch) | 4 Pce | |
| Display | eDP (Embedded DisplayPort) lanes | 2 Pce | ||
| Digital I/O | Bits | 16-bit | 1 Pce | |
| UART | Tx/Rx | 1 Pce | ||
| Image Capture Interfaces | Camera Input 1 | Quantity | 1 Pce | |
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| Camera Input 2 | Quantity | 1 Pce | ||
| Lanes | 4 Pce | |||
| Standard | MIPI CSI-2 | |||
| Audio | Connector | 2.00 mm pitch | ||
| Power Supply | ||||
| Typ (Input) | DC | Wide Range | No | |
| Range | 20V | |||
| Connector | Male connector (screw-in) | |||
| Current | 5 A | |||
| Power supply - Input | DC: 20V | |||
| OS / Software | ||||
| Windows Embedded | Windows 11 IoT | is supported | ||
| Linux | Distribution | Ubuntu 20.04 | ||
| Android | Release | 13 | ||
| Supported OS | Windows Embedded, Linux, Android | |||
| Mechanical / Environment | ||||
| Temperature | Operation | -20°C to 65°C | ||
| Storage | -40°C to 80°C | |||
| Dimensions | Form factor | 2.5" | ||
| Width | 100 mm | |||
| Deep | 72 mm | |||
| Height | 23,7 mm | |||
| Weight | 150 g | |||
| Certificates / Conformities | ||||
| CE | Yes | |||
| FCC | Class A | Yes | ||
| RoHS compliant | Yes | |||
